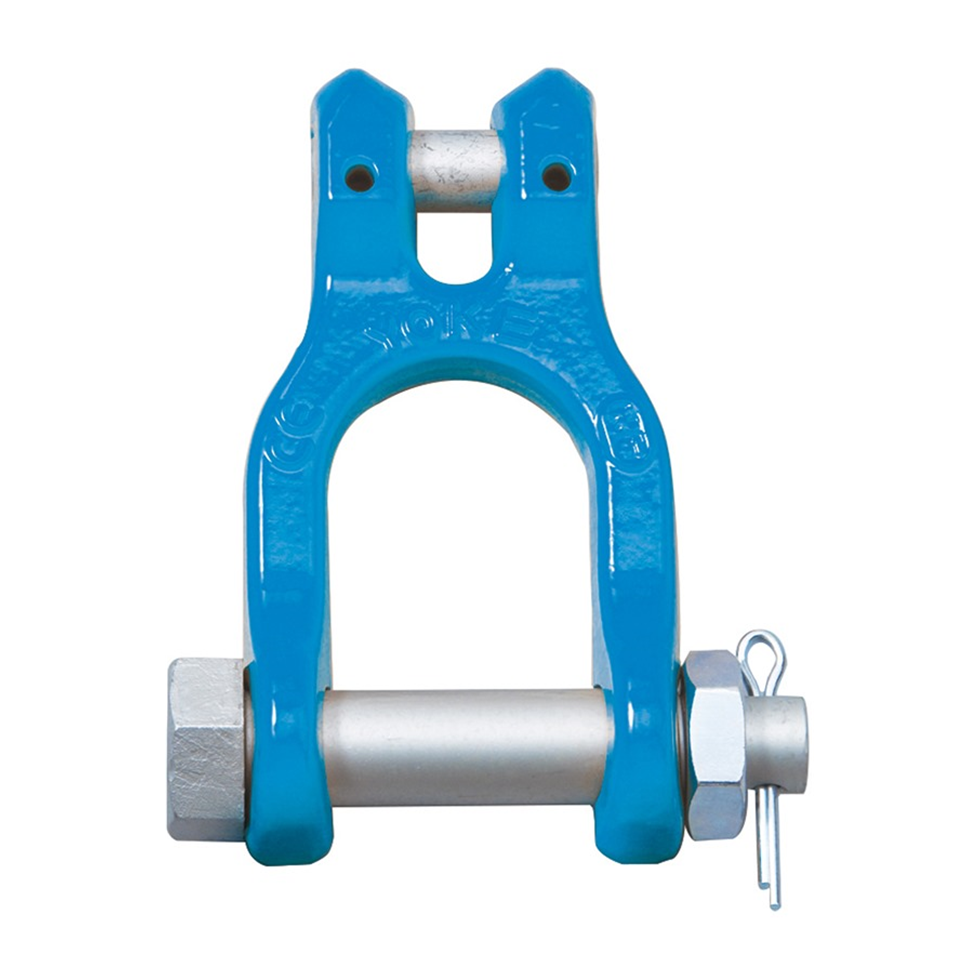

Yoke X-066 G100 Clevis Shackle
Product Code: YOKE-X-066Net Weight (Per Item): 0.8kg
Yoke X-066 G100 Clevis Shackle
To suit G100 Chain from 7/8mm to 16mm diameter
Capacities from 2.5tonne to 10tonne
Fully certified
Main features:-
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with EN 1677- 1 and ASME B30.26
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 4:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature minimum 400°C
- Magnaflux crack detection is performed 100% on each batch
Delivery Information
- This product is supplied directly from our Manufacturer Partner.
- Delivery of this product is 2-3 days from date of order.
