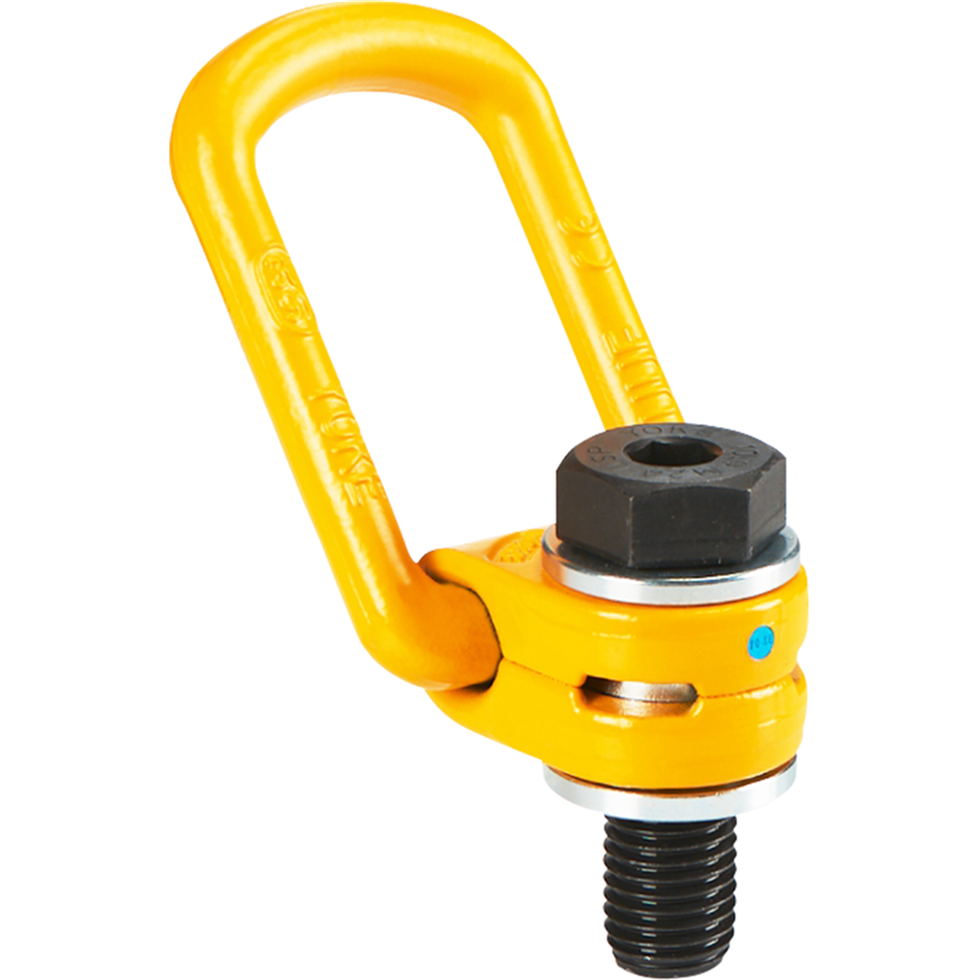

Yoke Swivel Lifting Point Type 211 Metric Thread
Product Code: YOKE-8-211Net Weight (Per Item): 0.3kg
Yoke Swivel Lifting Point Type 211 Metric Thread
- Rotates through 360° and pivots 90°
- Manufactured from alloy steel, quenched and tempered
- Manufactured and tested in accordance with EN1677-1
- Certified by DGUV GS-OA 15-04
- Load rated parts are 100% magnaflux crack detected
- Individual forged parts and cap screw are traceable to Test Certification
- Bolts are Metric thread (ASME / ANSI B18.3.1M)
- Proof tested to 2.5 times the WLL
- Fatigue rated to 1.5 times the WLL
- Design Factor 4 : 1
- All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
- Quick and simple assembly, just a tapped hole is required
- Available in thread sizes from M8 to M48
Lifting Point uses can be as follows:-
- Suited for lifting objects with no obvious attachment points

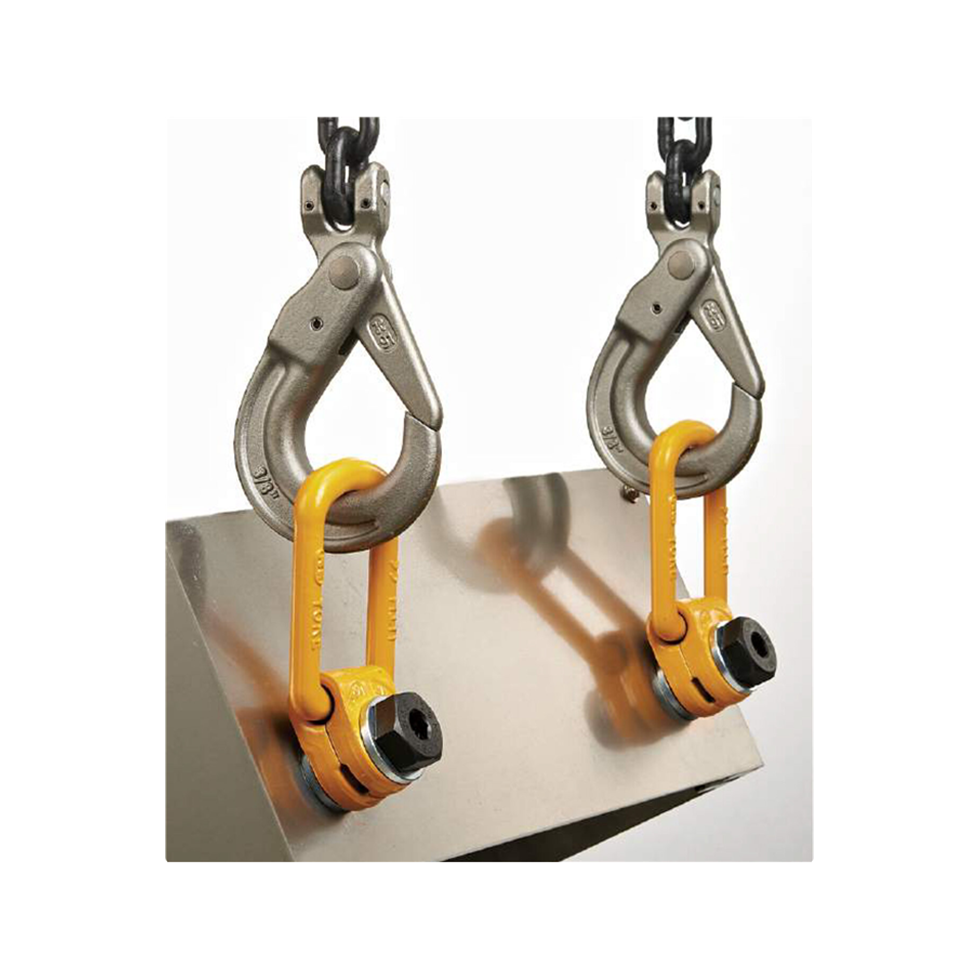

- Mold and die handling
- Pump and valve handling
- Ideal for lashing attachment points
- Suitable for attachment to lifting beams and spreader beams
Please see attached data sheets for dimensions and loading chart
