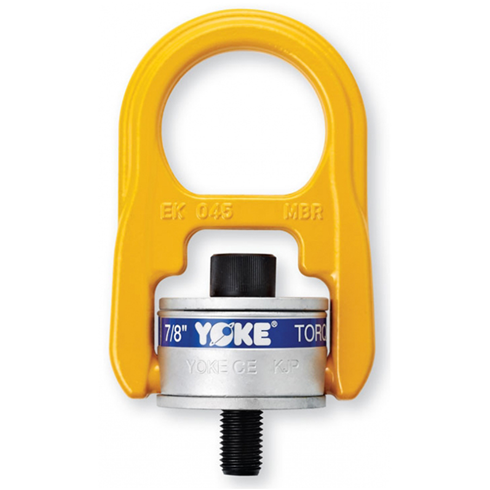

Yoke Swivel Hoist Ring Type 204 UNC Thread

Yoke Swivel Hoist Ring Type 204 UNC Thread with Alloy Steel Washer

• Rotates through 360° and pivot 180°, rated at 100% at 90°angle
• Manufactured from forged alloy steel, quenched and tempered
• Manufactured and tested in accordance with EN1677-1
• Load rated parts are 100% magnaflux crack detected
• Individual forged parts and cap screw are traceable to Test Certification
• Bolt are UNC thread (ASME/ ANSI B18.31M)
• Proof tested to 2.5 times the WLL
• Fatigue rated to 1.5 times the WLL
• Design Factor 5 : 1
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
• Quick and simple assembly, just a tapped hole is required
• Available in thread sizes from 5/16" to 2"

Swivel Hoist Ring uses can be as follows:-

• Heavy duty flexible attachment point
• Suited for lifting objects with no obvious attachment points
• Mold and die handling
• Pump and valve handling

Please see attached data sheet for dimensions and loading chart
