WSS15H 1500kg Light Duty Fully Electric Straddle Leg Stacker 3000mm lift

WSS15H 1500kg Light Duty Fully Electric Straddle Leg Stacker 3000mm lift

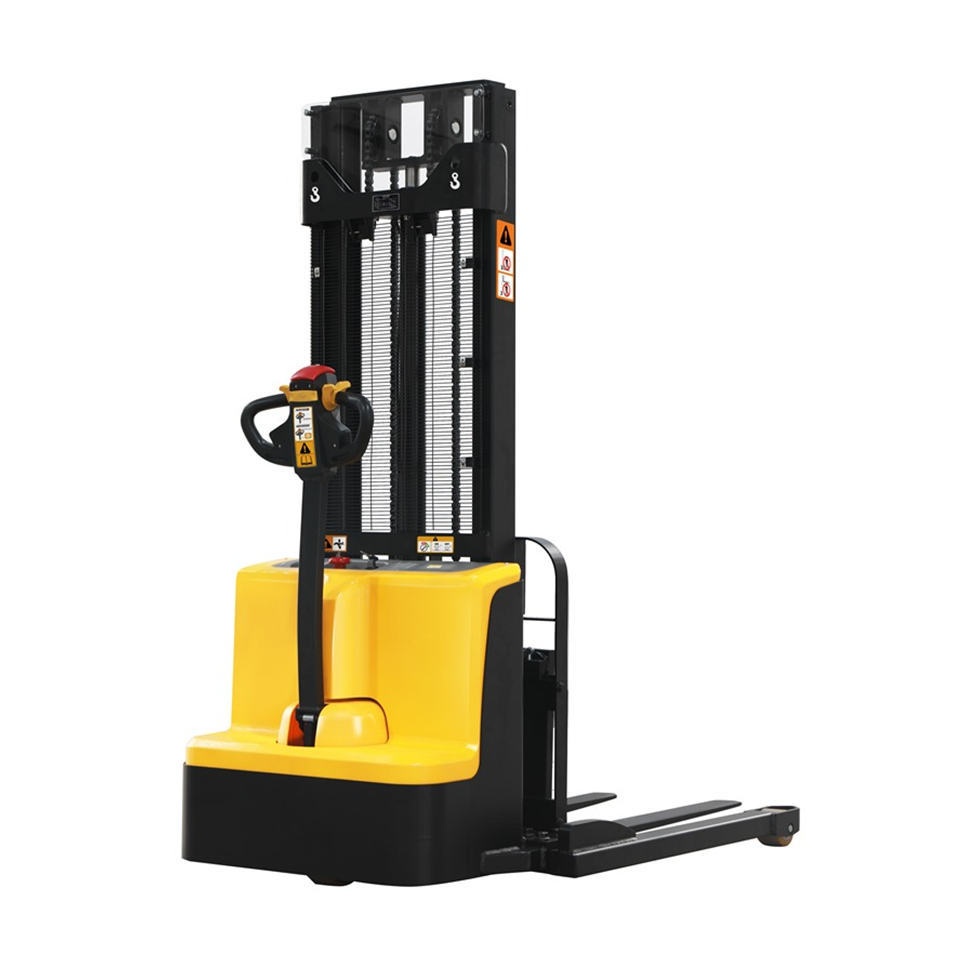

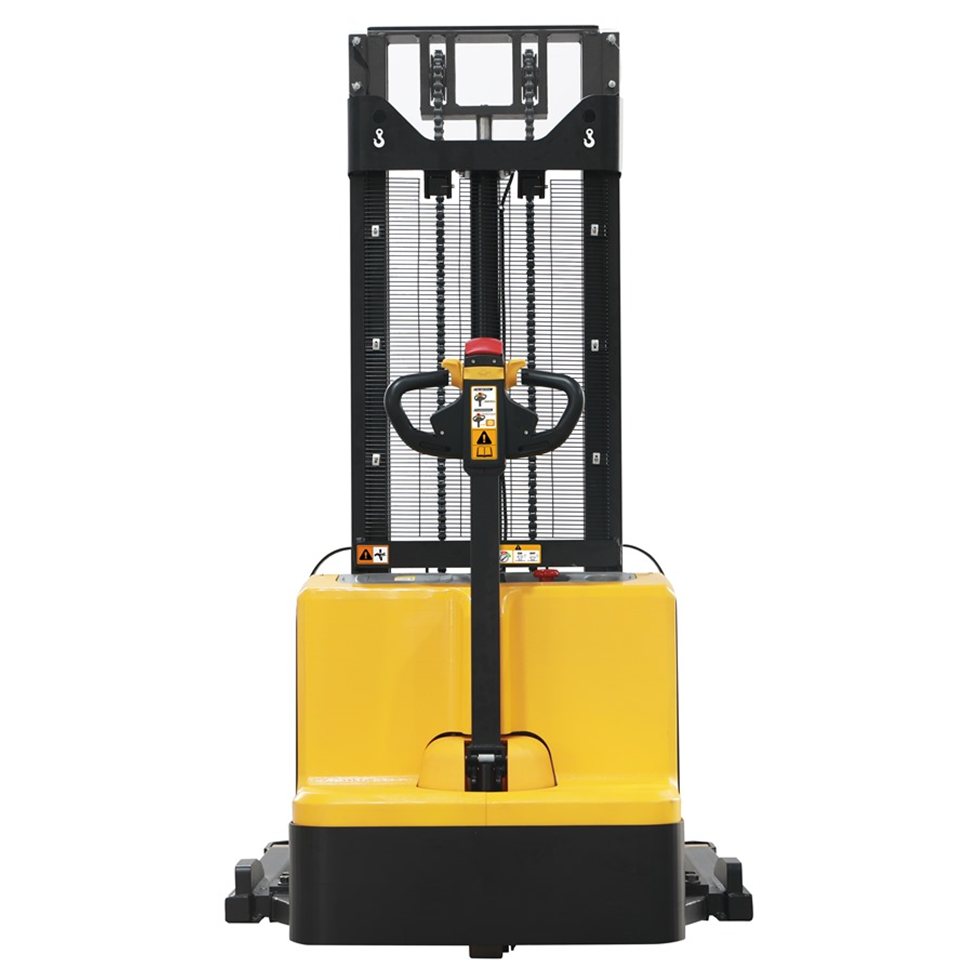

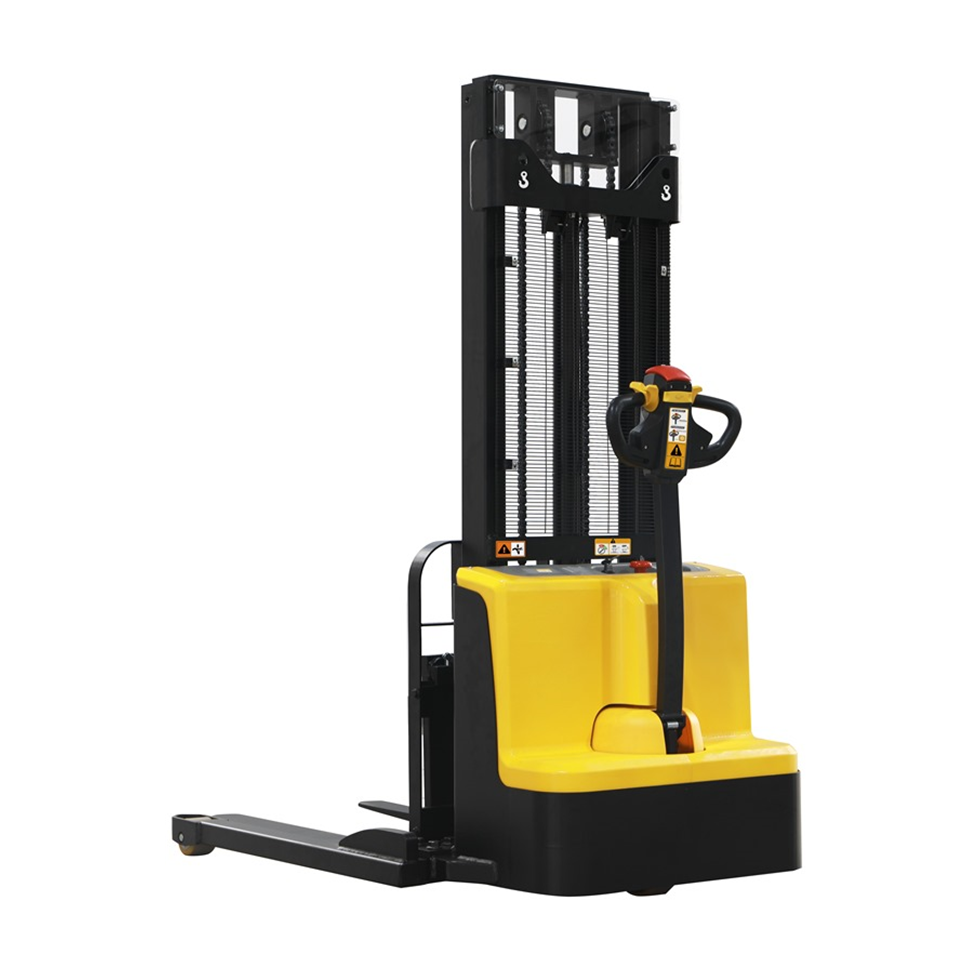

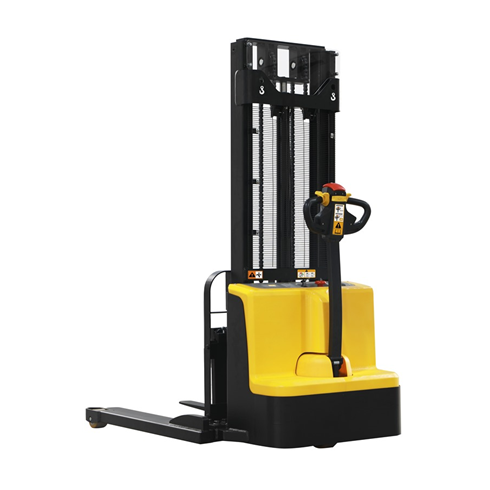

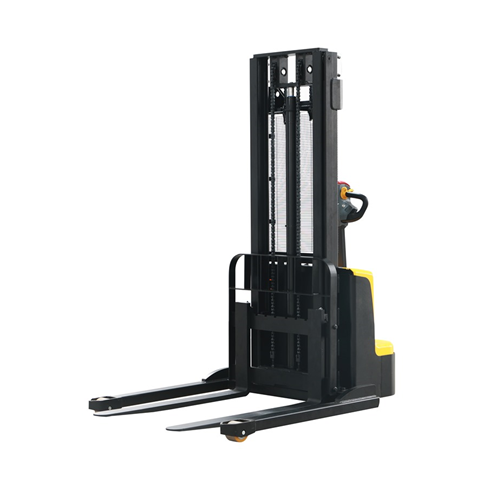

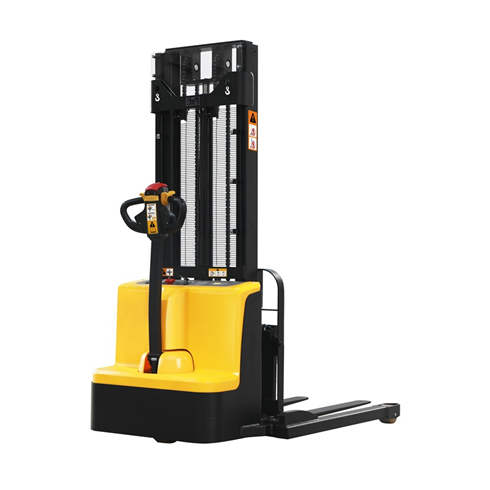

The WSS15H is a fully electric Stacker with a light duty design

The compact and light design is suitable for a variety of low duty applications in warehouses

The Stacker has a duplex mast with a generous 3000mm lifting height

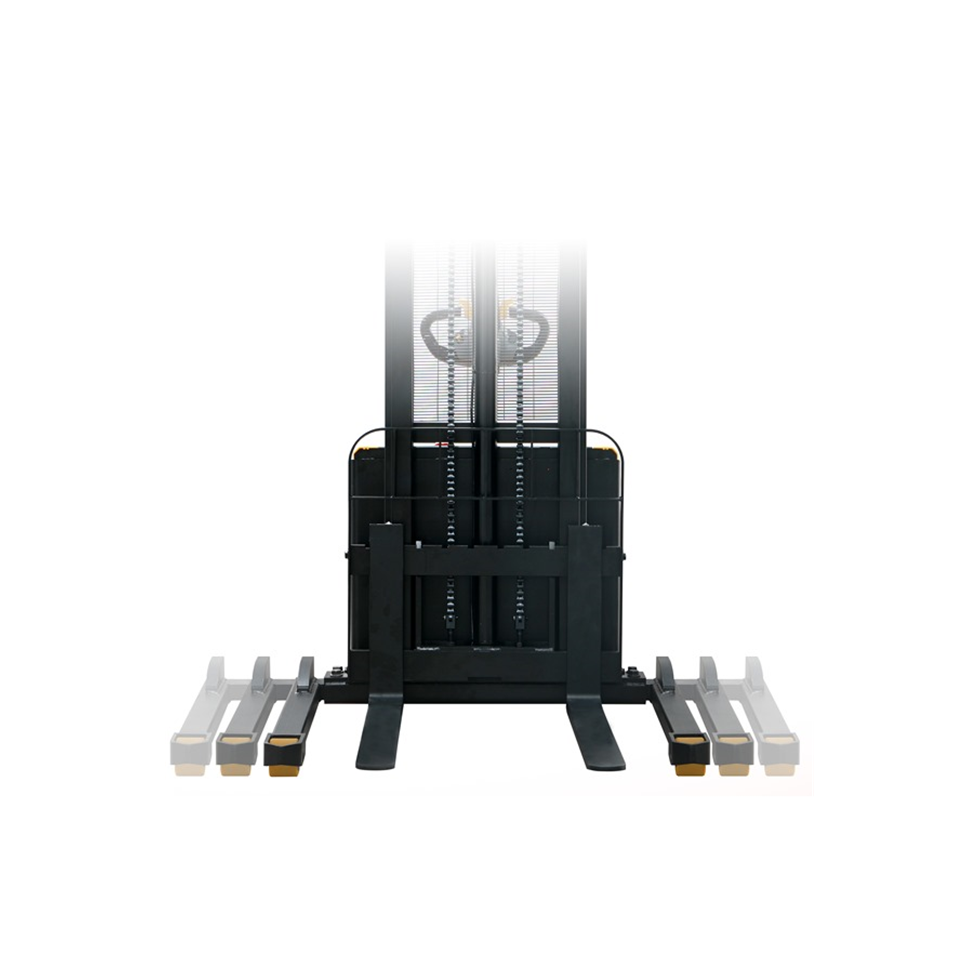

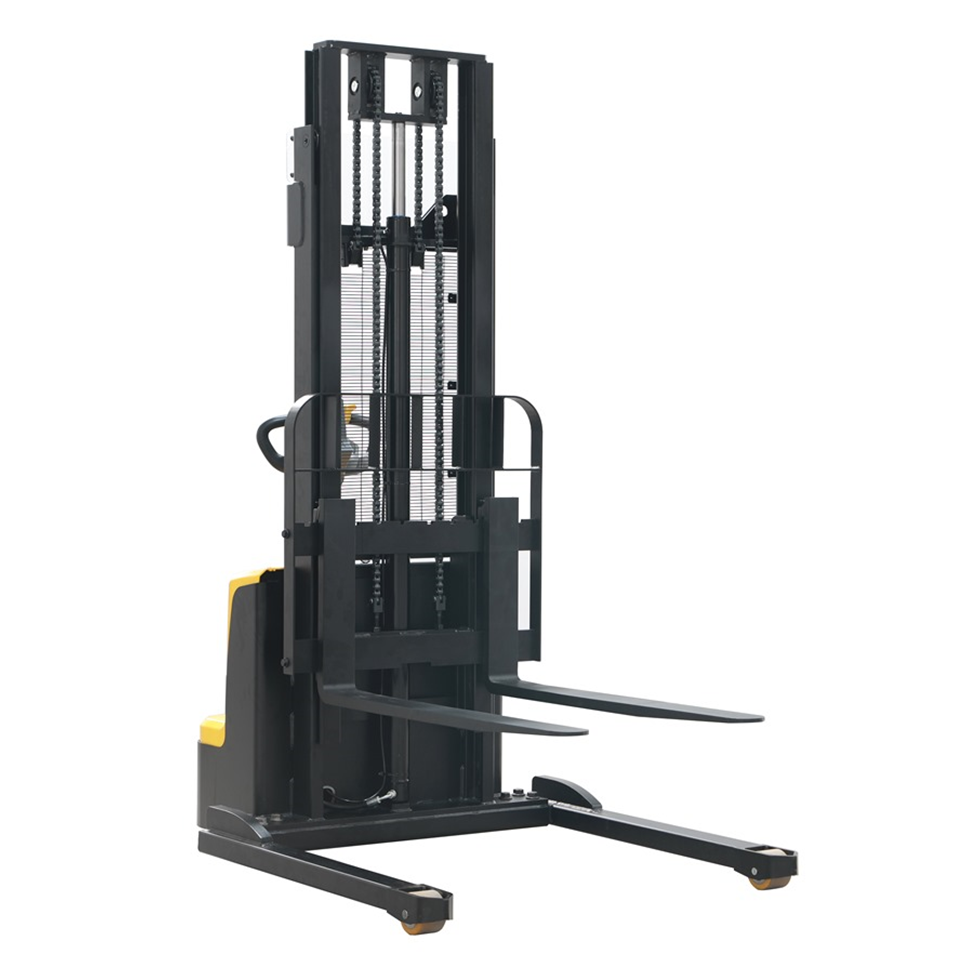

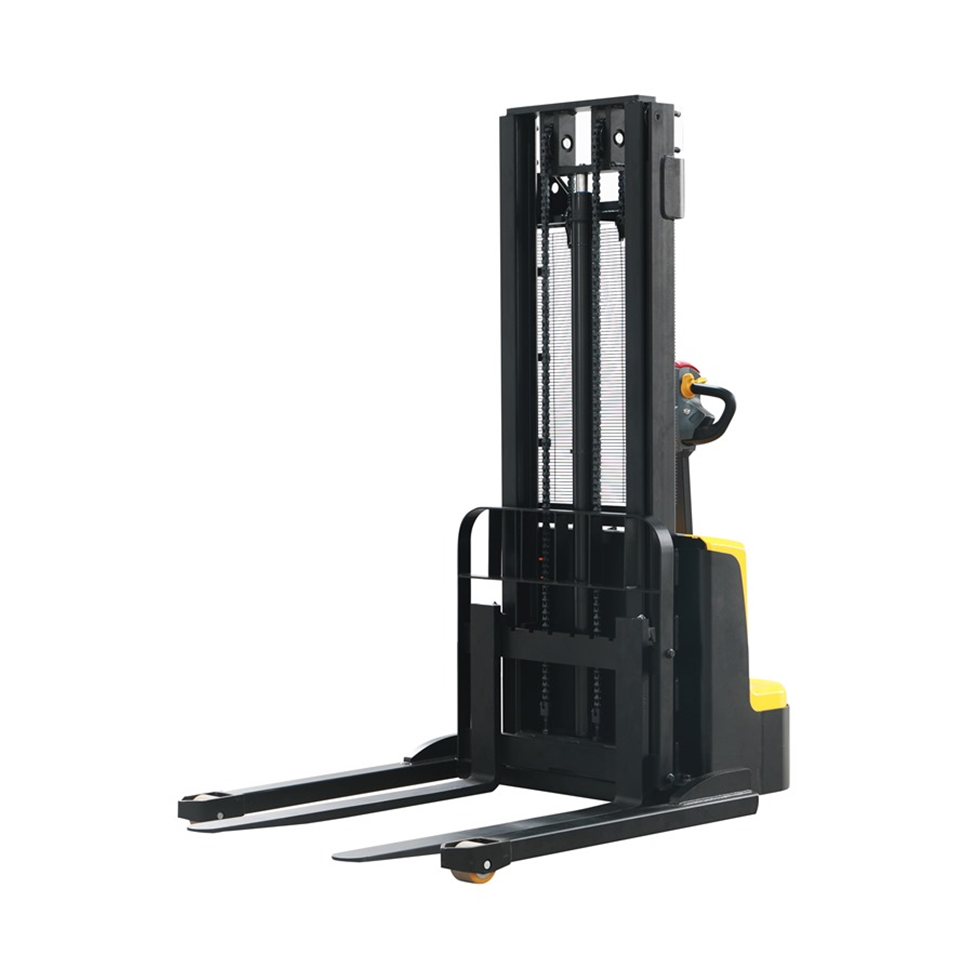

The adjustable straddle leg design accomodates different pallet sizes.  The low silhouette straddle design allows for a lower bottom beam, maximizing storage space in the facility.  The support legs are fixed with three screws per side outside the Truck's body, allowing for easy adjustment to achieve widths of 1150mm, 1290mm and 1430mm

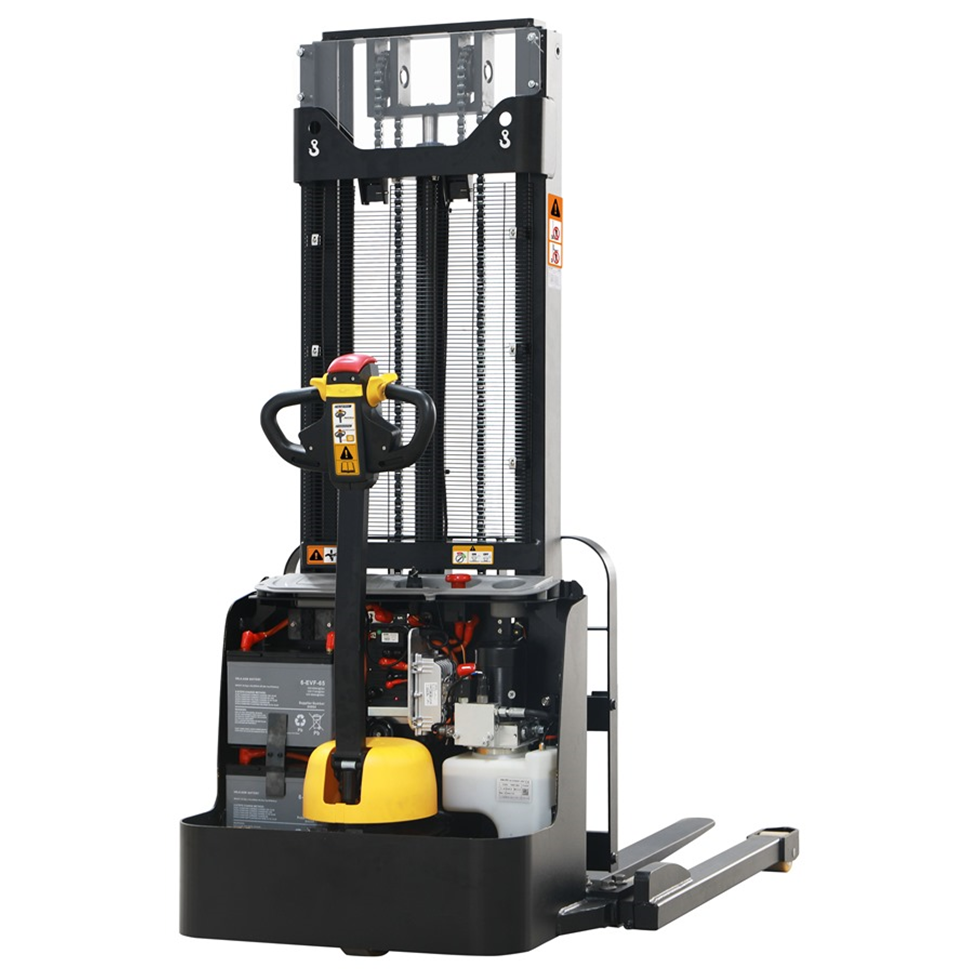

Built-in charger for quick and easy charging

Battery life on full charge is 3hrs when in continous use

Fitted with perspex protection screen

Suitable for Euro pallets

Cannot be used in cold storage or on uneven ground

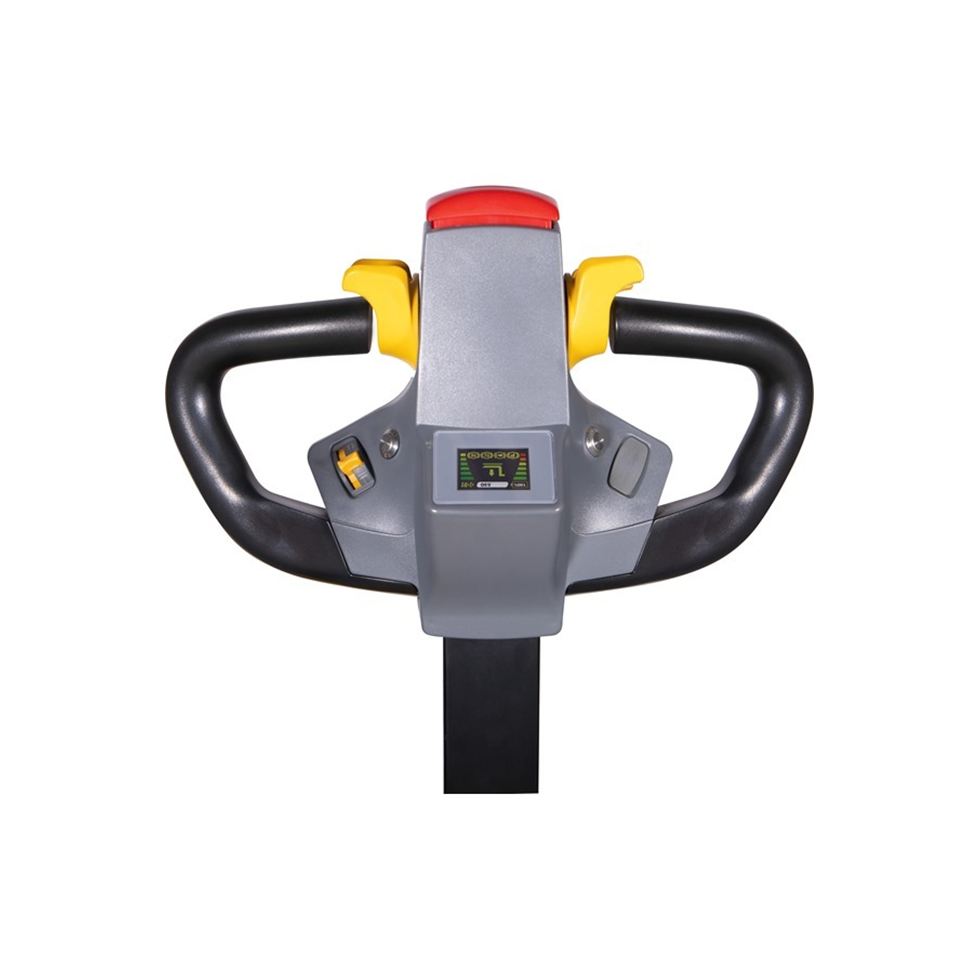

New multifunctional intelligent handle displays the following information:-

• Recharging alert
• Fault code display
• Battery power

Features:-

• Lowered mast height: 2020mm
• Lifting height: 3000mm
• Extended mast height: 3520mm
• Height (lowered): 50mm
• Overall length: 1828mm
• Overall width across chassis: 820mm
• Fork dimensions: 40x100x1070mm
• Width over forks: 200-795mm
• Aisle width for pallets (1000x1200mm): 2290mm
• Aisle width for pallets (800x1200mm): 2217mm
• Minimum turning radius: 1455mm
• Travelling speed (laden): 4km/h
• Travelling speed (unladen): 4.5km/h
• Lifting speed (laden): 0-101mm/s
• Lifting speed (unladed): 0-185mm/s
• Built in 240v charger
• Battery charge time: 7hrs
• Warranty: 12 months
• Weight: 681kg
