Wire Rope Hoist, WLL 500kg, 240volt, 25mtr Lifting Height
Product Code: DUKE-DU500A-240V-25MNet Weight (Per Item): 29kg

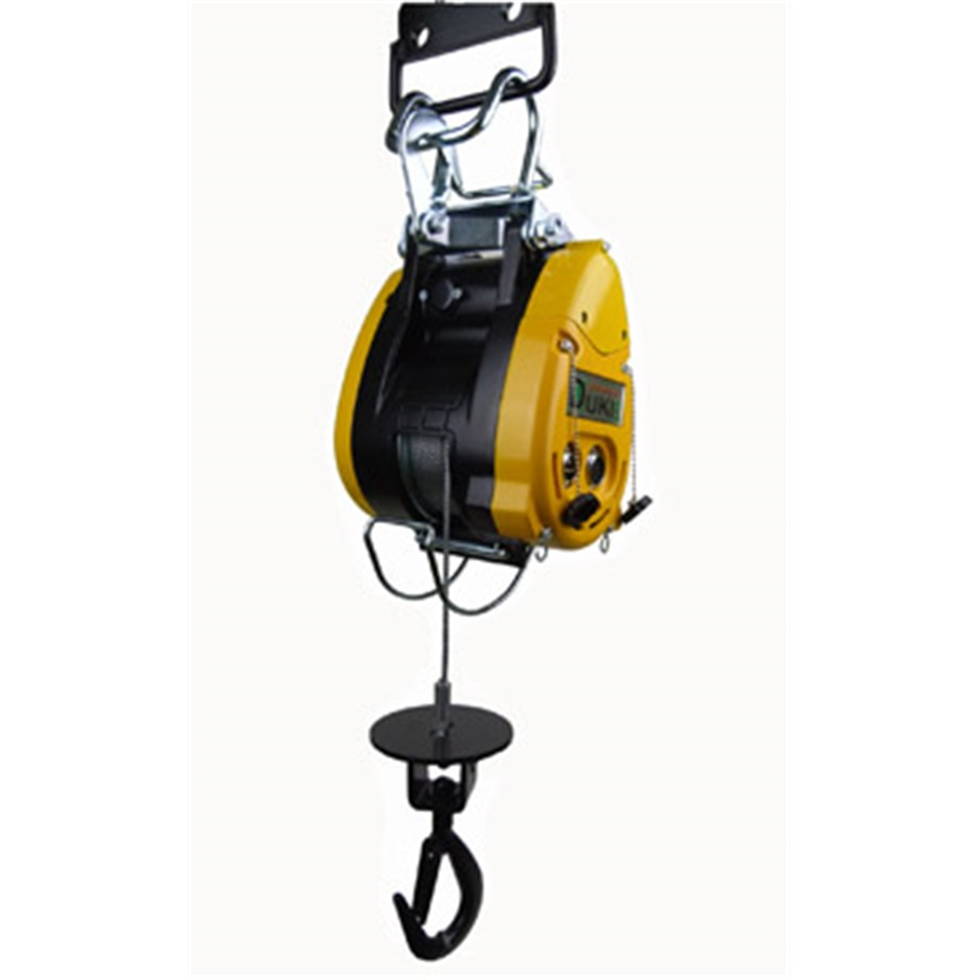

DUKE DU500a 240volt Electric Wire Rope Hoist 25mtr Lifting Height
Suitable for Light Industrial Use
This hoist is light and compact making this an easy hoist to transport and install. The upper attachment is ideal for fitting direct to a scaffold pole or any other suitable rated anchor point
Lower swivel hook has a large opening to accommodate slings etc and is fitted with a safety catch
Ideal for construction applications such as scaffolding and general engineering applications
Upper limit arm protects the hoist from damage
Specifications:-
- Capacity: 500kg
- 240 Volt Single Phase
- Height of lift: 25mtr
- Speed: 11 metres per minute
- Current at rated load (amp): 8
- Pendant Length: 5mtr
- Pendant control with emergency stop
- Rope diameter: 6mm
- Closed headroom: 670mm (when the hook is fully up)
- Jacket available for outside use
- Supplied with power lead and plug
- Manufacturer: Duke Hoist and Winch
IP54 Rated for protection from water and dust ingress
Supplied fully tested and certified
When powering from a generator you will need a 5.4kw Genset
12 months warranty
