Tractel DYNAFOR PRO Wireless Digital Load Monitor with Hand Held Display 1tonne to 100tonne

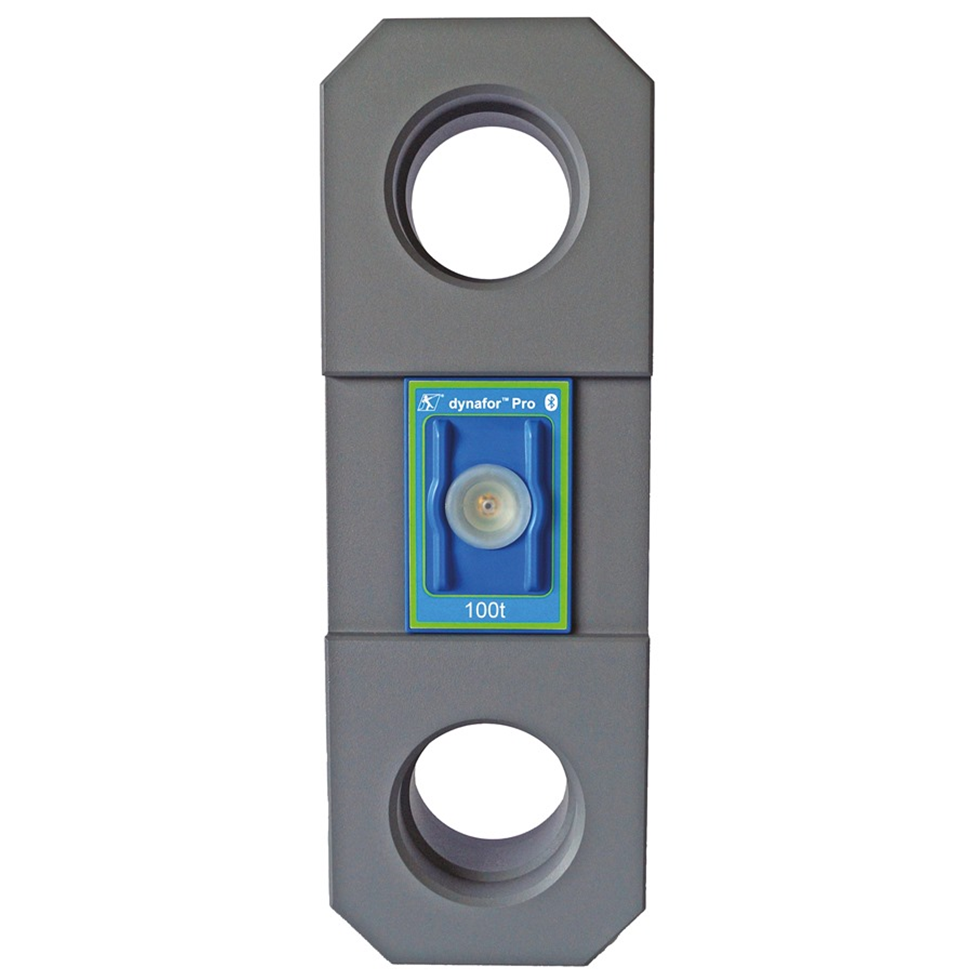

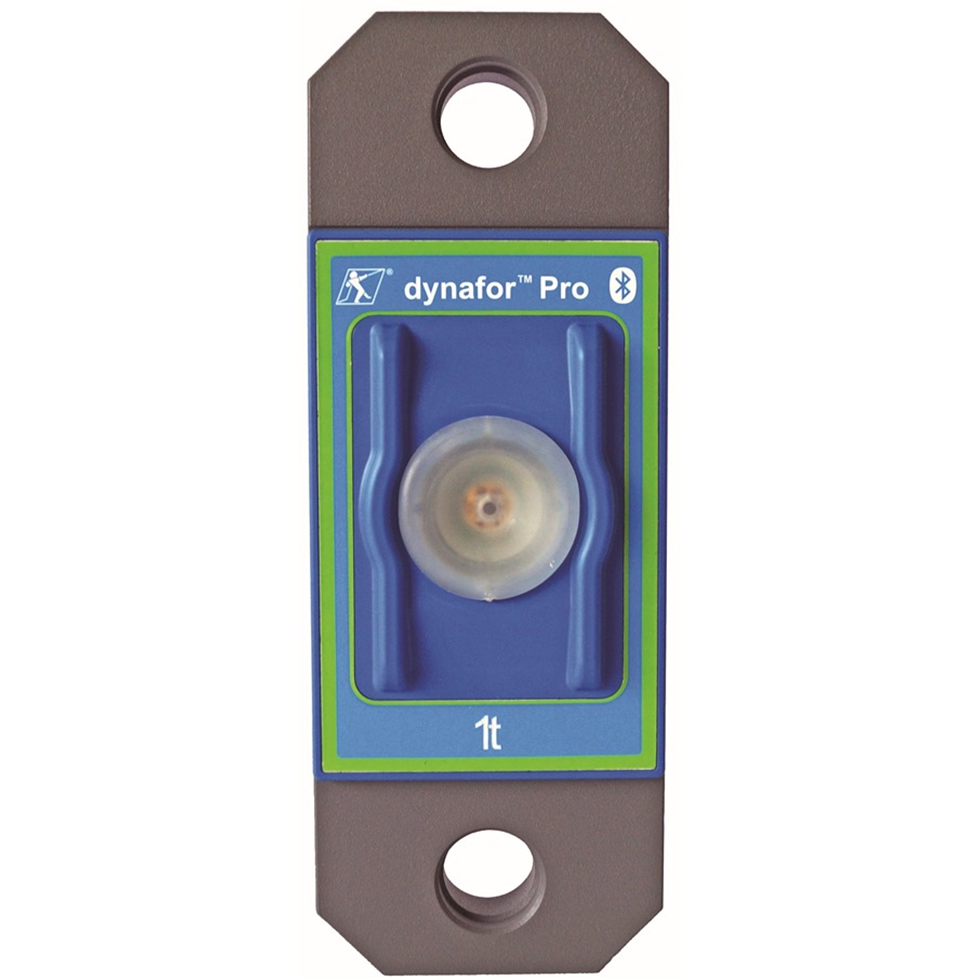

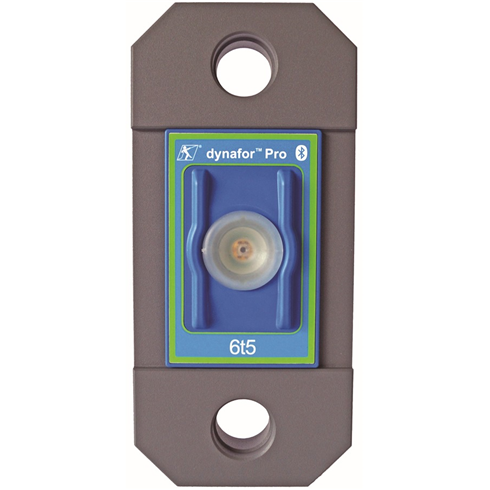

Tractel DYNAFOR PRO Wireless Digital Load Monitor with Hand Held Display

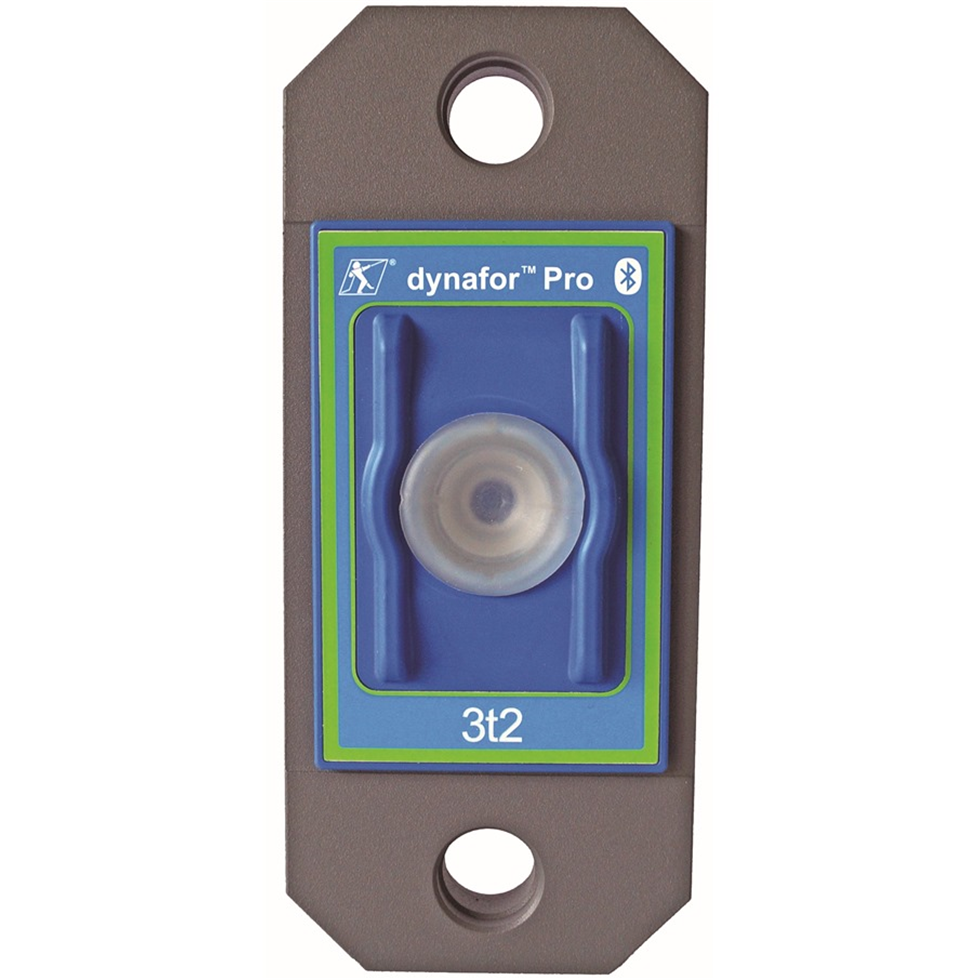

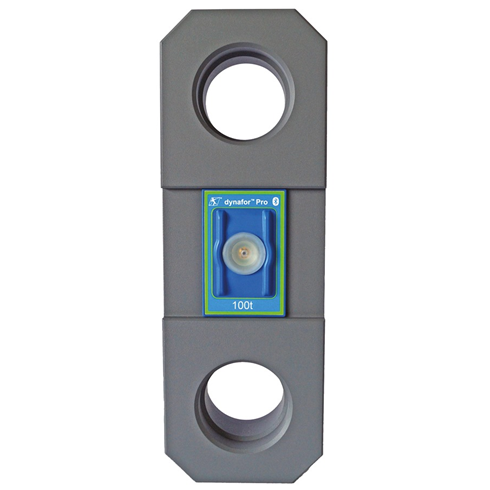

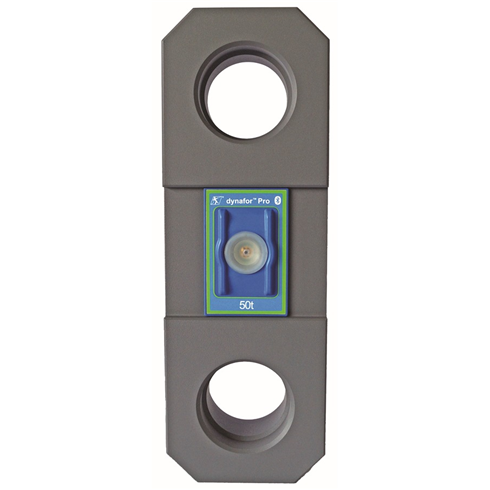

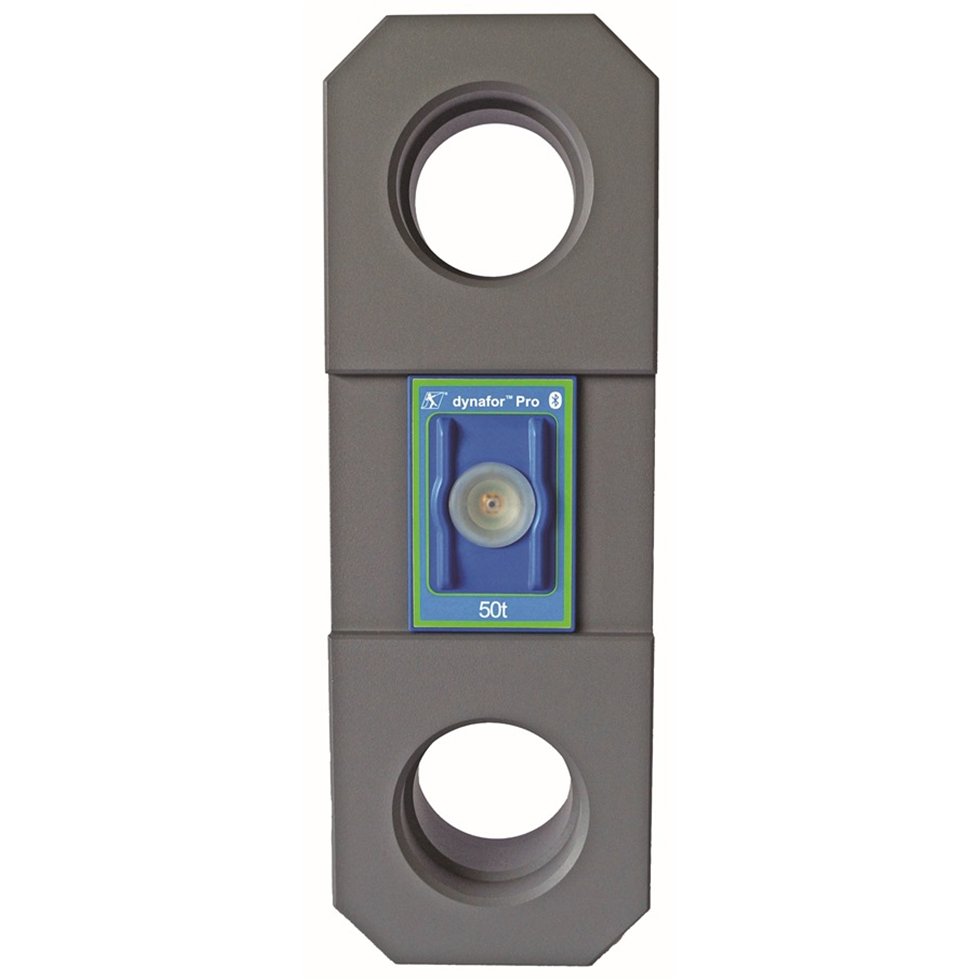

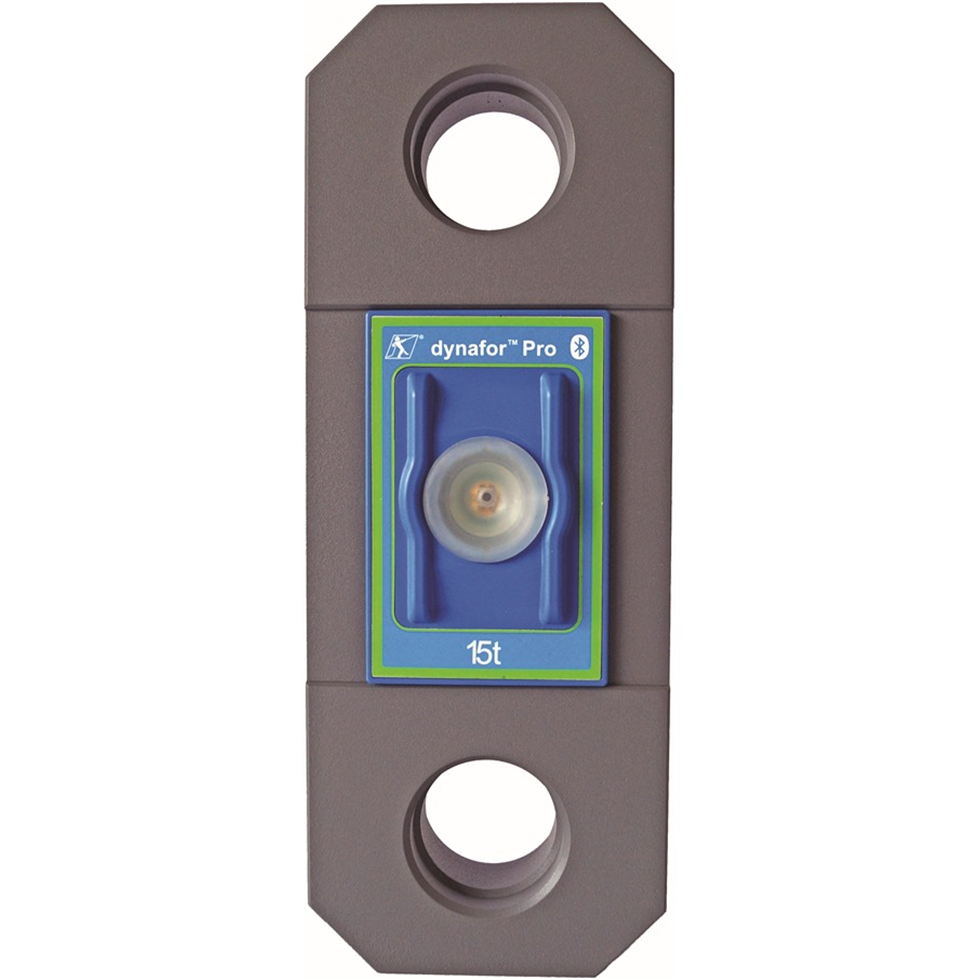

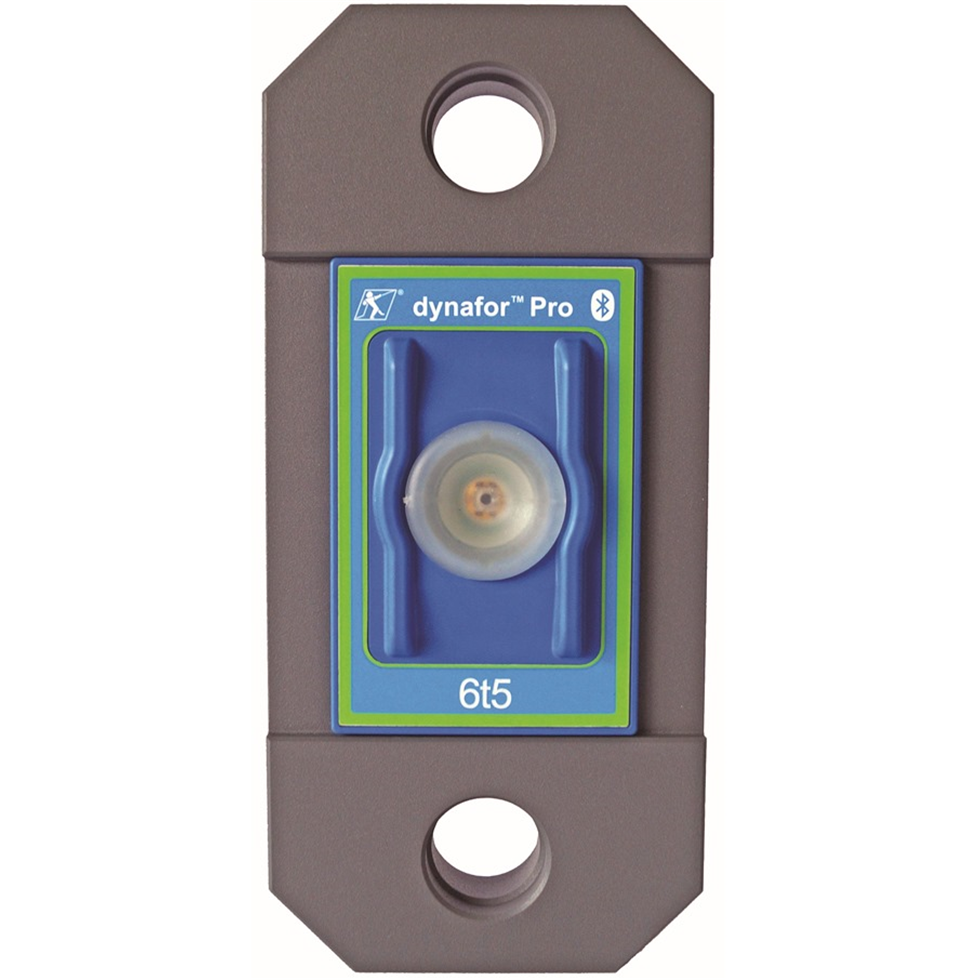

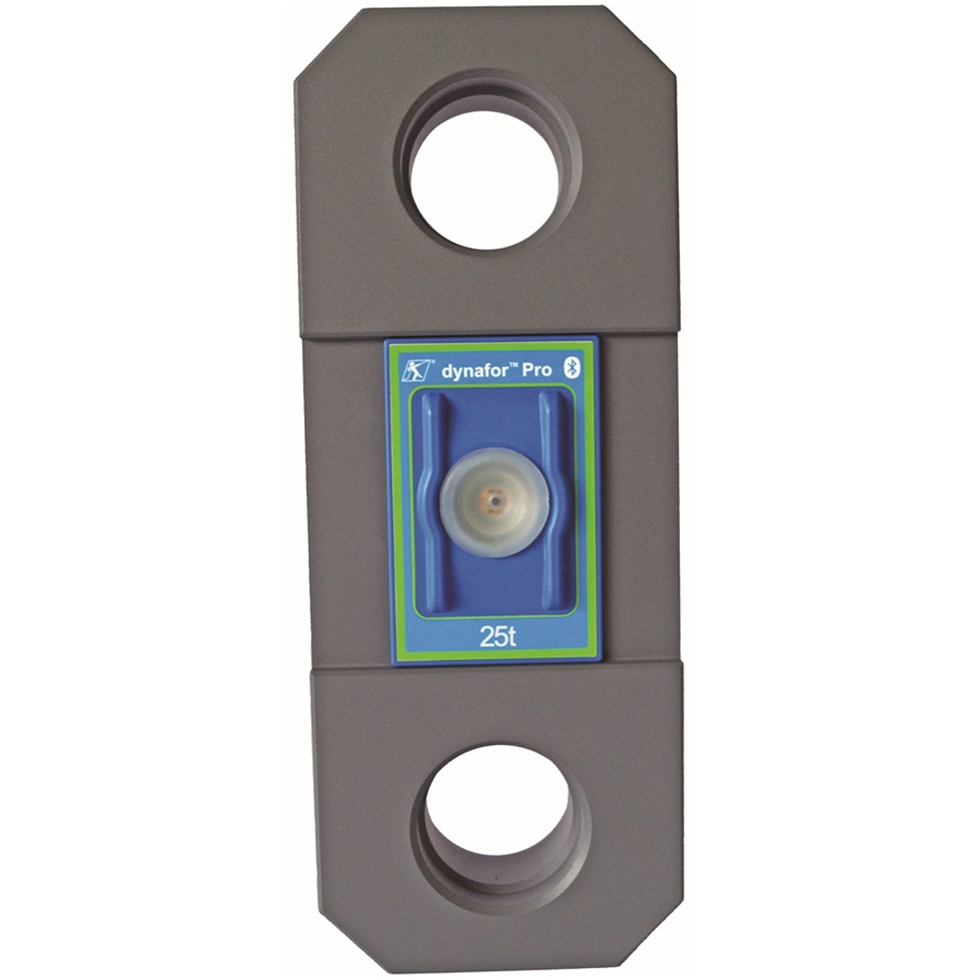

The Dynafor Pro is the latest version of a versatile and robust wireless digital dynamometer, used in various weighing and force measurement applications

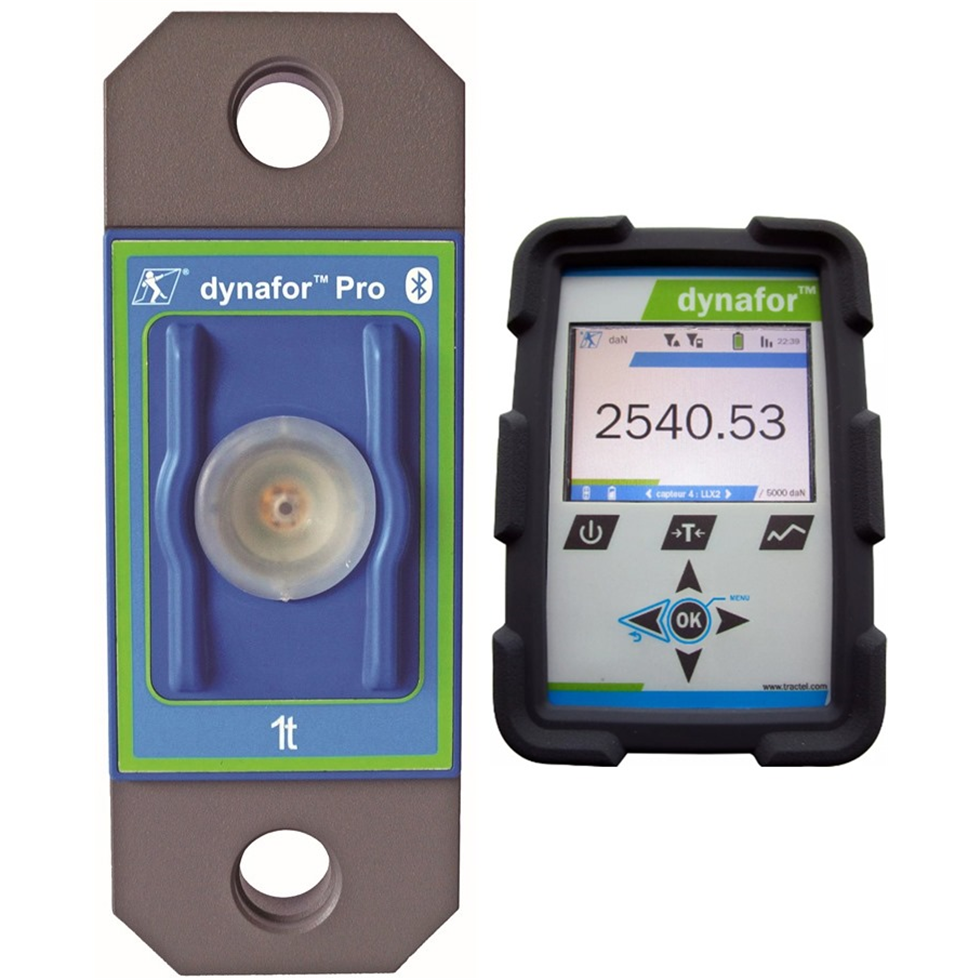

Supplied with Hand Held Readout

Compatible with standard Bow Shackles, the Dynafor Pro ensures a perfect implementation in your applications

Specifications:-

• Capacity range from 1tonne up to 100tonne
• Radio-Frequency 2.4GHz chipset for wireless range up to 400mtr with Tractel® Dynafor HHD, large displays AL63, DMU and software accessories
• Bluetooth chipset for a connection to any smartdevice equipped with the Tractel free app', up to 30mtr
• Both Bluetooth and Radio-Frequency 2.4 GHz available
• 0.2% accuracy of full scale
• Powered by 3 AA batteries
• IP 65

Hand Held Readout functionalities:-

• Single and multi-sensors reading with sum function
• Multiple display units ( daN, kg, t, Ton, lbs,kN)
• Tare function
• Peak hold mode function
• Ergonomic interface
• Settable backlight
• Alarm setting with the incorporated buzzer
• Manual data recording with up to 100 measures
• IP 65
• Autonomy up to 48h
• Equipped with rechargeable battery, charger included
• Can be used in combination with large display AL63 and DMU for modular solutions
• Can be used while the Tractel App is connected to the device at the same time

Applications:-

• Overhead weighing
• Force measurement testing
• Water bag load testing
• Towing applications
• Safety and lifting applications
• Heavylift projects
• Research & development projects
• Load monitoring on lifting equipment

  ---

  Delivery Information

  • Delivery is 7-10 days from date of order
  • Supplied Direct from Manufacturer Partner
