Tractel 10000kg Automatic Lifting Hook

Tractel 10000kg Automatic Lifting Hook

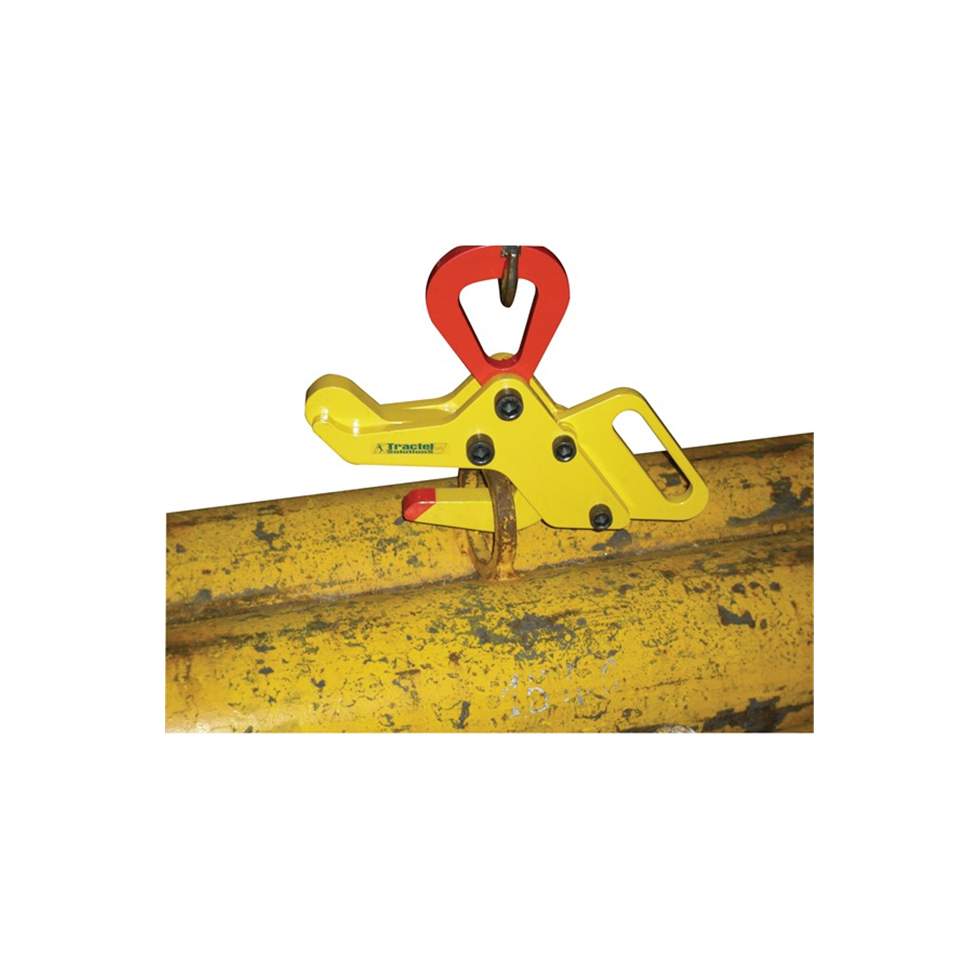

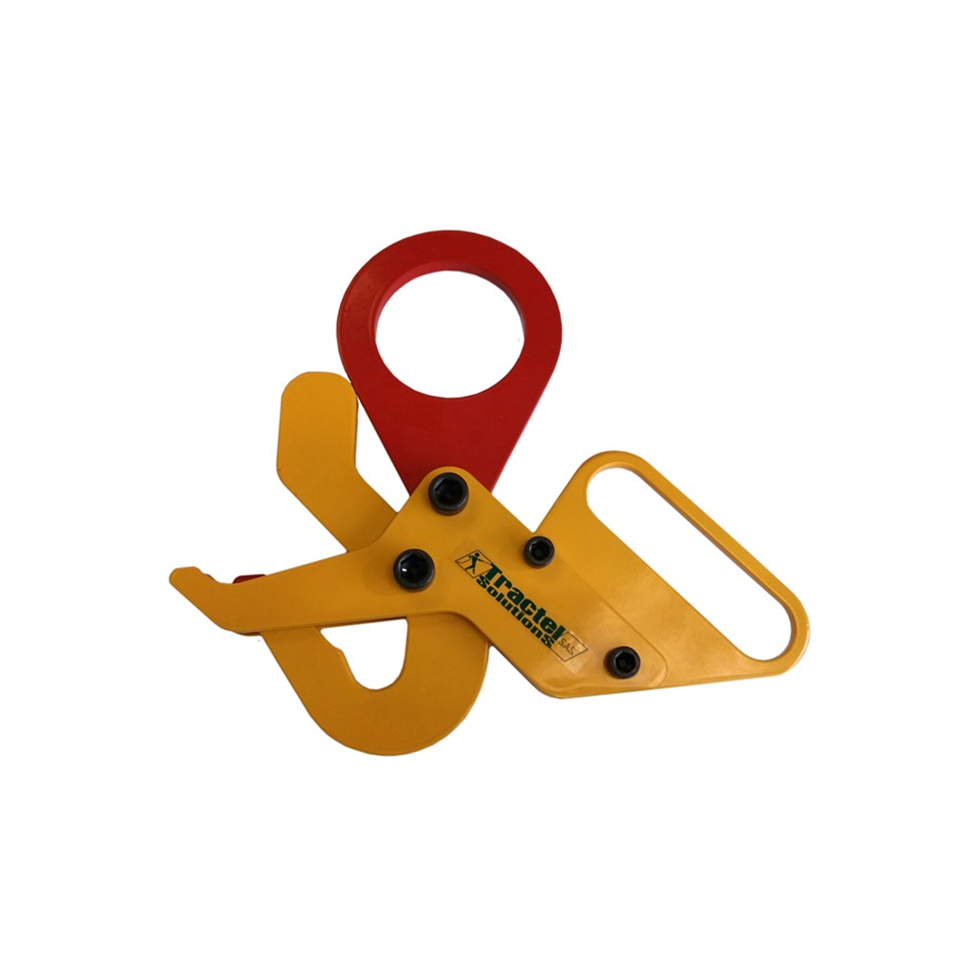

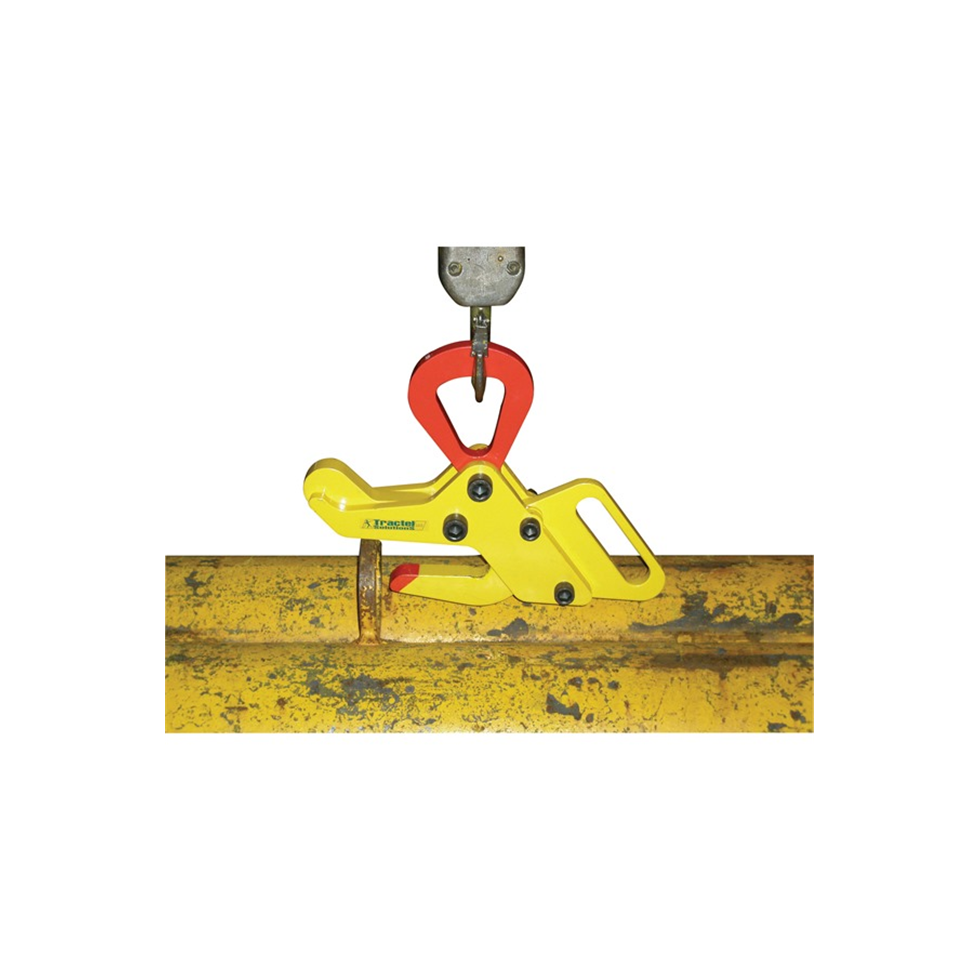

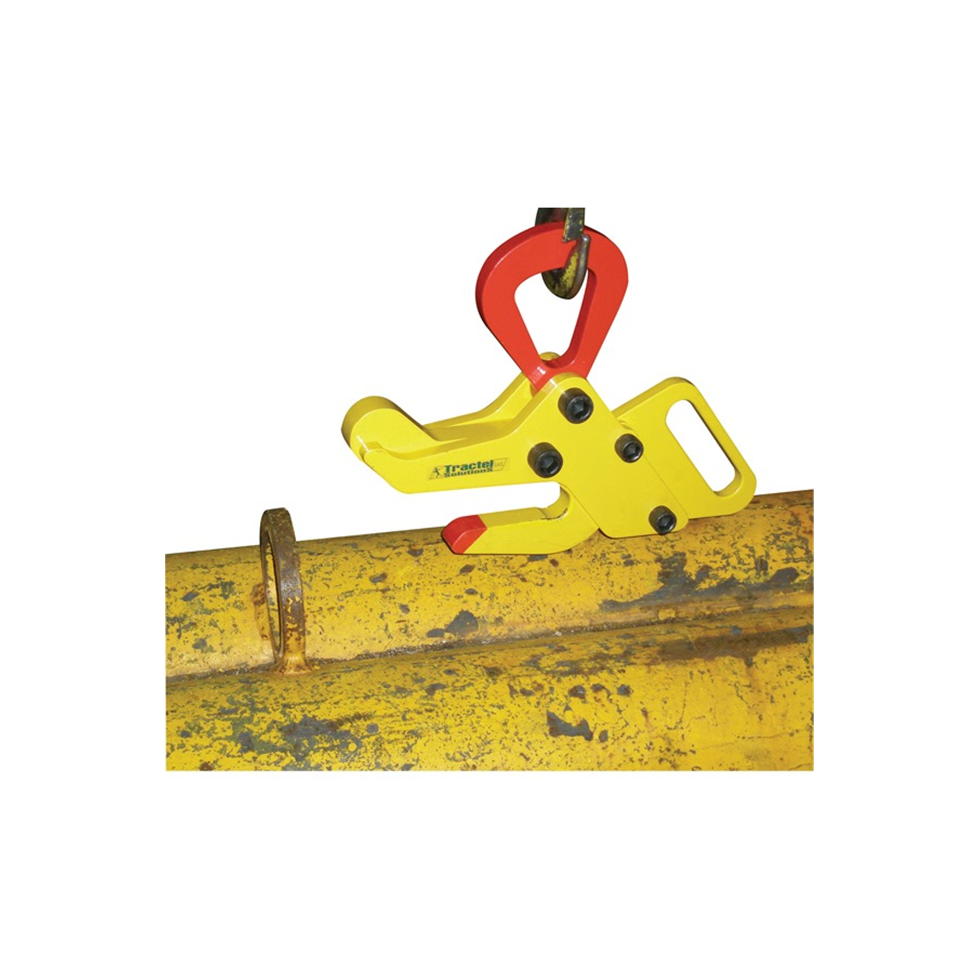

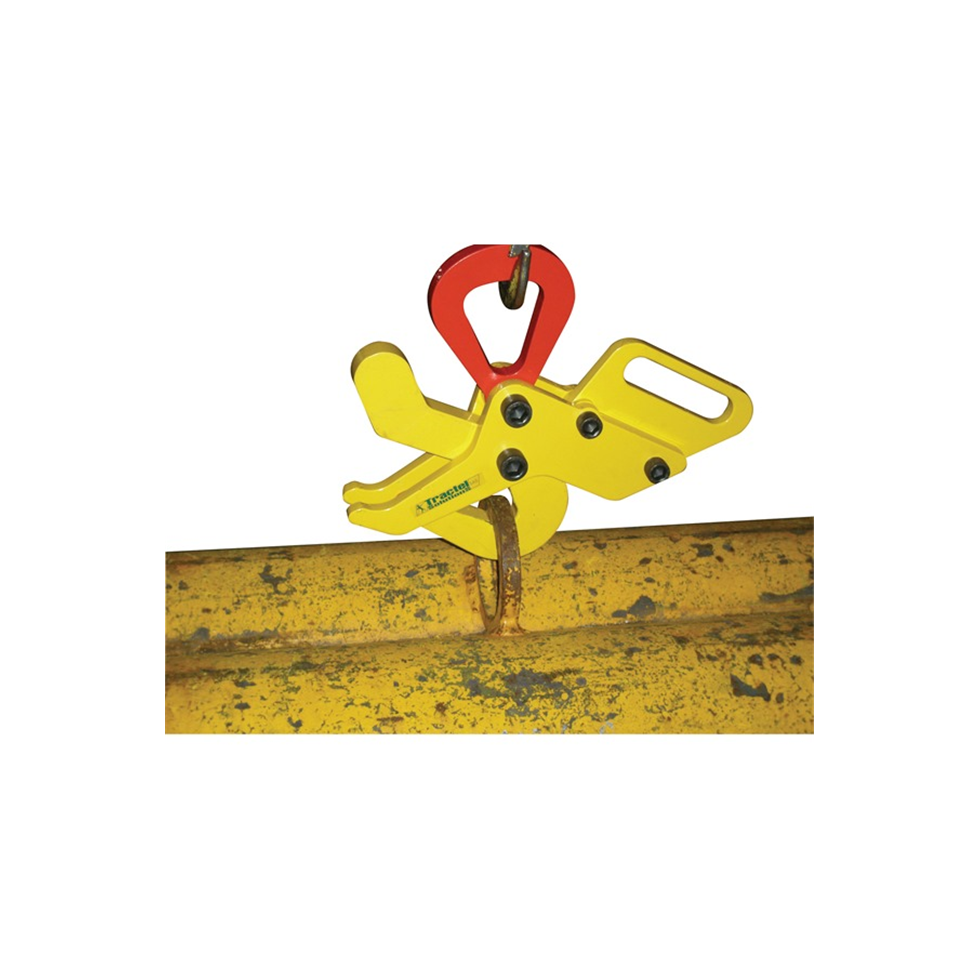

The Automatic Lifting Hook is used when access to the load is impossible for the operator (temperature, height, no access, aggressive conditions etc.) or when it is dangerous to stay close to the load during lifting or laying, the hook can be guided by its handle for positioning and the operator can move away from the load during the lifting/laying operation

When placed in position, the clamp will open and close automatically, without the intervention of the operator

Features:-

• Fully automatic operation
• Maximum safety
• FEM Class A5
• Hot epoxy coating
• Lifting capacity: 10000kg
• Jaw opening: 0-55mm
• Weight: 30kg

Safety Instructions:-

• Do not use with fragile loads
• Only lift when the red point is no longer visible
• A minimum load of 10% of the WLL must be respected
• The hooks are not appropriate for a permanent assembly
• Take one load only at each lifting operation
• Use textile slings only with manual positioning, making sure the sling is correctly put in place in the bottom of the hook
• Temperature of use: -20° à +100°C

Delivery Information

• This product is supplied directly from our Manufacturer Partner.
• Delivery of this product is 3-4 weeks from date of order.
