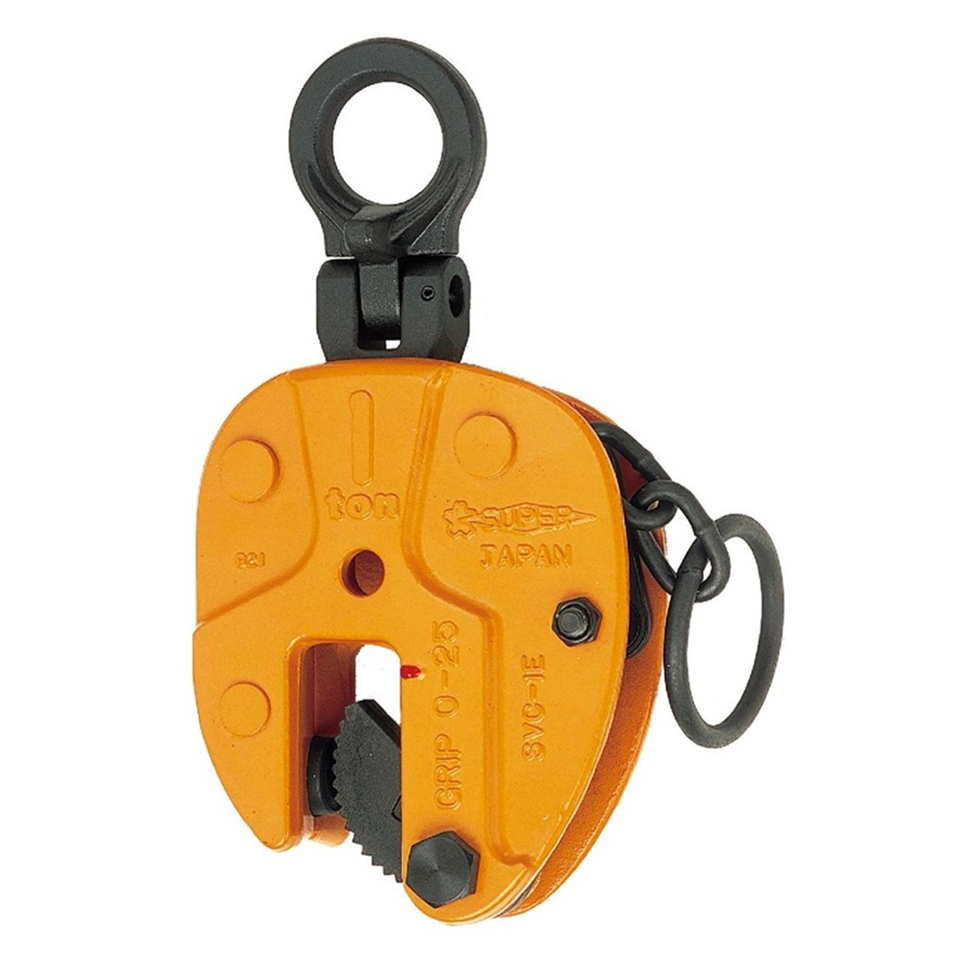

Tiger SVC-E Vertical Lifting Clamp 0.3tonne to 2tonne

Tiger SVC-E Vertical Lifting Clamp 0.3tonne to 2tonne

The SVC-E Vertical Lifting Clamp is a lightweight clamp primarily designed for the vertical lifting of steel plates

The universal shackle allows the cam to generate a clamping force on the work piece no matter which direction it is pulled

Features:-

• Range from 0.3t to 2.0t
• Lightweight clamp primarily designed for the vertical lifting of steel plates
• The spring-loaded tightening lock mechanism assures a positive initial clamping force even at no load condition
• The universal shackle allows the cam to generate a clamping force on the work piece no matter which direction it is pulled
• The clamping force increases in proportion to the weight of the load
• High-frequency quenching of die-forged special alloy steels gives greater durability to the cam
