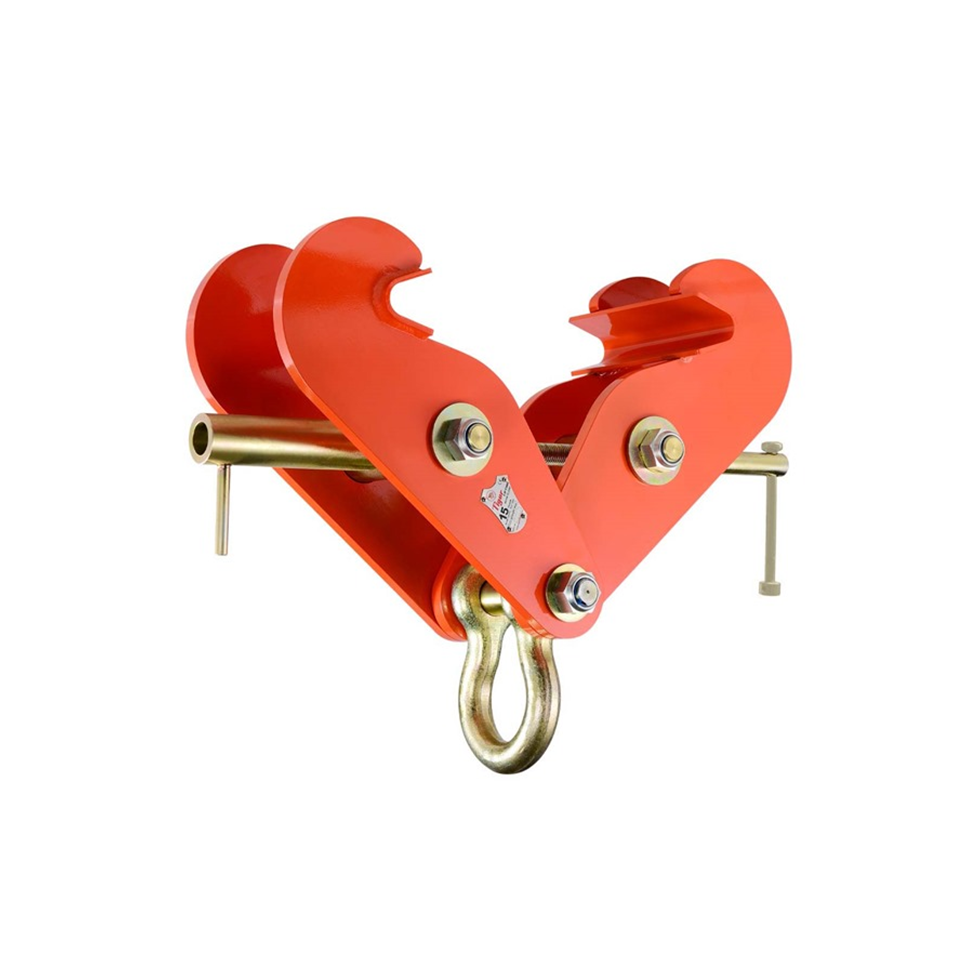

Tiger BCF 5tonne Fixed Jaw Heavy Duty Beam Clamp with Shackle 75-190mm

Tiger BCF 5tonne Fixed Jaw Heavy Duty Beam Clamp with Shackle

Quick and versatile rigging point for hoisting equipment

Shackle suspension point

Suitable for pulling and lifting at angles across the beam

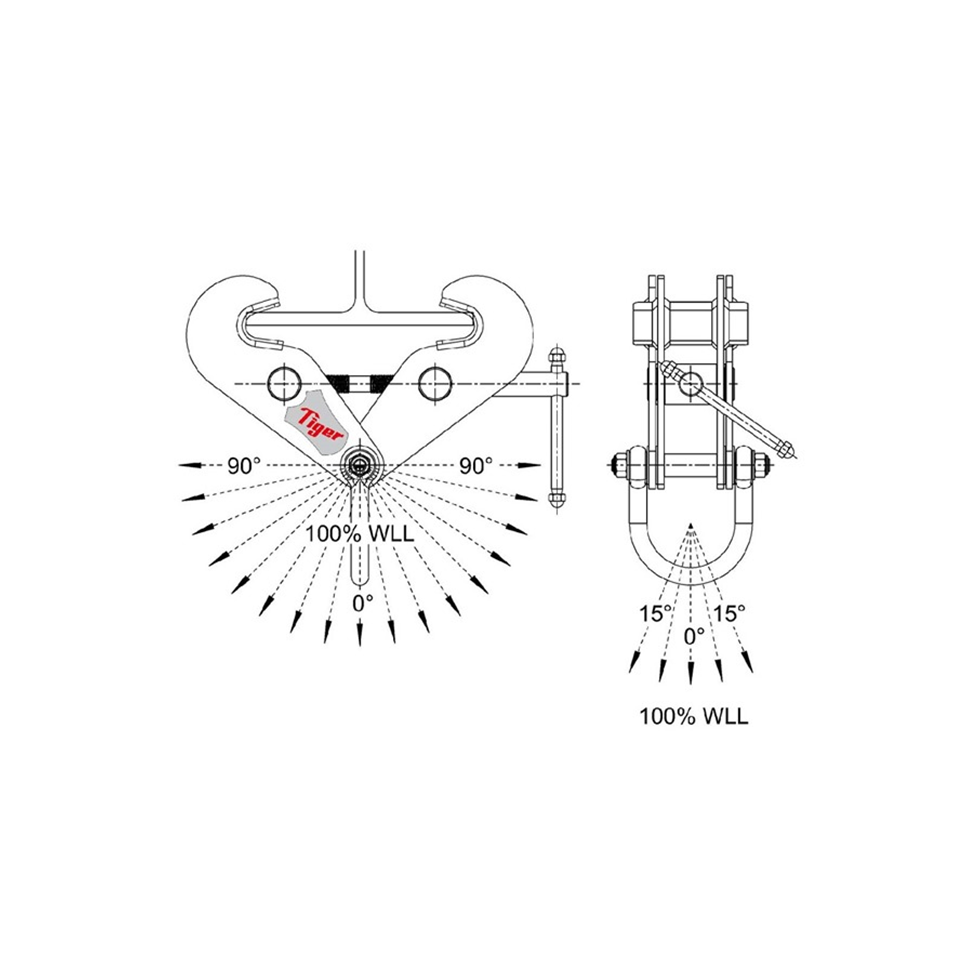

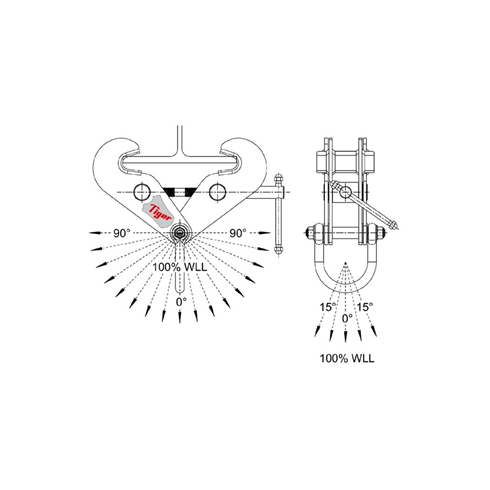

Up to 90° side loading with no deration

15° cross loading with no deration

Highly flexible – for lifting, pulling or as a semi-permanent anchor point

Evenly distributed loads achieved through maximum jaw surface area

Multidirectional adjusting screw spindle ensures a high clamping force to the various flange sizes within its capacity

Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)

Factor of safety: 5:1 for straight pulling and lifting, 4:1 at other angles stated above

Model: BCF-050S

Capacity: 5tonne

Beam width range: 75-190mm

Weight: 11kg
