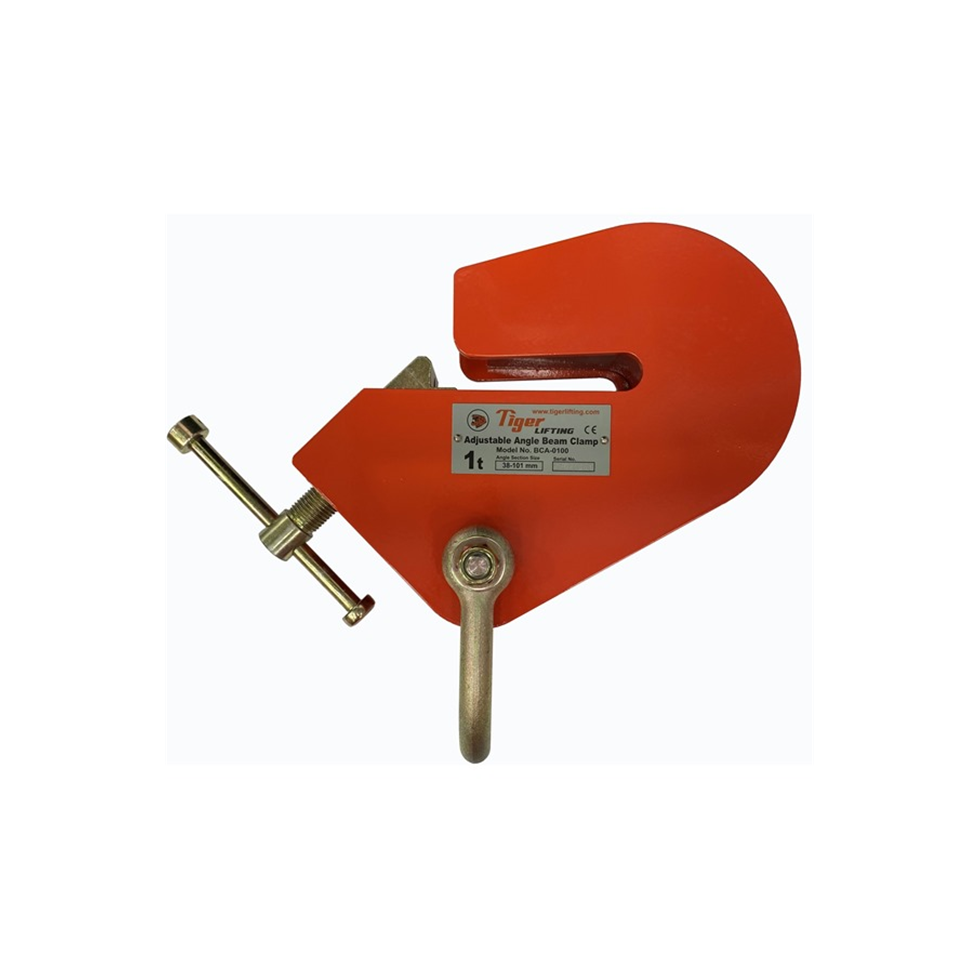

Tiger BCA 1tonne Adjustable Angle Beam Clamp
Product Code: BCA-0100Net Weight (Per Item): 5.5kg
Tiger BCA 1tonne Adjustable Angle Beam Clamp
This BCA Clamp serves as an anchor or lifting point when attached to an overhead steel angle section approved for lifting applications. This clamp can be used up to a maximum of 15° from the vertical
These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991
Capacity: 1tonne
Angle section size: 38-101mm
Weight: 5.5kg
Main features:-
- Quick and versatile rigging point for hoisting equipment when attached to overhead steel angle section approved for lifting applications
- Shackle suspension point
- V shaped clamping jaws ensures safe and secure grip
- Designed to accommodate a wide range of steel angle sections
- No tools required – integrated adjusting screw spindle
- Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
-
Factor of safety: 5:1 for straight pulling and lifting, 4:1 at other angles stated
