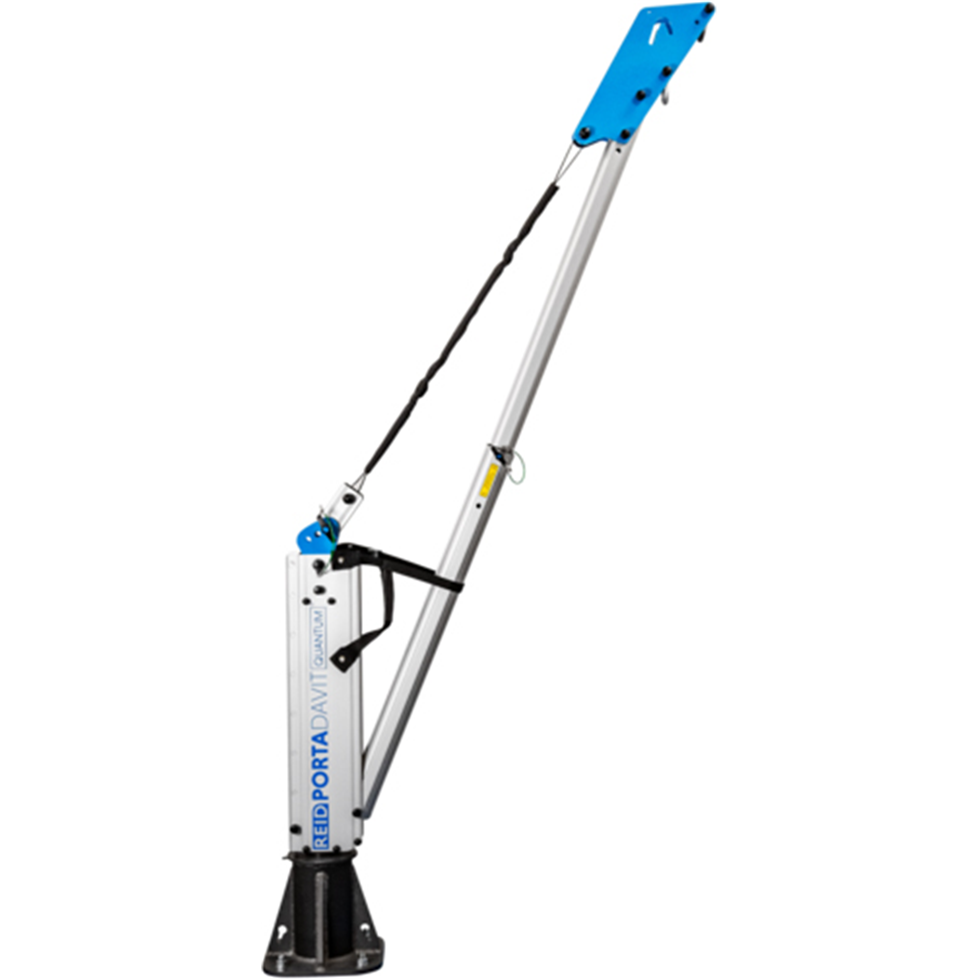

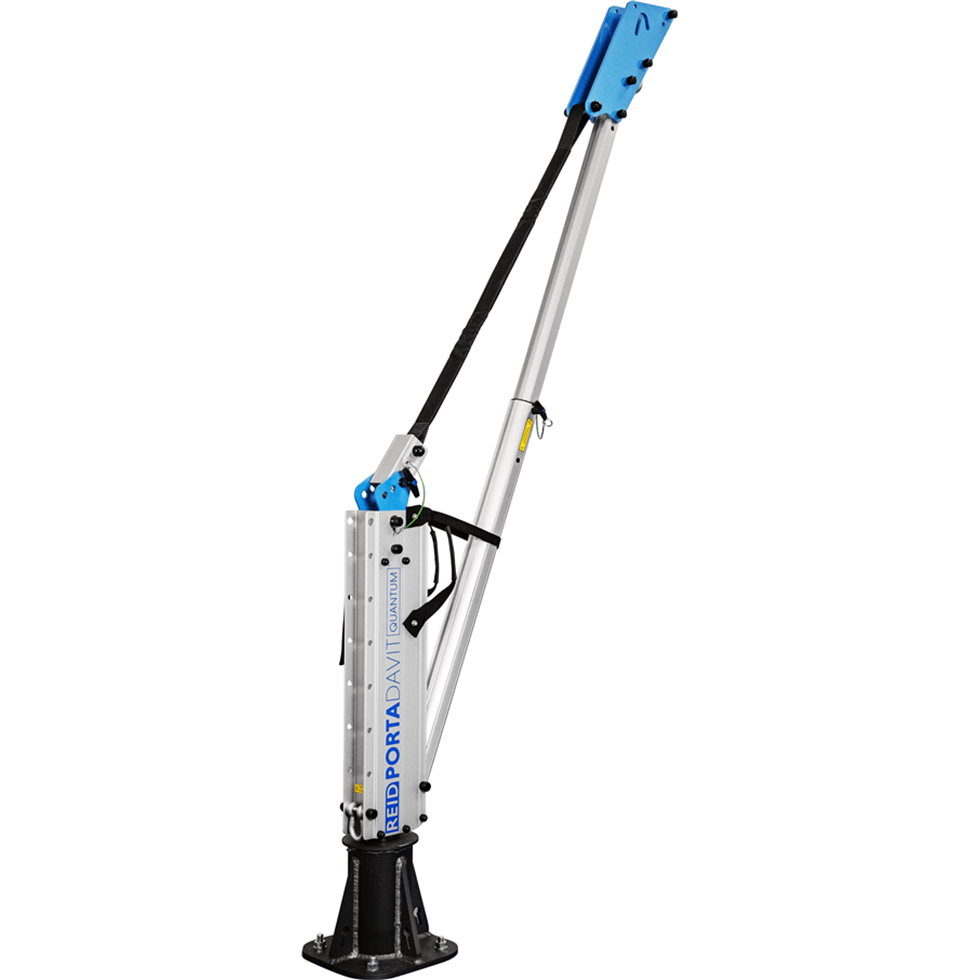

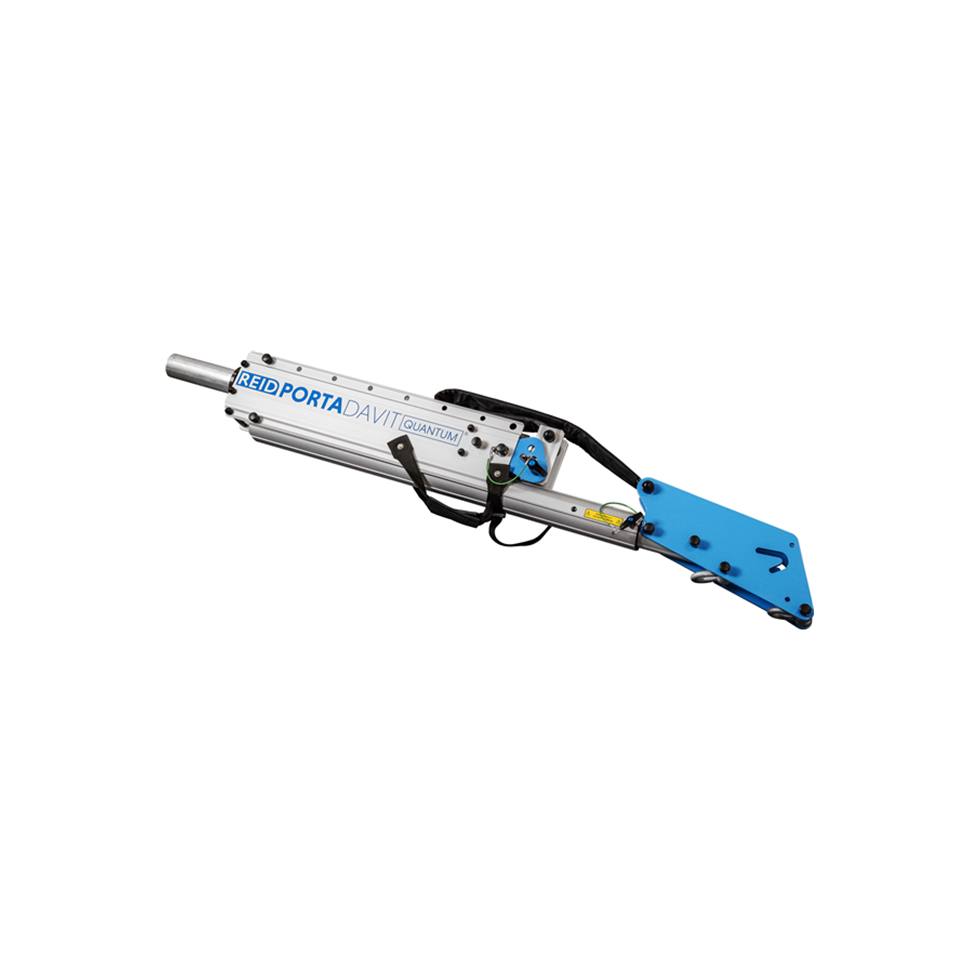

Reid Porta-Davit Quantum Stropped 1500mm Radius WLL:500kg
Product Code: PDQ2SNet Weight (Per Item): 19kg
Reid Porta-Davit Quantum Stropped WLL:500kg
The Porta-Davit QUANTUM is a rapidly deployable, lightweight solution to the heavy lifting and lowering of goods and personnel
Weighing 19kg, it can be manually opearted by just one person while maintaining a lifting capacity of up to 500kg

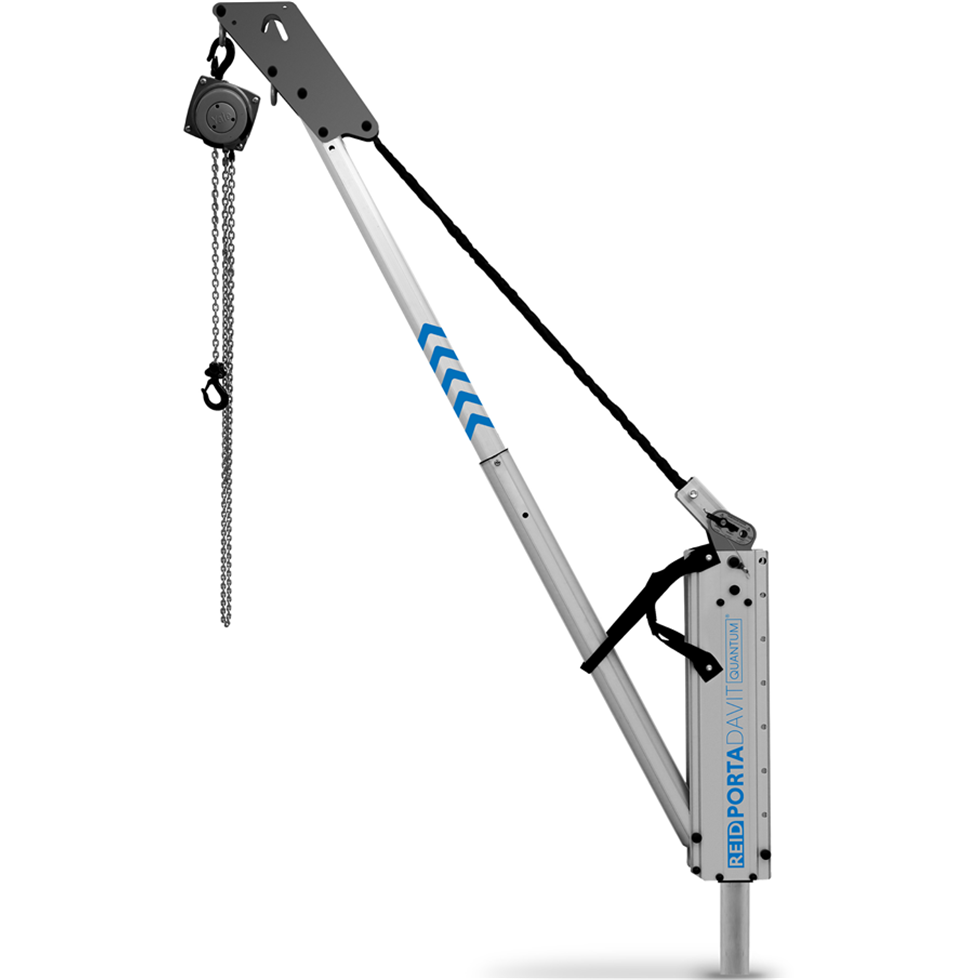

Manual or electric chain hoists can be hooked from the shackles on the head of the PDQ
Can be supplied with or without STMG0500VS Galvanised 65mm dia Top Mount Davit Socket
Key features:-
- EN795:2012 & ATEX Certified
- Fall arrest capacity - 1 user
- Personnel capacity up to 250kg and goods capacity up to 500kg
- Three radius adjustment points
- Double shackle head for easy attachment of accessories
- Ease of assembly with the use of just one pin, no tools required
- Can be rotated 360° under a full load
- Clean, anodised finish for increased corrosion resistance
- Designed with a universal kingpin suitable for use with the Reid 65mm range of sockets
- Product code: PDQ2S
- Max height of lift: 1957mm
- Max radius: 1500mm
- Davit weight: 19kg
*** Chainblock and accessories sold separately ***
Delivery Information
- This product is supplied directly from our Manufacturer Partner.
- Delivery of this product is 5-7 days from date of order.
