Reid Porta-Davit 1200mm Radius WLL:500kg
Product Code: PDSSF0500-1200Net Weight (Per Item): 24kg

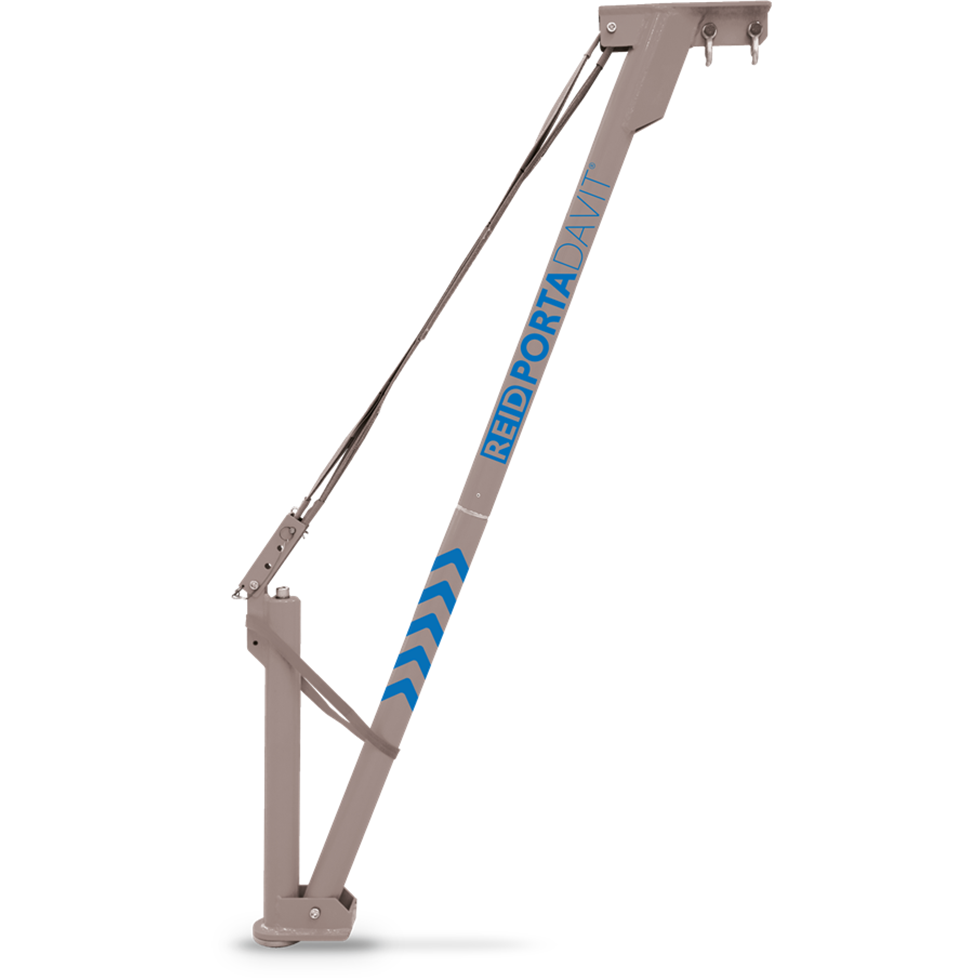

Reid Porta-Davit 1200mm Radius WLL:500kg
The Reid Porta-Davit is a rapidly deployable, lightweight solution that offers a working limit of up to 500kg and can easily be rotated 360° under a full load. The system can be operated by just one person and can support both goods and personnel lifting
Can be supplied with or without STMG0500VS Galvanised 65mm dia Top Mount Davit Socket
This Davit can be supplied with a Winch and Bracket - please contact us for more details and pricing
Key features:-
- EN795:2012 and ATEX certified
- Can support goods and personnel lifting
- Personnel capacity up to 250kg, goods capacity up to 500kg
- Ease of assembly with the use of just one pin, no tools required
- Can be rotated 360° under a full load
- Radius adjustment points
- Shackle lifting points
- Double shackle head for easy attachment of accessories
- Suitable for use with the Reid range of 65mm sockets
- Maximum reach: 1200mm
- Maximum height of lift: 2107mm
- Model: PDSSF0500-1200
- Davit weight: 24kg
