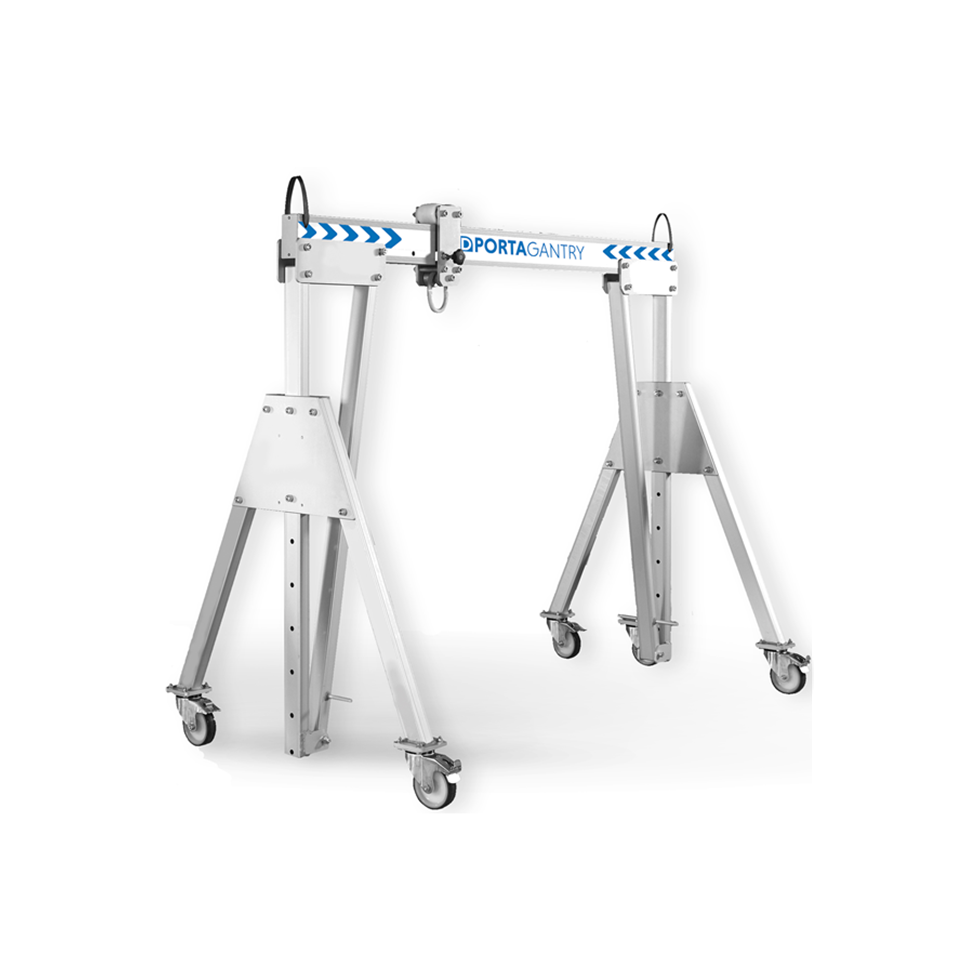

Reid Lifting 1000kg 2879-4079mm PortaGantry
Product Code: PGAS01000TNet Weight (Per Item): 138.2kg
Reid Lifting 1000kg PortaGantry 2879-4079mm
Our top quality and highly durable PORTAGANTRY is lightweight and extremely strong. This portable lifting system can be manually assembled, using just four bolts and can safely lift to 1000kg, making it ideal for multiple applications
This system offers an overhead anchor point for multiple users for fall protection, whilst also providing great versatility for lifting materials. Our PORTAGANTRY range is highly customisable to meet your specific needs, with a variety of A-frame height configurations and beam lengths available
Available with beam lengths from 2.5mtr to 9mtr (overall beam length, not working span - see attached data sheet for dimensions)
Minimum height to lifting eye: 2879mm
Maximum height to lifting eye: 4079mm
Height to top of beam: 4399mm
Height adjustment: 200mm increments
Supplied with Masterlink Trolley
Key features:-
- EN795:2012 & ATEX certified
- Can support goods and personnel lifting
- Suitable for up to 3 persons for fall protection applications
- Personnel capacity up to 500kg
- Goods capacity up to 1000kg
- Beams and A-Frames can be interchanged
- Ergonomic 360° swivel-locking castors as standard
- Ease of assembly including height and span adjustment
- Height adjustment: 200mm increments
- Anodised for increased corrosion resistance
DELIVERY IS 7-10 DAYS FROM DATE OF ORDER
