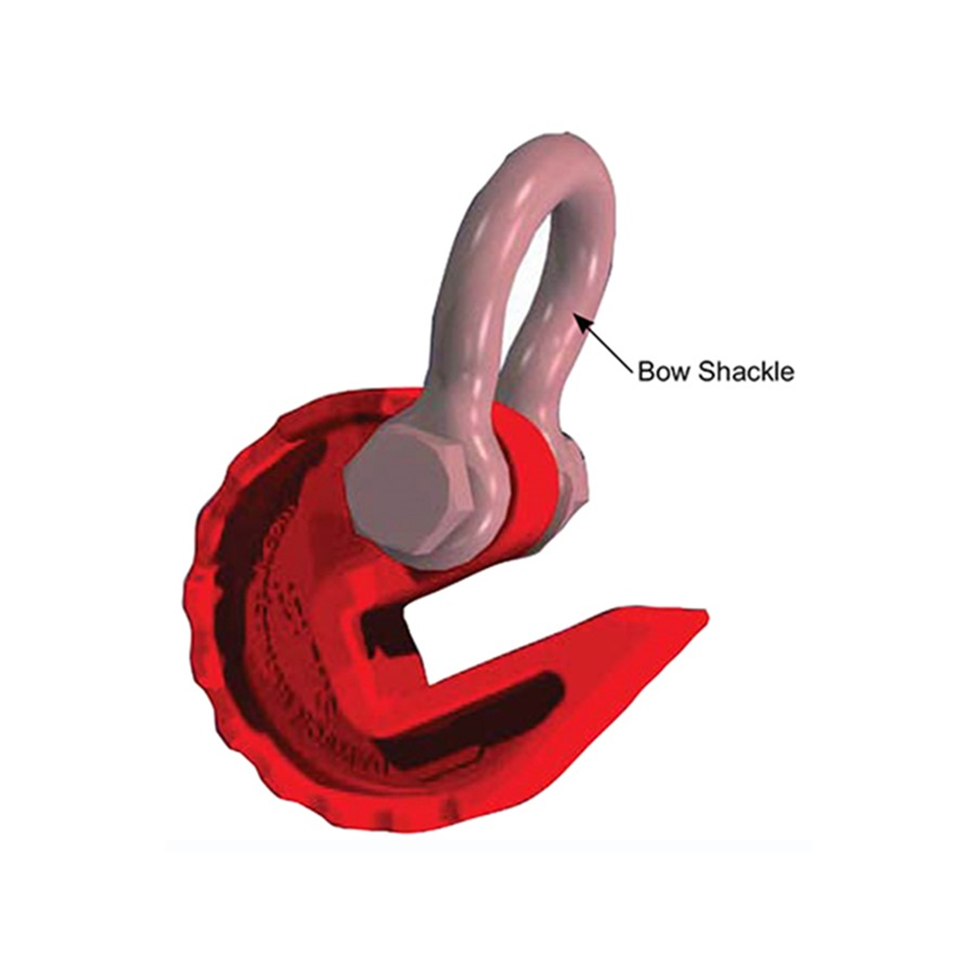

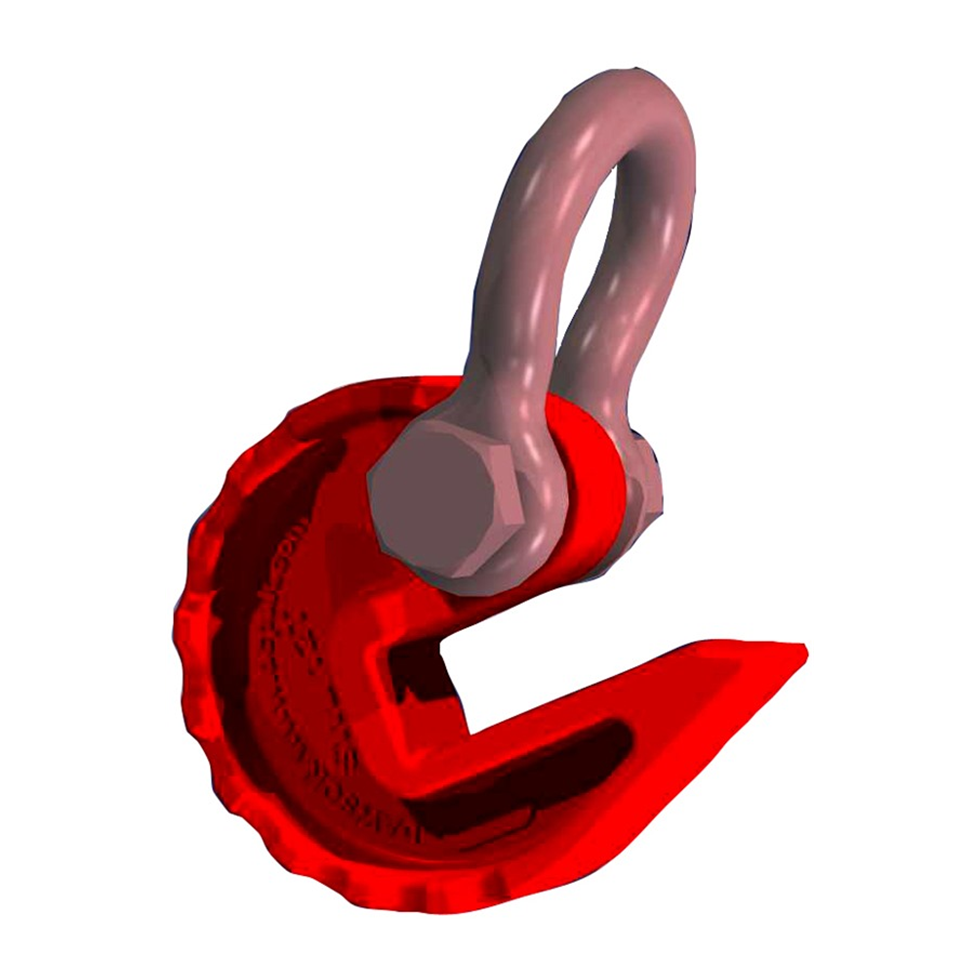

PLS 24tonne Pipe Lifting Shoe c/w Bow Shackle
Product Code: PLS-24T-910Net Weight (Per Item): 67.5kg
PLS 24tonne Pipe Lifting Shoe c/w Bow Shackle
The 24tonne Pipe Lifting Shoes are made from a high grade cast steel allowing weight reduction to be made in the design
New features include a radial profile engagement face and all round grip handling ridges
Shoes are sold Individually and must be used in pairs

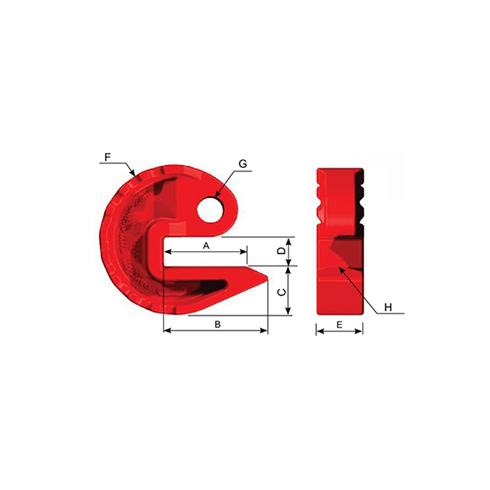

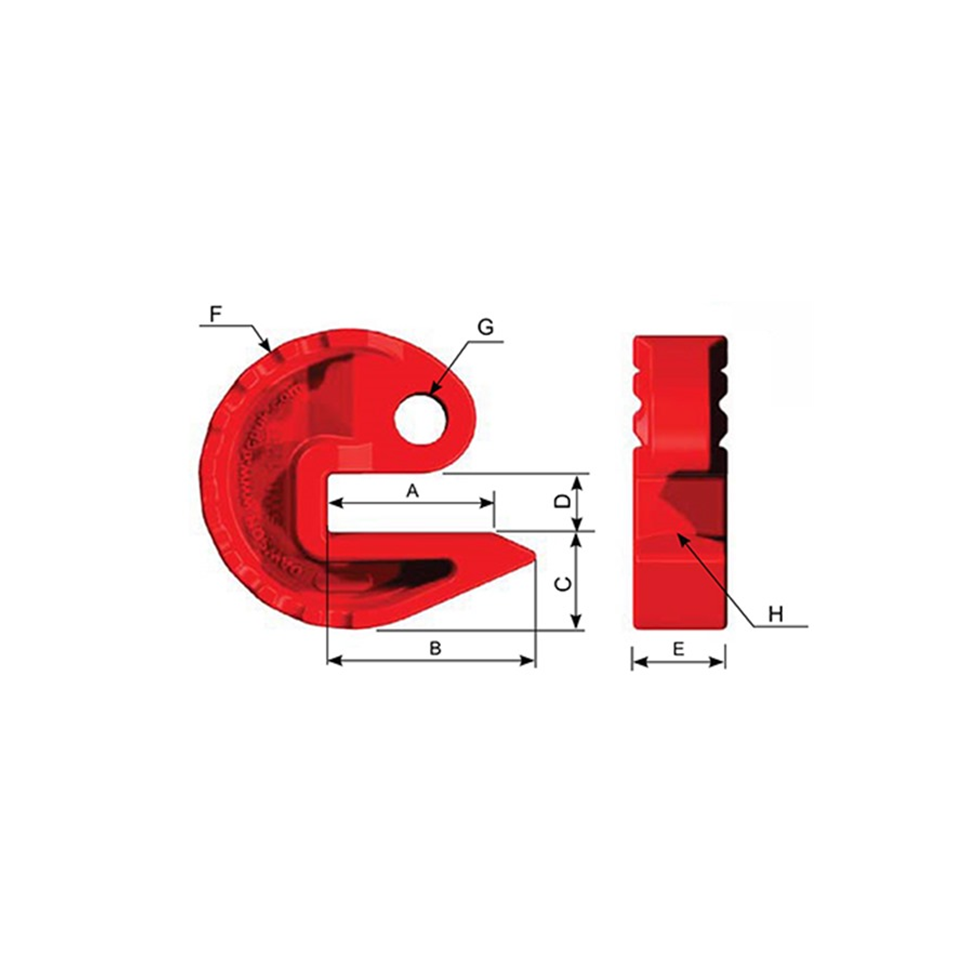

*** Please see attached data sheet for dimensions and full specifications ***
Specifications:-
- Part number: 910
- Weight of Shoe: 47.5kg
- Total weight of Shoe & Shackle: 67.5kg
- SWL per pair: 48tonne
- SWL Bow Shackle: 35ton
Please note:-
- Shoes sold Individually
- Must be used in pairs
- Critical minimum lifting angle is 45°
- Lifting Slings must be of equal length
- Angles less than 45° could result in an overloading of the equipment
Delivery Information
- This product is supplied directly from our Manufacturer Partner.
- Delivery of this product is 10-14 days from date of order.
