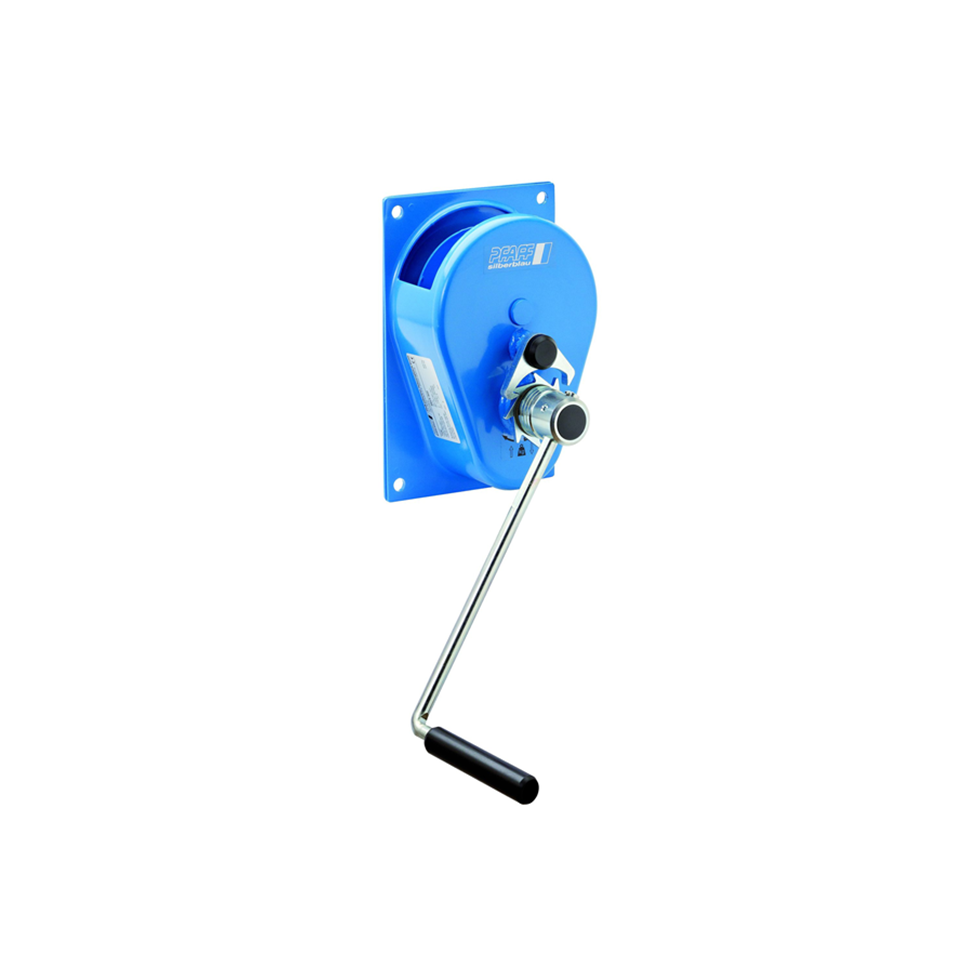

Pfaff MWS 300kg Spur Gear Drive Wire Rope Hand Winch
Product Code: CM-MWS300-RSNet Weight (Per Item): 10kg
Pfaff Silverblau MWS Manual Wire Rope Hand Winch With Spur Gear Drive
The MWS is a high quality Wire Rope Winch designed to be used where no electricity is available or in a dirty environment
Enclosed gear drive for protection of internal parts, even under tough working conditions
The Winch has spur gears on roller bearings while the rope drum in on plain bearings
Quick and easy mounting onto walls, poles etc...
Compact design
Self-locking, anti-kickback and adjustable crank handle for fast lifting of smaller loads, resulting in lowest possible handle effort and rapid winding of the rope
Fitted with automatic load pressure brake for safe holding and extremely sensitive lowering of the load. Unintentional brare release is prevented even with swinging loads
These Winches are suit for operation in ambient temperatures of -20°C up to +40°C
Lifting capacity: 300kg
Lifting capacity last rope layer: 166kg
Crank effort 1st rope layer: 6daN
Ratio: 1:7.4
Recommended rope diamter: 5mm
Usuable rope length max: 21mtrs
Number of rope layes max: 7
Weight without rope: 10kg
*** Supplied without Wire Rope ***
