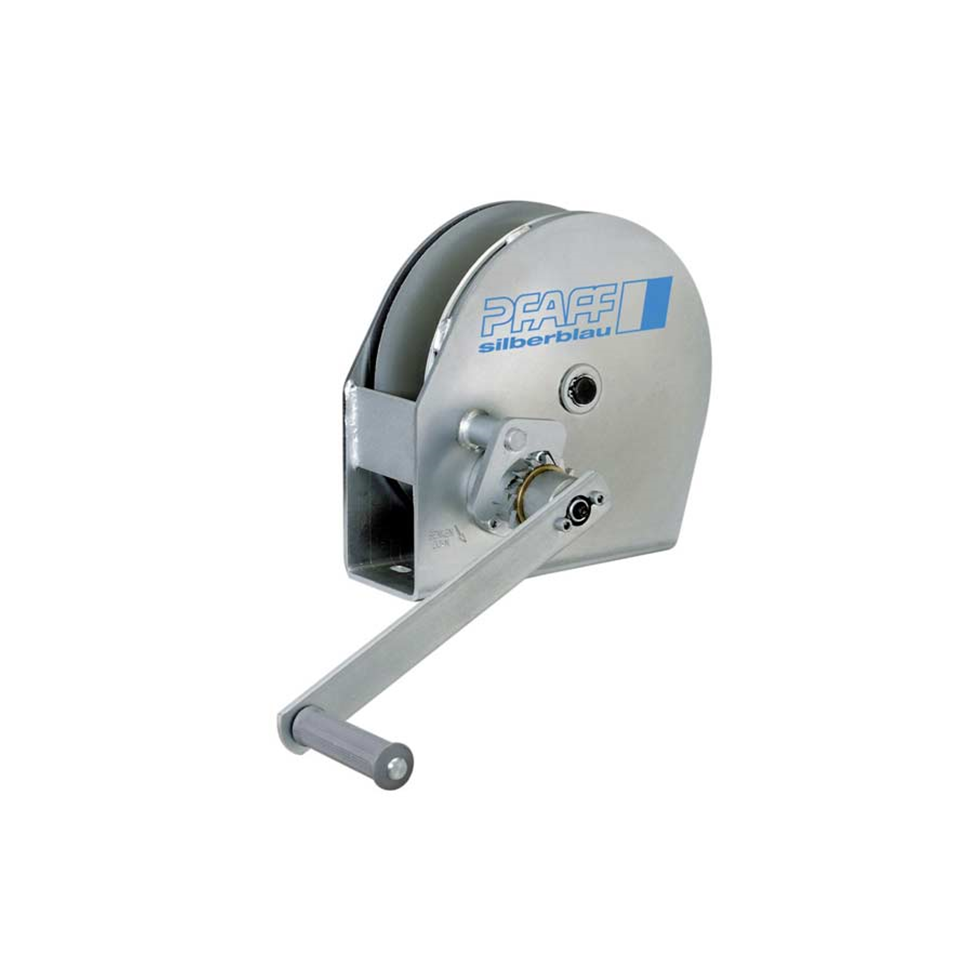

Pfaff LB Stainless Steel 250kg Wire Rope Hand Winch
Product Code: CM-HW-SS-LB250-RSNet Weight (Per Item): 4.8kg
Pfaff Silberblau LB Stainless Steel Hand Winch
The LB is a console mounted Winch used for a variety and lifting applications
It has been designed for maximum versatility and efficiency
Features:-
- Winch housing and rope drum are made from Stainless Steel. The plain drum bearings are made from bronze for additional corrosion resistance
- Very lightweight design
- Fitted with load pressure brake to prevent unintentional lowering of load
- High efficiency obtained by spur gears
- Column or base-mounting
- Stainless steel for increased corrosion protection
- Capacity: 250kg
- Lifting capacity - 1st rope layer: 125kg
- Wire rope diameter: 4mm
- Wire rope capacity - 1st layer: 1.8mtr
- Wire rope capacity - total: 19.5mtrs
- Lift per crank rotation: 125mm
- Required crank pressure: 20 daN
- Weight: 4.8kg
Please note: These Winches are supplied WITHOUT Wire Rope (please contact us for details of Wire Ropes we can offer)
Delivery Information
- This product is supplied directly from our Manufacturer Partner.
- Delivery of this product is 1-2 days from date of order.
