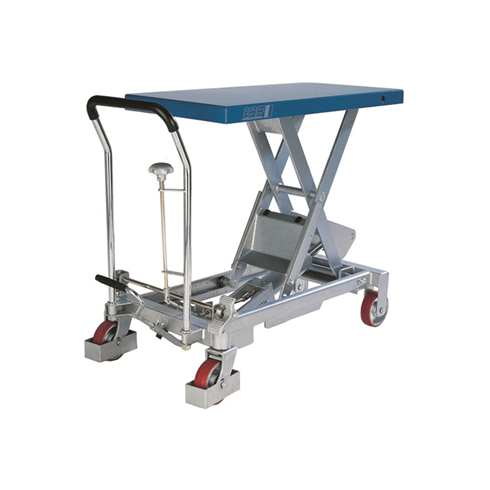

Pfaff HX500 500kg Scissor Lift Platform Table

Pfaff HX500 500kg Scissor Lift Platform Table

The Pfaff HX500 is a Hydraulic Workshop Platform with adjustable height, suitable for all manufacturing, packing and workshop applications

Hydraulic foot pump lifts the Table with minimal effort

Lowering action is via a release cable, this safely lowers the load

The lockable wheel feature adds stability and safety to the Platform Table

Robust construction with hard chromium plated piston and pressure relief valve

Model: HX500

Lifting capacity: 500kg

Rollers: Polyurethane

Overall unit height: 984mm

Overall unit length: 1093mm

Max height of platform: 880mm

Min height of platform: 285mm

Platform length: 850mm

Platform width: 500mm

Floor/ground clearance: 53mm

Lift height per stroke: 31mm

Weight: 82kgs
