Pfaff HV1008 1000kg Hydraulic Hand Stacker 900mm lift
Product Code: CM-HV1008Net Weight (Per Item): 179kg

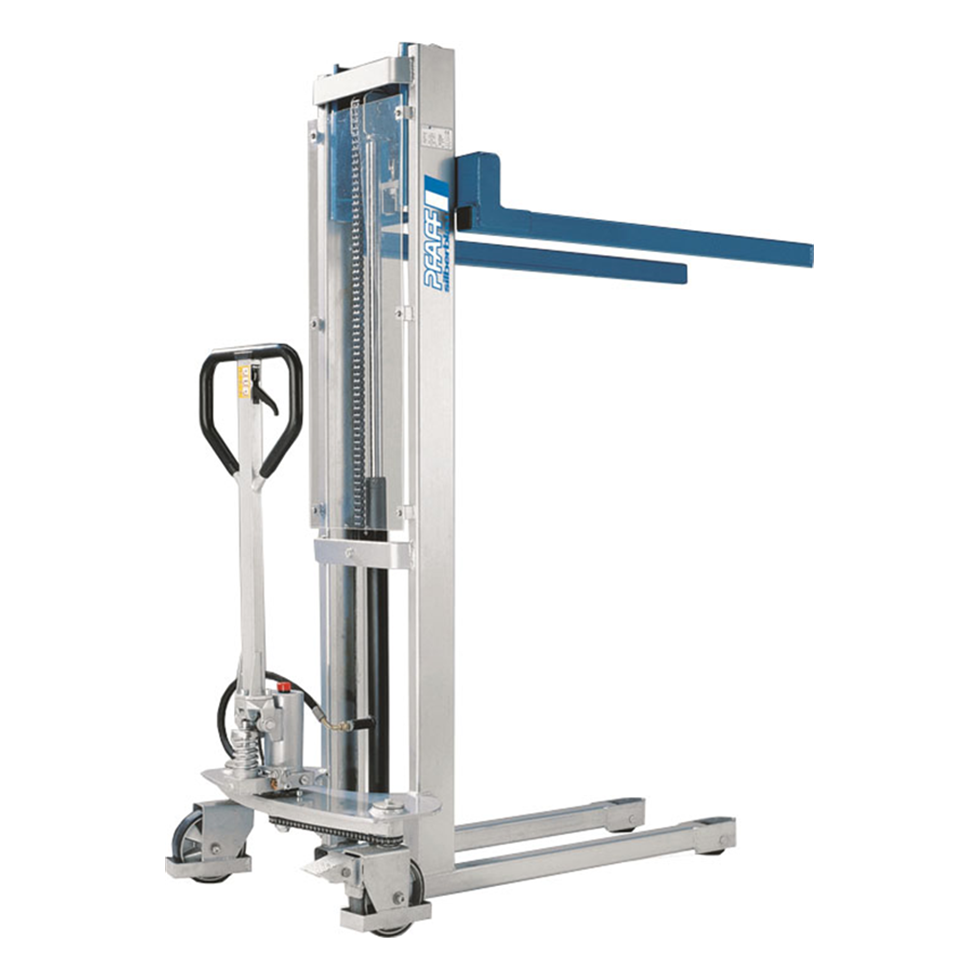

Pfaff HV1008 1000kg Hydraulic Hand Stacker 900mm lift
The Pfaff HV1008 is a manual drive and manual lifting Hydraulic Hand Stacker
Ideal for the occasional, internal application of stacking and transporting of palletised goods
Features:-
- Ergonomic safety control handle for one-hand operation of lifting, driving and lowering
- Easy handling due to forced steering rollers
- Lowering speed can be finely metered for sensitive lowering of the load
- Single-acting hand pump with increased lift per handle stroke
- Quick-lift for loads up to 100kg
- Robust mast construction with hard chronium plated piston
- Steering roller with brake for safe parking of the Stacker
Model: HV1008
Lifting capacity: 1000kg
Closed mast height: 1300mm
Free lift: 810mm
Mast height extended: 1300mm
Fork height (maximum): 900mm
Fork height (lowered): 90mm
Total unit length: 1675mm
Total unit width: 765mm
Usuable fork length: 1122mm
Floor/ground clearance: 25mm
Lift per one crank rotation with/without load: 17/50mm
Turning radius: 1445mm
Weight: 179kg
