Levpano II Plasterboard Lifter 75kg Max Load
Product Code: LEVP2Net Weight (Per Item): 47kg
![LiftinGear](https://www.safety-lifting.com/images/brand-page/c6e7354c-83b5-47c1-b866-ad008e2eb0ef/liftingear.jpg)
Levpano II Plasterboard Lifter 75kg Max Load
Horizontal & Angled Fixing - 75kg Max Load
The Levpano range of Board Lifters have been primarily designed for the use of lifting plasterboard or drywall products into position ready to fix at the desired height and angle required
Each model has various features and benefits and dependent on the job in hand with determine which model best suits your needs

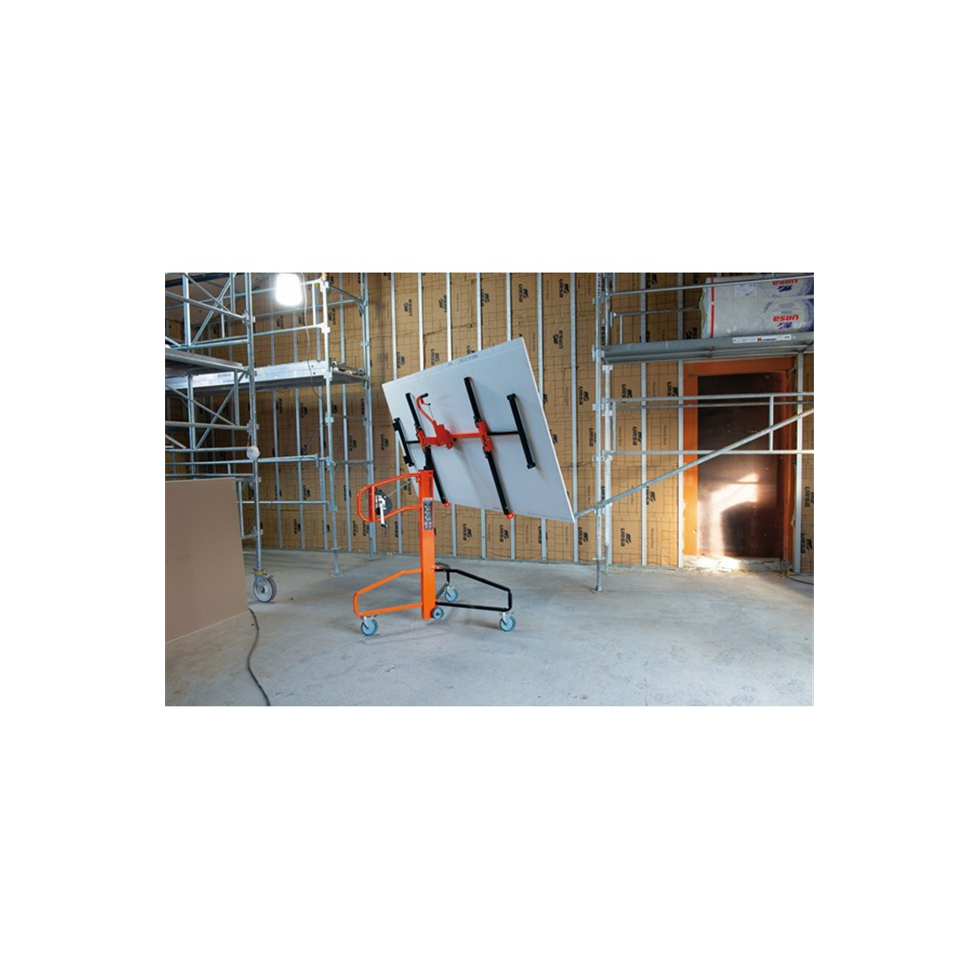

The Levapano II has the ability to allow you to lift and fix plasterboard both horizontally and at an angle
Specifications:-
- Fixing position horizontal: Yes
- Fixing position vertical: No
- Fixing position pitched: Yes
- Maximum length of board: 3mtrs
- Maximum load capacity: 75kg
- Maximum horizontal lift height with extension bar: 4.5mtr
- Maximum horizontal lift height without extension bar: 3.5mtr
- Minimum horizontal load height: 0.82mtr
- Maximum vertical lift height without extension bar: 5mtr
- Extension bar length: 1mtr
- Frame weight: 28.2kg
- Head, beam & arms weight: 14.9kg
- Feet equipped with wheels: 3.9kg
- Wheel diameter: 12.5cm
- Total number of wheels: 3
- Wheels that lock: 2
- Total weight: 47kg
