IFB-1 500kg x 3000mm Fork Mounted Pole
Product Code: IFB-1Net Weight (Per Item): 210kg

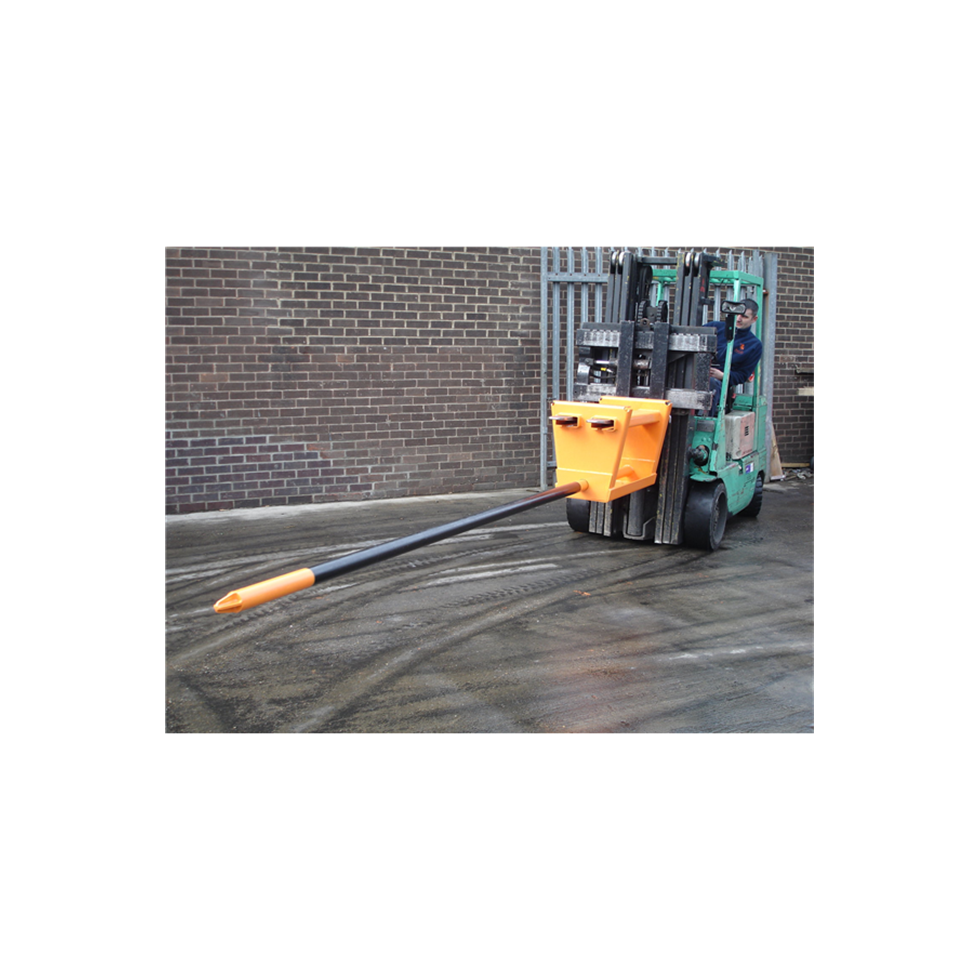

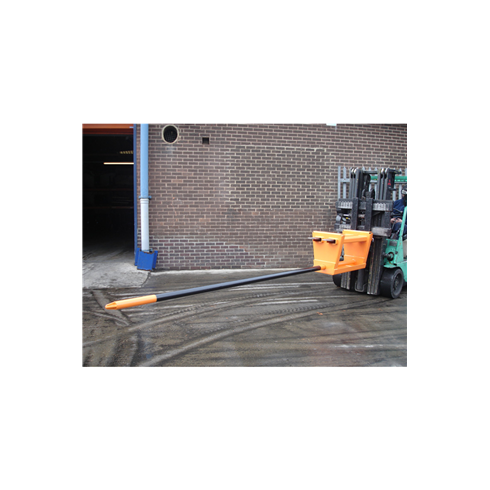

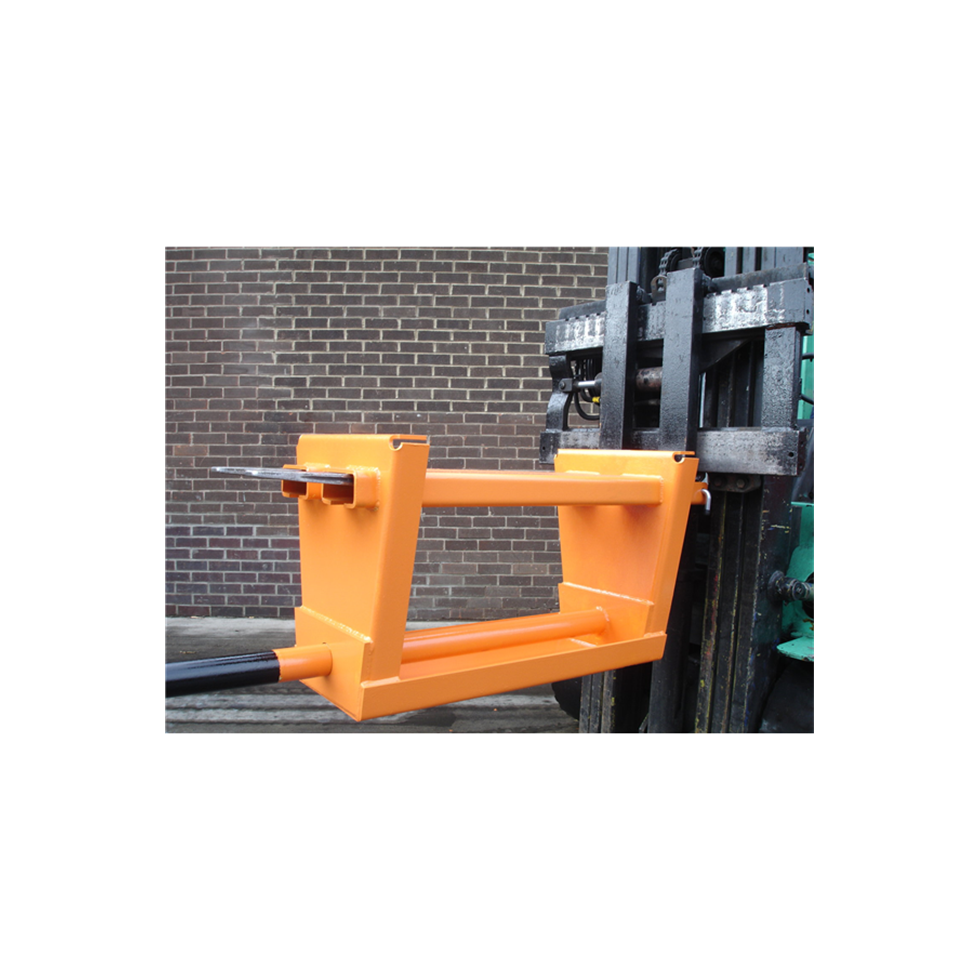

IFB-1 500kg x 3000mm Fork Mounted Pole
As with the Carriage Mounted Pole the Fork Mounted Pole is capable of lifting a variety of coiled products, but is usually used in low volume/occasion usage environment with a mixed pallet/coiled product application
Standard features:-
- High tensile machined pole with tapered tip to ease location into coiled product
- Free standing for ease of location
- Smooth surface finish to protect the intended load to be lifted

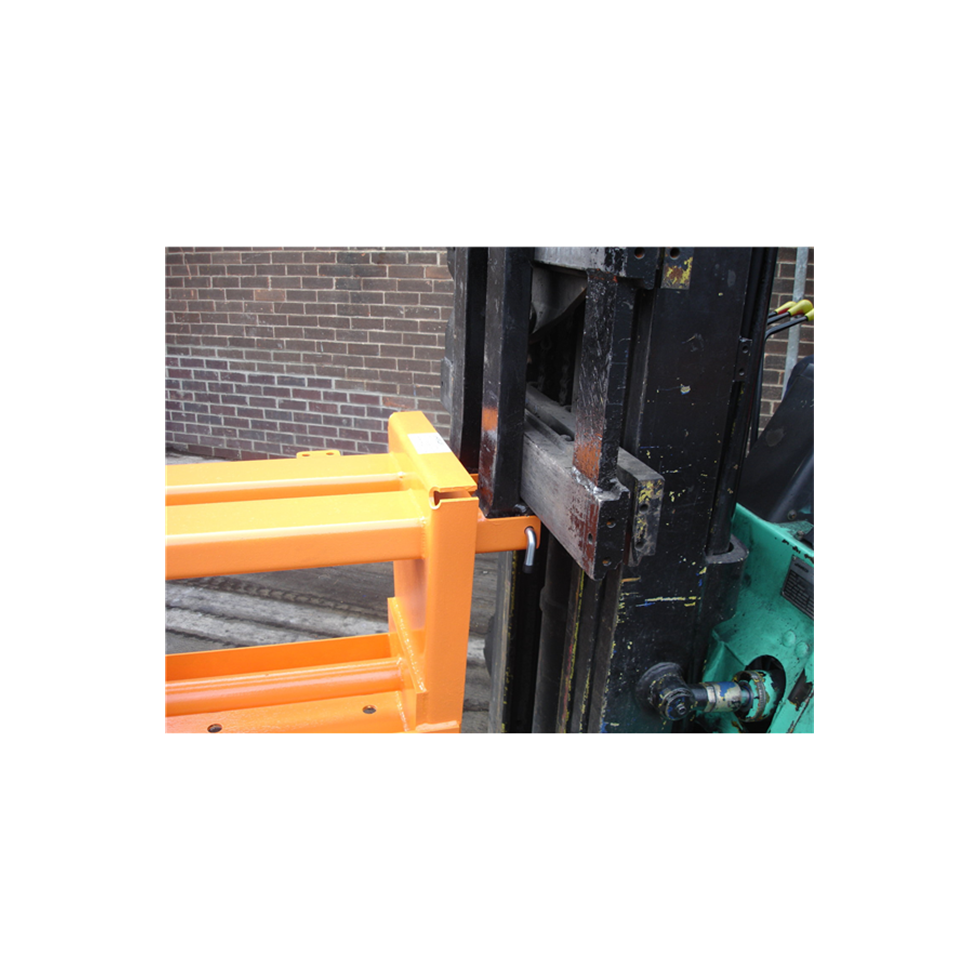

- Zinc plated heel pins for safe attachment to the truck
- Maximum fork section 125x50mm at 230 centres
- Painted bright orange for safety
Model: IFB-1
Boom diameter: 70mm
Effective length: 3000mm
Capacity: 500kg
Load centre: 2000mm
C of G: 790mm
LLC: 950mm
Weight: 210kg
DELIVERY IS 5-7 DAYS FROM DATE OF ORDER
