Hydrajaws Model 2008 Heavy Duty Anchor Pull Tester

HYDRAJAWS MODEL 2008 MID-HEAVY DUTY ANCHOR PULL TESTER

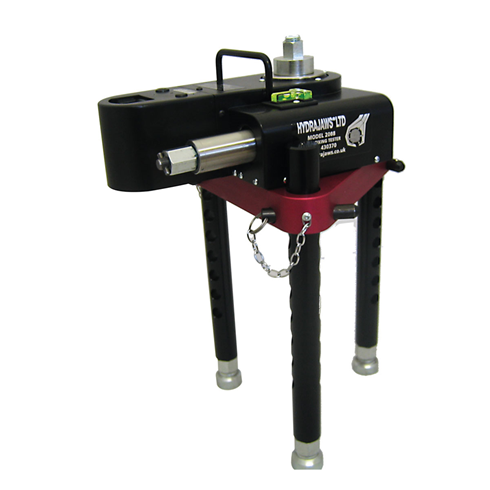

The postable self-contained 145kN Model 2008 Heavy Duty Tester has been designed to meet the demand for proof load testing of larger construction fixings

A lightweight triangular shape aluminium load spreading bridge has been designed specifically for the model 2008 tester and directs reaction loads away the fixing, this combined with the tester only weights 14kgs

Three fully adaptable telescopic aluminium legs are held in place with steel ball pins offering easy assembly and adjustment

The swivel feet offer 30mm of fine adjustment

A spirit level indicates the overall balance of the test rig

Load application is achieved via a ratchet handle driving a hydraulic multiplier and the applied load is recorded on a digital gauge which is integral with the tester

Applications:-

• Proof and failure load testing of most fixing types
• High load expanding and resin anchors
• Cast in sockets and channel
• Holding down bolts for stanchion base plates
• Base plate fixings for column lighting
• Anchorage for crash barrier and safety fences
• Anchorage for stadium crush barriers
• Bridge parapet anchors

Kit contents:-

• Model 2008 tester body
• Operating nut
• 0-145kN digital gauge
• Offset load spreading bridge with 10mm eye hook
• 3 Telescopic legs with fully adjustable swivel feet
• 400mm connecting ring M20
• M20 adjusting nut
• 22mm Ratchet spanner
• 5 Threaded adaptors: M12, M16, M20, M24 and M30
• Spirit level
• Allan keys and spare screws
• Carrying case
• Full operating instrucions
• Calibration certificate

DELIVERY IS 4-5 DAYS FROM DATE OF ORDER
