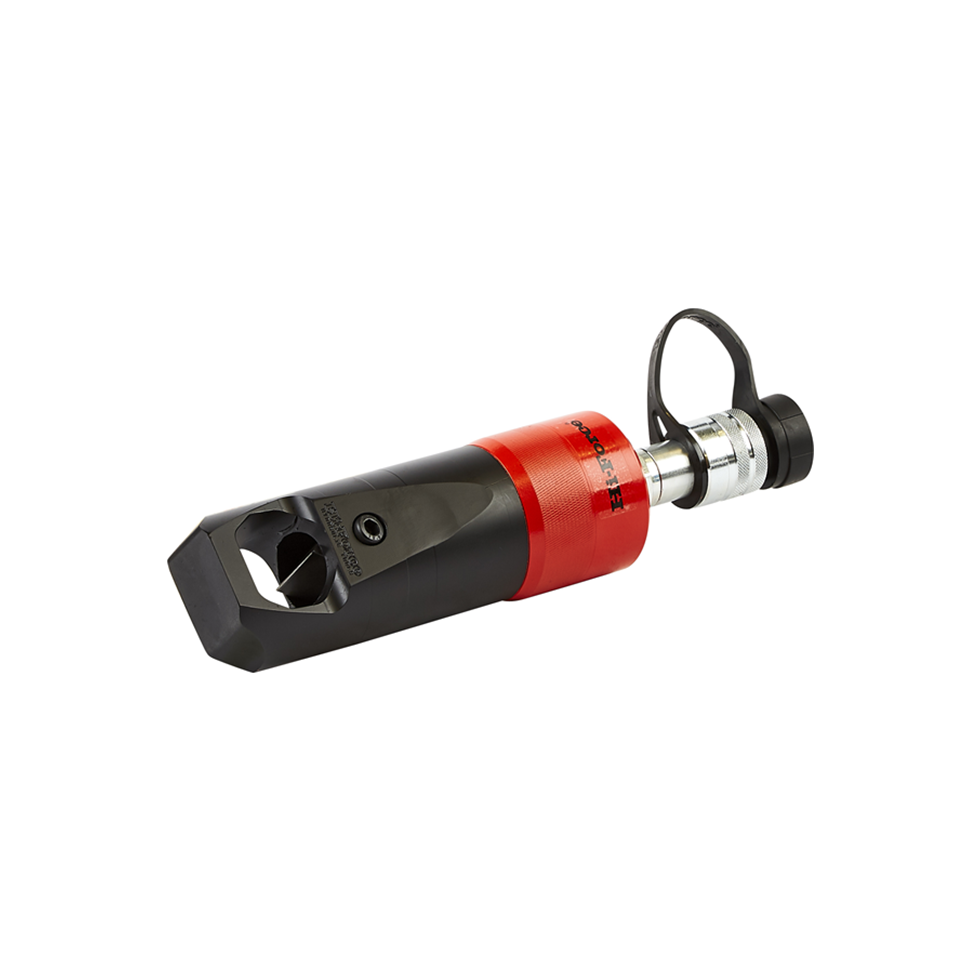

Hi-Force NS104 Hydraulic Nut Splitter 17-32mm

Hi-Force NS104 17-32mm Hydraulic Nut Splitter

Single acting, spring assisted return

Angled body design for increased clearance on flanges and flat surfaces

High quality steel construction

Suitable for splitting nuts up to RC44 hardness

Designed to fit on all API and ANSI flanges

Offers ideal ‘cold cut’ solution for applications where ‘hot work’ permits are not allowed

Steel linkage keeps blade cutting edge parallel to the nut throughout the splitting process

Compact and easy to use

Optional 360˚ positional swivel coupling for fitment in confined spaces

Model: NS104

Capacity: 16.3tonne

Oil capacity: 46cm³

Hexagon AF size: 17-32mm

Stud bolt thread size: M10-M22

Weight: 4kg

Note: NS nut splitters are for use on heavy duty nuts, where the nut height is equal to or greater than two-thirds of the blade length of the tool being used
