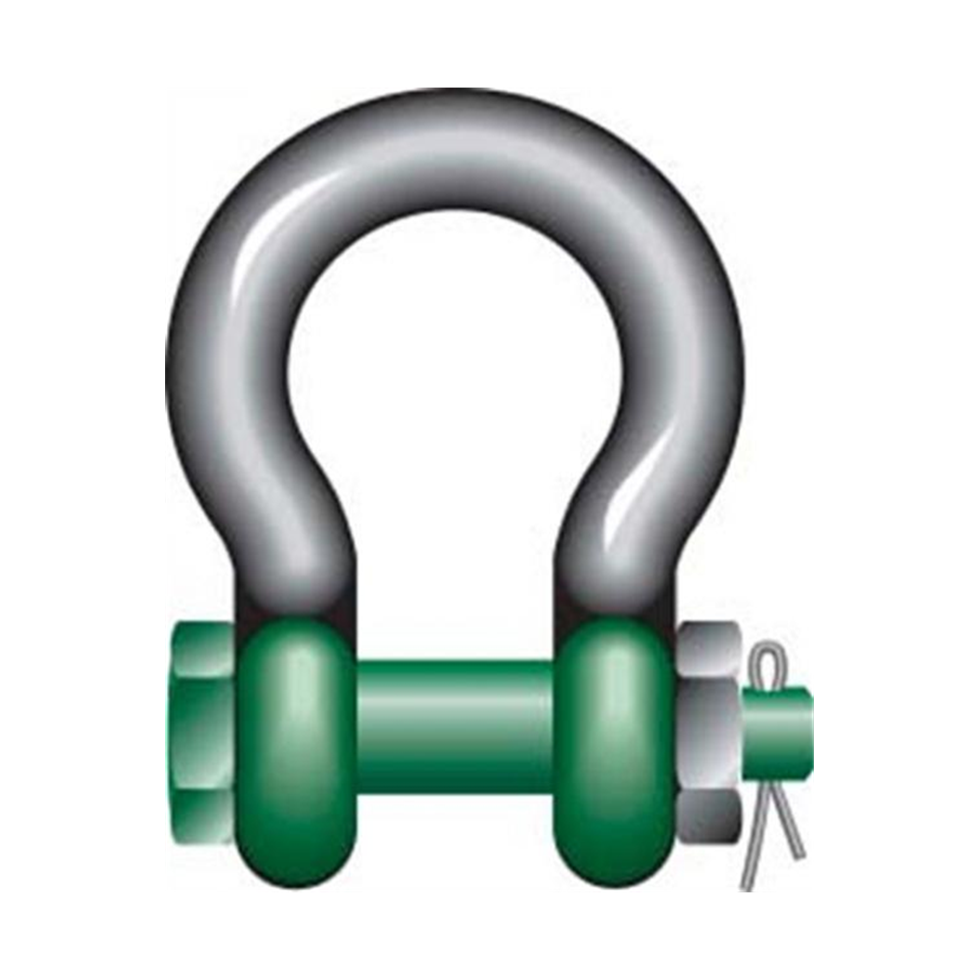

Green Pin 9.5ton Safety Pin "Polar" Bow Shackle

Green Pin 9.5ton Polar Safety Pin Bow Shackle

For use in extereme conditions from -60°c up to +200°c

Material: Grade 8 Alloy Steel body and pin, quenched and tempered

Safety factor: MBL equals 8 x WLL

Standard: EN 13889, ASME B30.26 and meets performance requirements of US Fed Spec. RR-C-271 Type IVA Class 3, Grade A

Finish: Hot dipped galvanised

Supplied with relevant certification

WLL: 9.5ton

Pin diameter: 32mm

Jaw width: 47mm

Internal length: 108mm

Weight: 3.66kg
