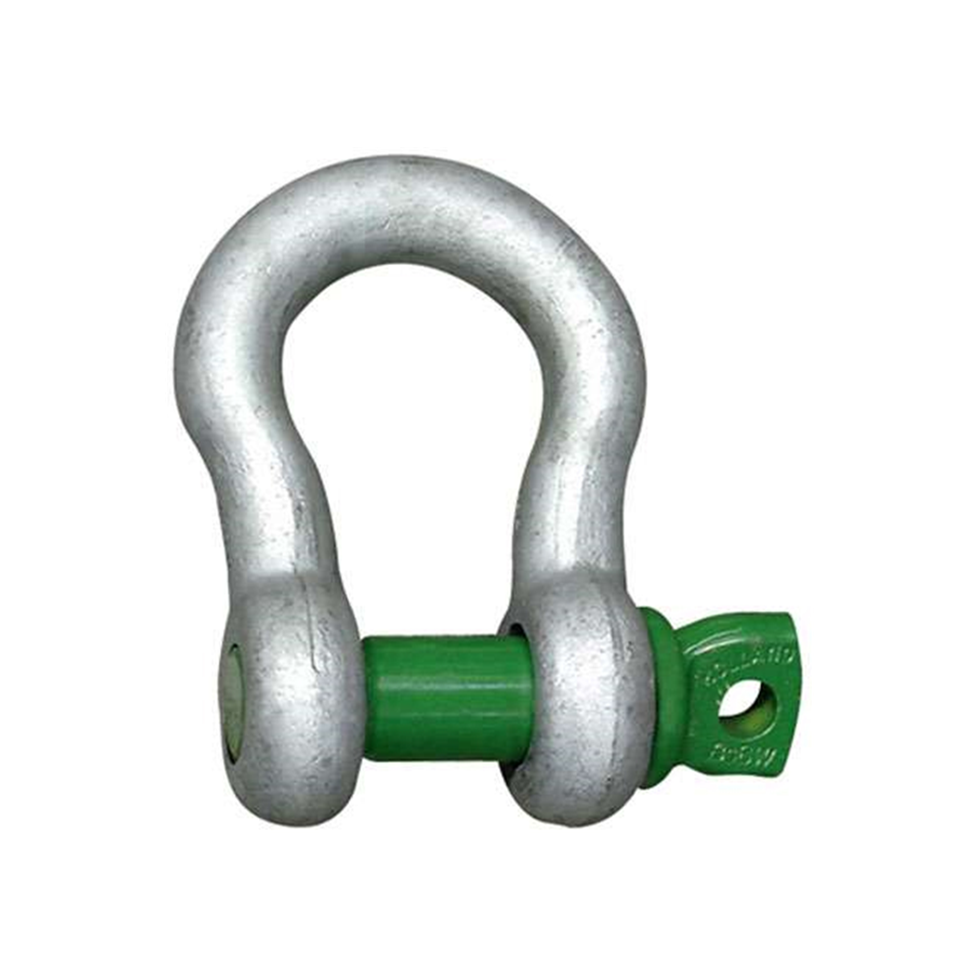

Green Pin 9.5ton Alloy Bow Shackle Screw Pin
Product Code: GPABS9.5TSCRNet Weight (Per Item): 3.16kg
GREEN PIN Screw Pin Alloy Bow Shackle
Grade 6 high tensile steel, quenched and tempered
Minimum breaking load is 6 times the W.L.L
Conforms to EN13889 and meets the performance of US Fed Spec RC-C-271 Type IVA class 2, Grade A
Hot dipped Galvanised
WLL: 9.5ton
Pin diameter: 32mm
Jaw width: 47mm
Internal length: 108mm
Fully certified
