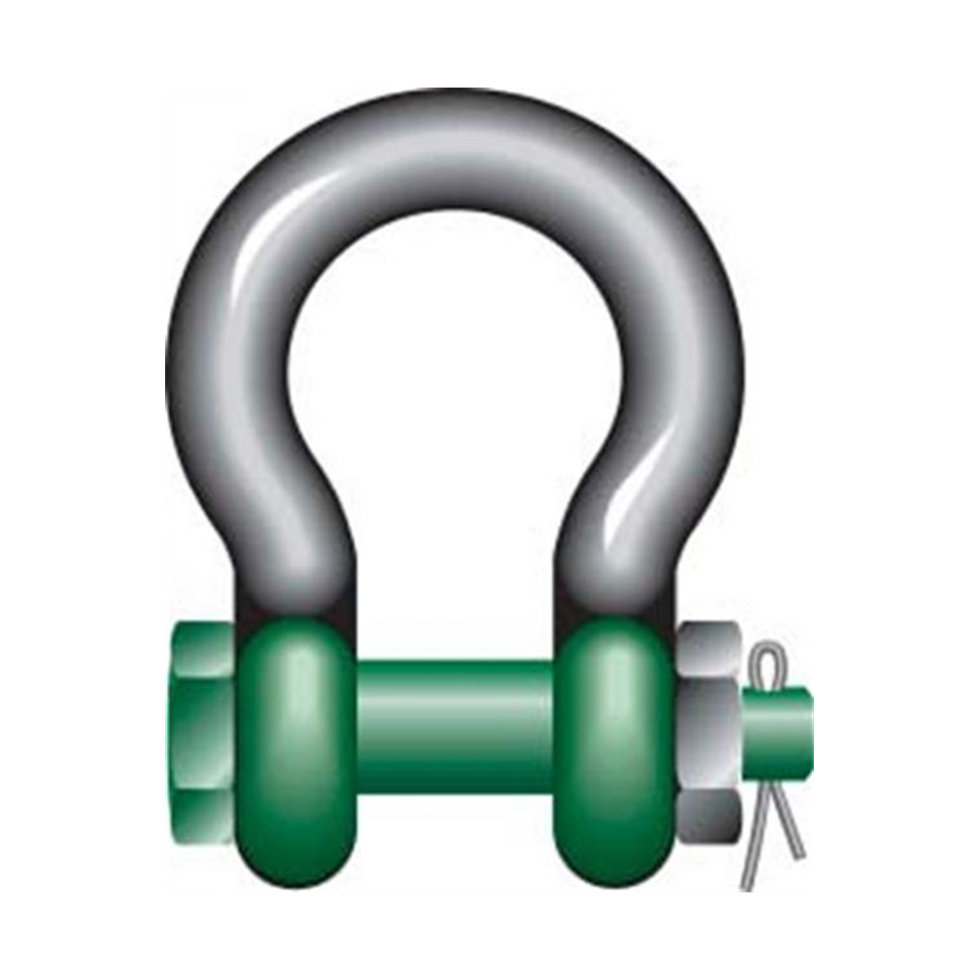

Green Pin 8.5ton Safety Pin "Polar" Bow Shackle

Green Pin 8.5ton Polar Safety Pin Bow Shackle

For use in extereme conditions from -60°c up to +200°c

Material: Grade 8 Alloy Steel body and pin, quenched and tempered

Safety factor: MBL equals 8 x WLL

Standard: EN 13889, ASME B30.26 and meets performance requirements of US Fed Spec. RR-C-271 Type IVA Class 3, Grade A

Finish: Hot dipped galvanised

Supplied with relevant certification

WLL: 8.5ton

Pin diameter: 28mm

Jaw width: 43mm

Internal length: 95mm

Weight: 2.58kg

Delivery Information

• This product is supplied directly from our Manufacturer Partner.
• Delivery of this product is 1-2 days from date of order.
