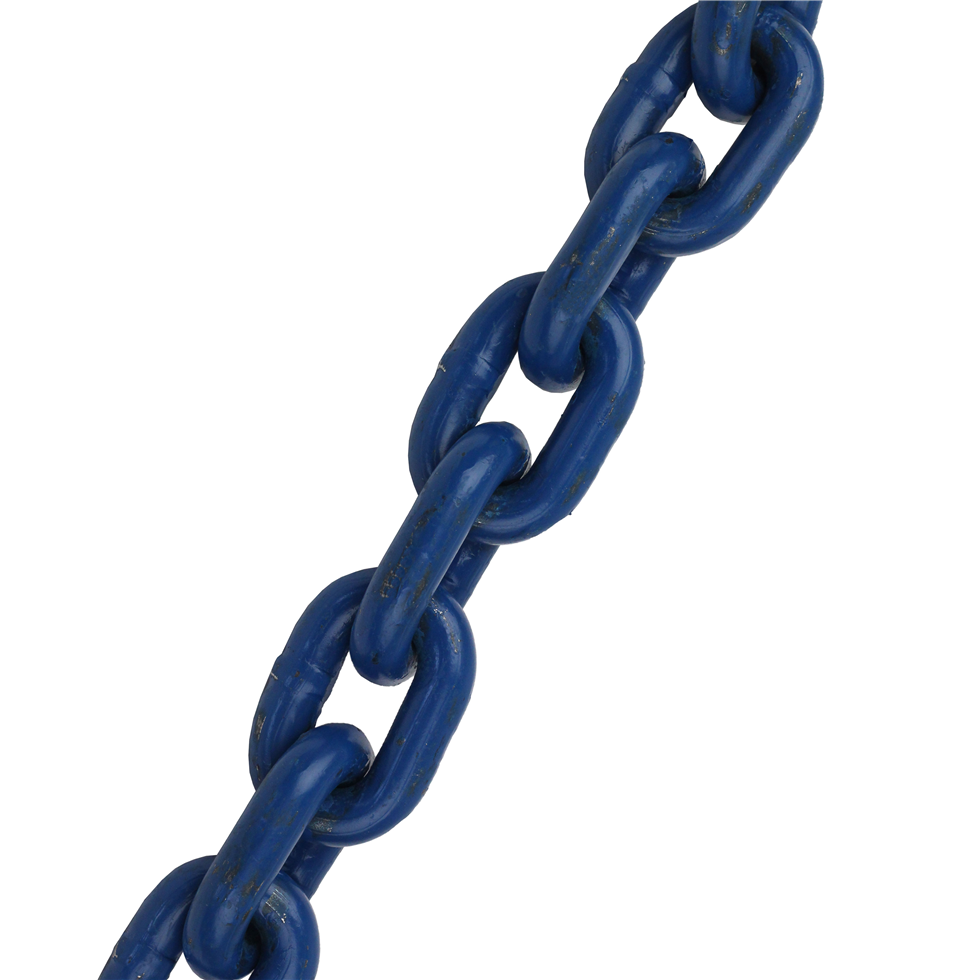

G100 Lifting Chain
Product Code: CHAIN-G10Net Weight (Per Item): 1.17kg
G100 Chain
G100 offers a 25% greater lifting capacity for the same size G80 Chain & Components
* Minimum breaking load is 4 times the W.L.L
| Size | SWL | Chain Link Dimen. |
Weight per/ Mtr |
|---|---|---|---|
| 6mm | 1.4 tonne | 6 x 18mm | 0.8kg |
| 8mm | 2.5 tonne | 8 x 24mm | 1.5kg |
| 10mm | 4 tonne | 10 x 30mm | 2.3kg |
| 13mm | 6.7 tonne | 13 x 39mm | 3.9kg |
| 16mm | 10 tonne |
* Manufactured from G100 Alloy Steel
* Blue painted finish
* Conforms to BS EN 818-2
* Supplied with relevant Certification
NB - the price is per mtr
