G-Force AT198 Anchorage Point with Shock Absorber for Sheet Metal
Product Code: GF-AT198-001Net Weight (Per Item): 0.3kg
G-Force AT198 Anchorage Point with Shock Absorber for Sheet Metal
The AT198 is a stainless steel anchor point designed for up to 3 users

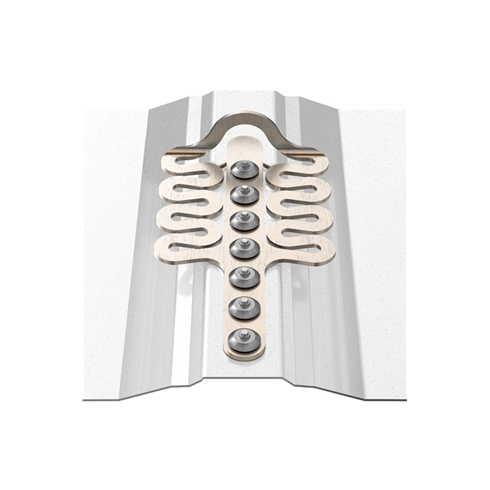

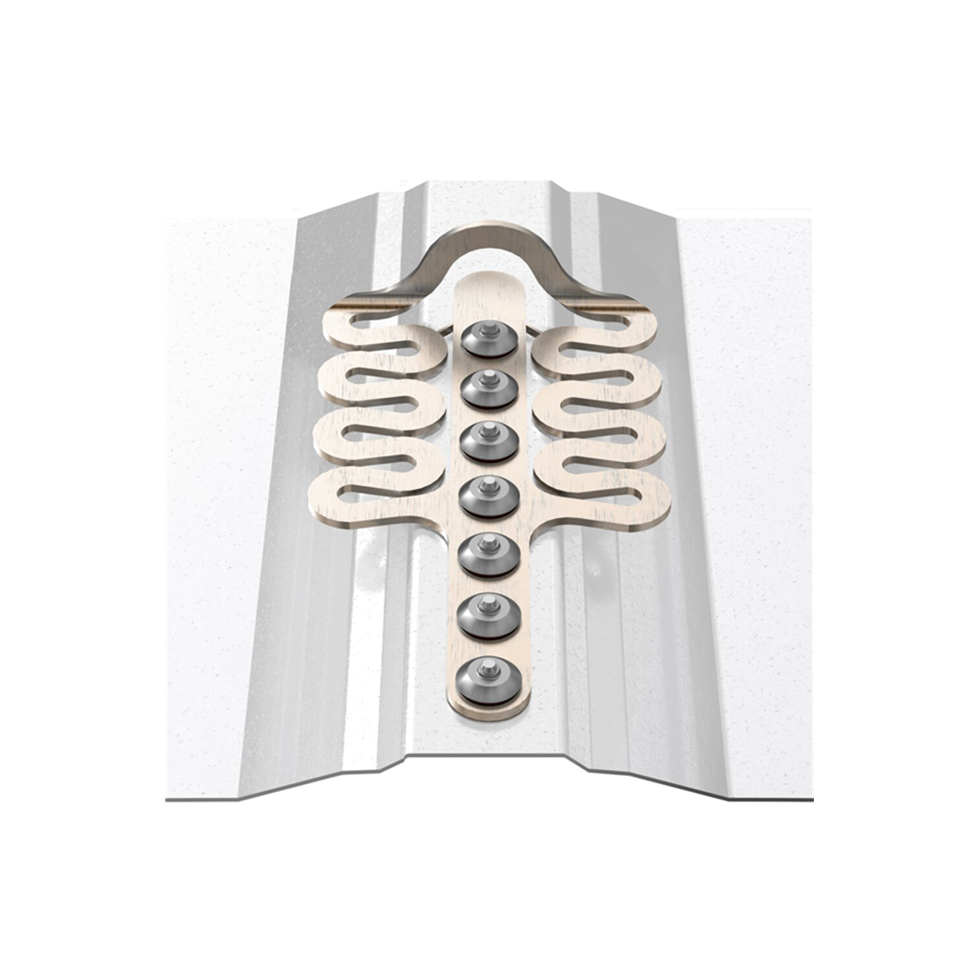

This anchor point is designed to be fixed directly to trapezoidal metal sheets

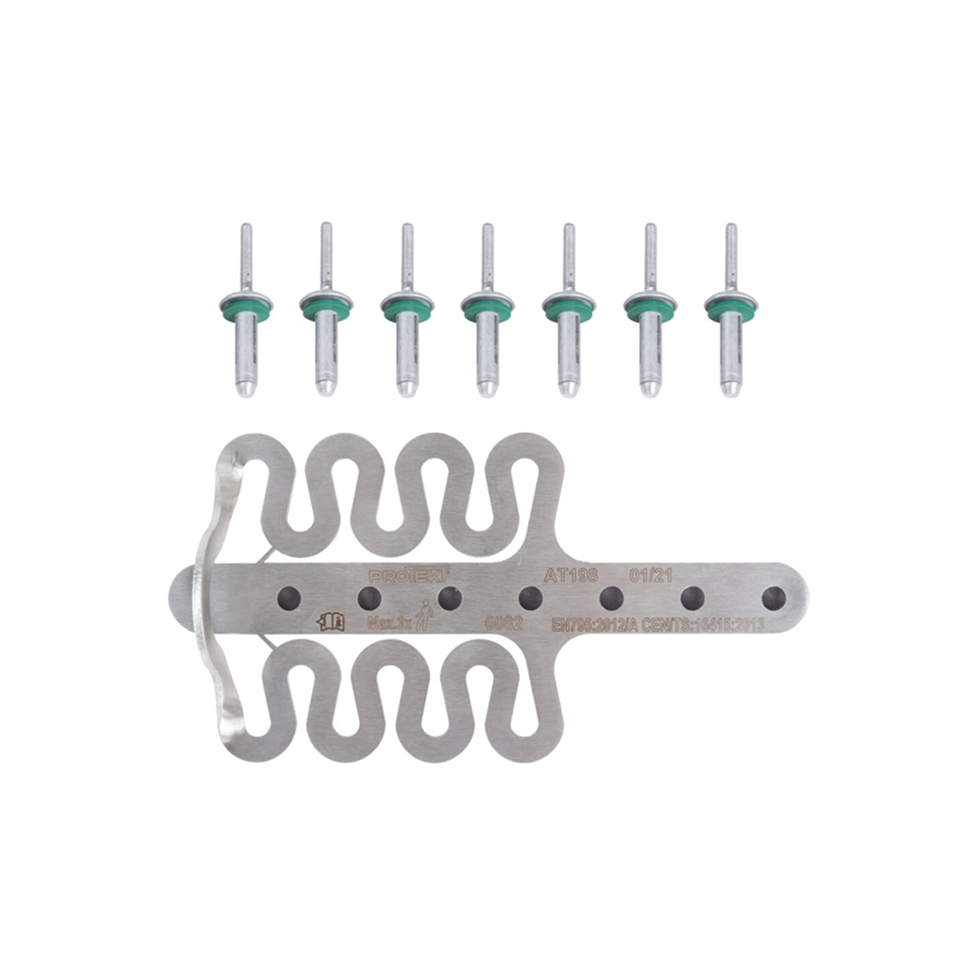

The kit comprises of the AT198 stainless steel anchor point and 7 rivets
Suitable profiled sheeting:-
- Over 0.5mm for steel sheet
- Over 0.7mm for aluminium sheet
Material: Stainless Steel AISI 304
Dimensions: 215 x 111 x 35mm
Anchor weight: 0.28kg
Static strength: 14kN
Fixing hole diameter: 8mm (x7)
Max number of users: 3
Conforms to EN795:A
