Drum-Roll JUMBO Cable Drum Roller - Max Capacity 1500kg

Drum-Roll JUMBO Cable Drum Roller - Max Capacity 1500kg

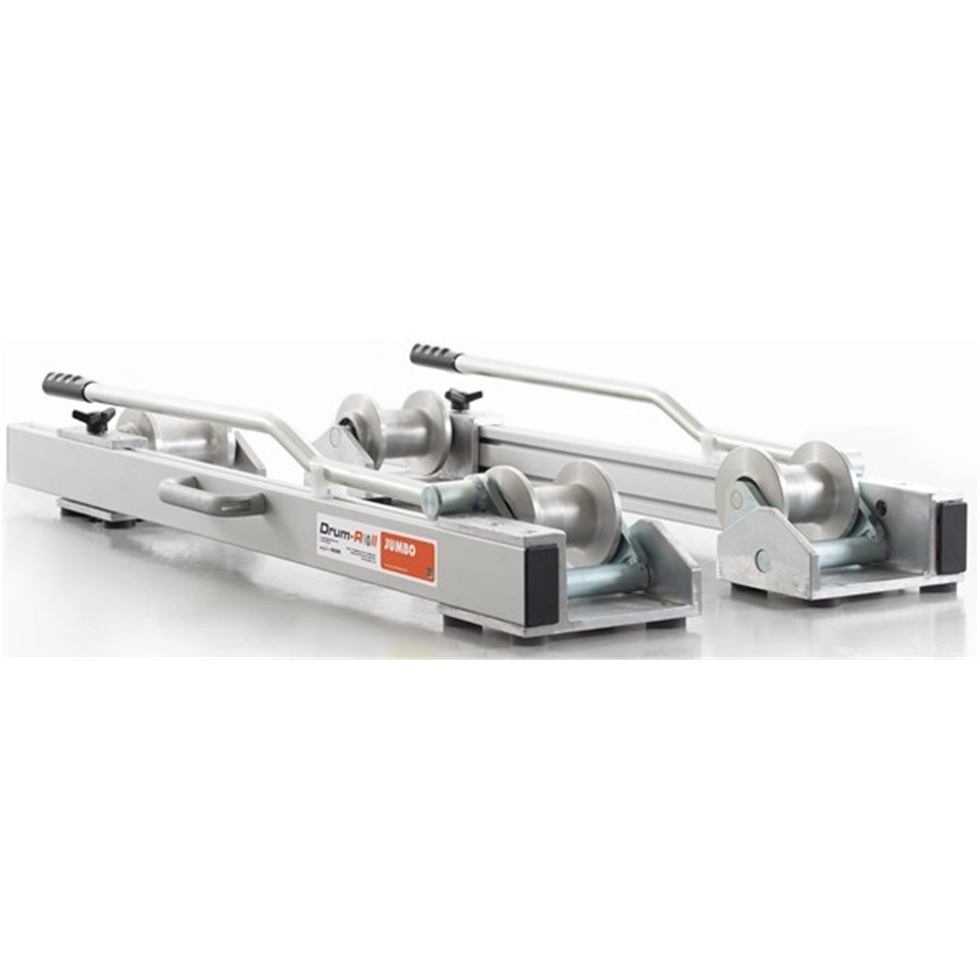

The JUMBO stands out for its quick and effortless drum-to-drum change capability. It can be conveniently moved to the required location and assembled with ease. The JUMBO is compatible with drums that have a diameter of up to 1.80mtrs and can be transported either by forklift or manually

To assemble, place the two JUMBO sections on either side of the cable drum, adjust the movable counter rollers to match the cable drum‘s diameter, and use the simple lever mechanism to lift the cable drum into the unwinding position

The JUMBO features a durable all-metal construction with maintenance-free ball bearings, ensuring a long-lasting service life

Compact and Portable: JUMBO's two-part construction allows for easy setup and positioning in narrow spaces. It can be quickly assembled and disassembled, making it highly portable and adaptable to different work environments.

Quick Drum Change: JUMBO offers quick and easy drum changeovers, allowing for seamless transitions between different cable types or projects. This feature significantly reduces downtime and increases productivity.

Convenient Drum Placement: The cable drum can be easily moved to the desired location using a forklift or by manually rolling it by hand. This flexibility ensures that JUMBO can be set up exactly where it is needed for efficient cable unwinding.

Adjustable Counter-Rollers: JUMBO features movable counter-rollers that can be adjusted according to the diameter of the cable drum. This ensures a secure and stable setup, preventing cable tangling or slippage during the unwinding process.

Easy Drum Positioning: Using a simple lever mechanism, the drum can be slightly raised into its optimal unwinding position, allowing for smooth and controlled cable feeding during installation.

Durable Construction: JUMBO is built with a stable aluminium and steel construction, ensuring longevity and durability even in demanding work environments. The system incorporates maintenance-free ball-bearing rollers, further enhancing its reliability and lifespan.

Functional Design: JUMBO's ingenious design provides full functionality, enabling efficient and hassle-free cable unwinding. The combination of stability, ease of use, and versatility makes JUMBO an ideal choice for handling heavy cables

Technical Data:-

• Load-bearing capacity: 1500kg
• Max uncoiling weight of wooden drums: 700kg
• Drum diameter min: 500mm
• Drum diameter max: 1800mm
• Weight per element: 17kg
• Dimensions: 277mm (W) x 1206mm (L) x 195mm (H)
