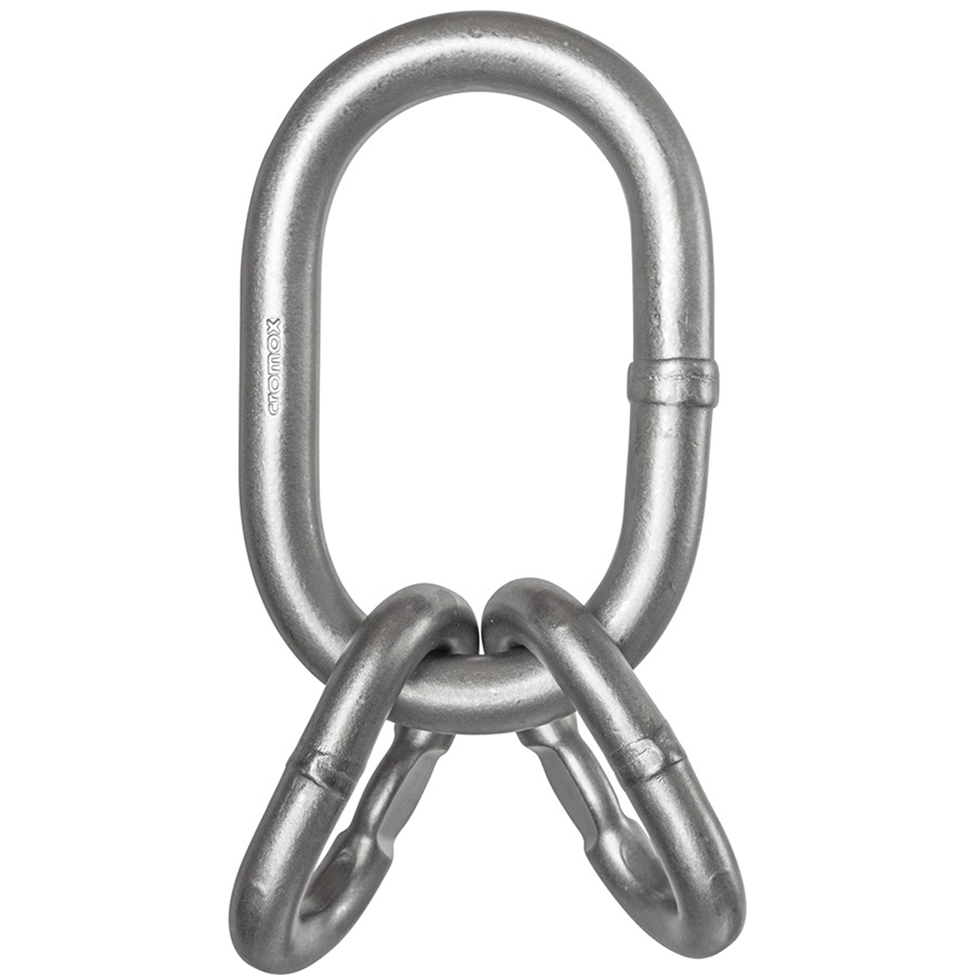

Cromox 22/18 Grade 60 Stainless Steel Sub-Assembly

Cromox 22/18 Grade 60 Stainless Steel Sub-Assembly

Cromox Stainless Steel Master Links and Sub-Assemblies are used in hoists and as an adaptive solution within LIFTING applications

They are manufactured by machine with the utmost precision

With their corrosion resistance and high-quality surface, they are ideal for use in clean rooms, the food industry, meat processing, the chemical industry, and the pharmaceutical sector

The oval rings made of stainless steel also impress with their long-term resistance in offshore applications when used in salt water or in pickling plants in contact with acids

All Cromox Masterlinks have something in common:-

• Made from 1.4462 Duplex / AISI 318LN stainless steel
• Optionally with flat point for mounting connecting shackles
• Correspond to Grade 60

Part code: CAK-22/18

Master Ring diameter: 22mm

Sub Ring diameter: 18mm

Master Ring Inside width: 90mm

Sub Ring Inside width: 40mm

Master Ring Inside length: 160mm

Sub Ring Inside width: 85mm

WLL: 5.15tonne (45°), 3.65tonne (60°)

For Chain: 10mm

Weight: 2.76kg

Delivery Information

• This product is supplied directly from our Manufacturer Partner.
• Delivery of this product is 2-3 days from date of order.
