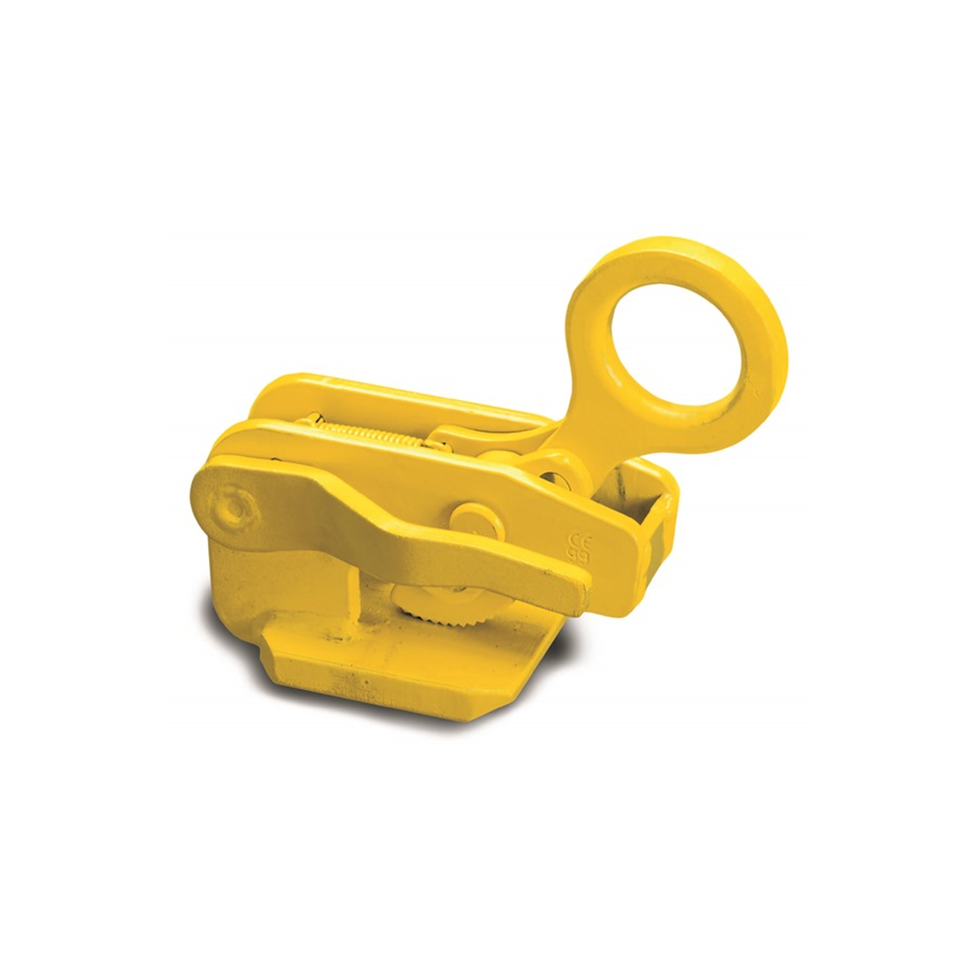

CAMLOK THS Loading Horizontal Plate Clamp

CAMLOK THS Loading Horizontal Plate Clamp

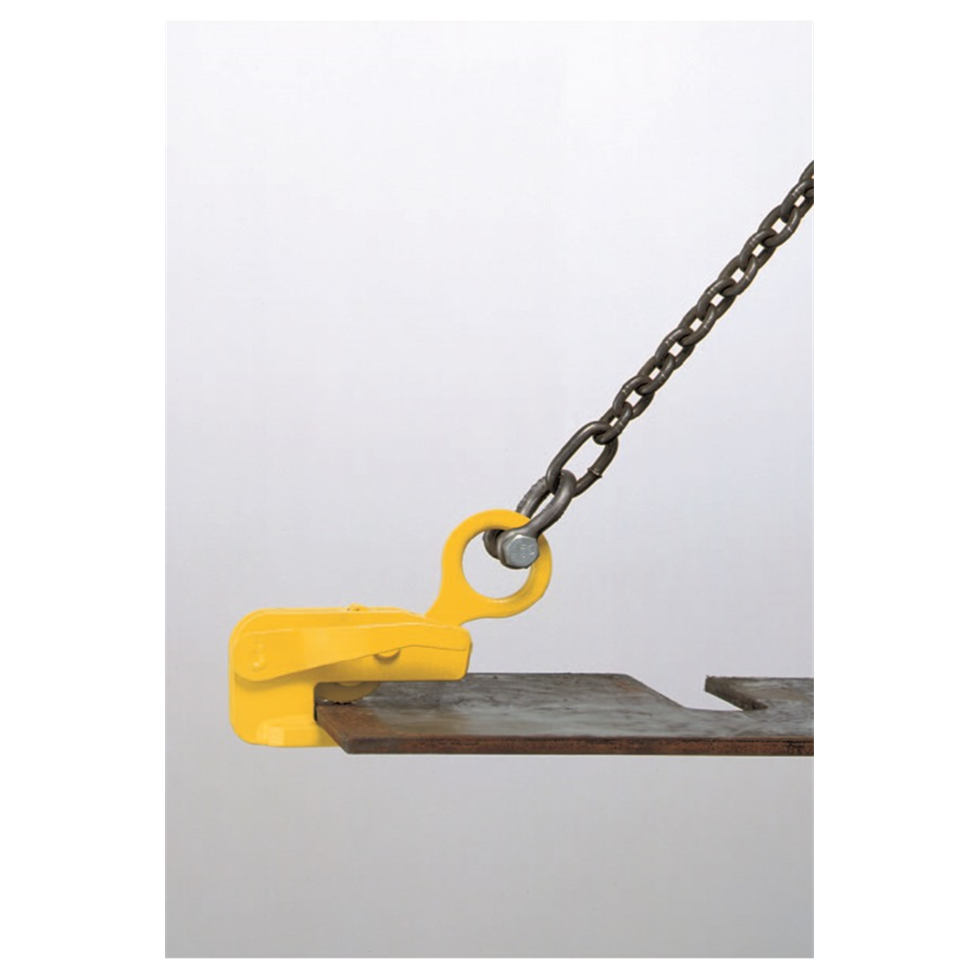

The THS Horizontal Plate Clamps are specifically designed to be used when loading plates horizontally into presses, shears, guillotines and other industrial machines or where the CH Clamps are not suitable

The unique design of the THS allows them to be used individually when loading plate.  However, when transporting plate horizontally the THS Clamps should be used in pairs

Other features of this Clamp include a spring loaded safety lock that ensures the Clamp remains on the plate in the unloaded position prior to lifting.  Maximum plate surface hardness 300 Brinell / 32 Rockwell C

These Plate Clamps are service-friendly, making it easy to exchange parts, which are readily available.  Clamp repairs must be done by a trained person

Please note:- When used in pairs the angle from the vertical must not exceed 30°

Available in two sizes: THS750 (750kg) and THS1500 (1500kg)

Please see attached data sheets for sizes and dimensions
