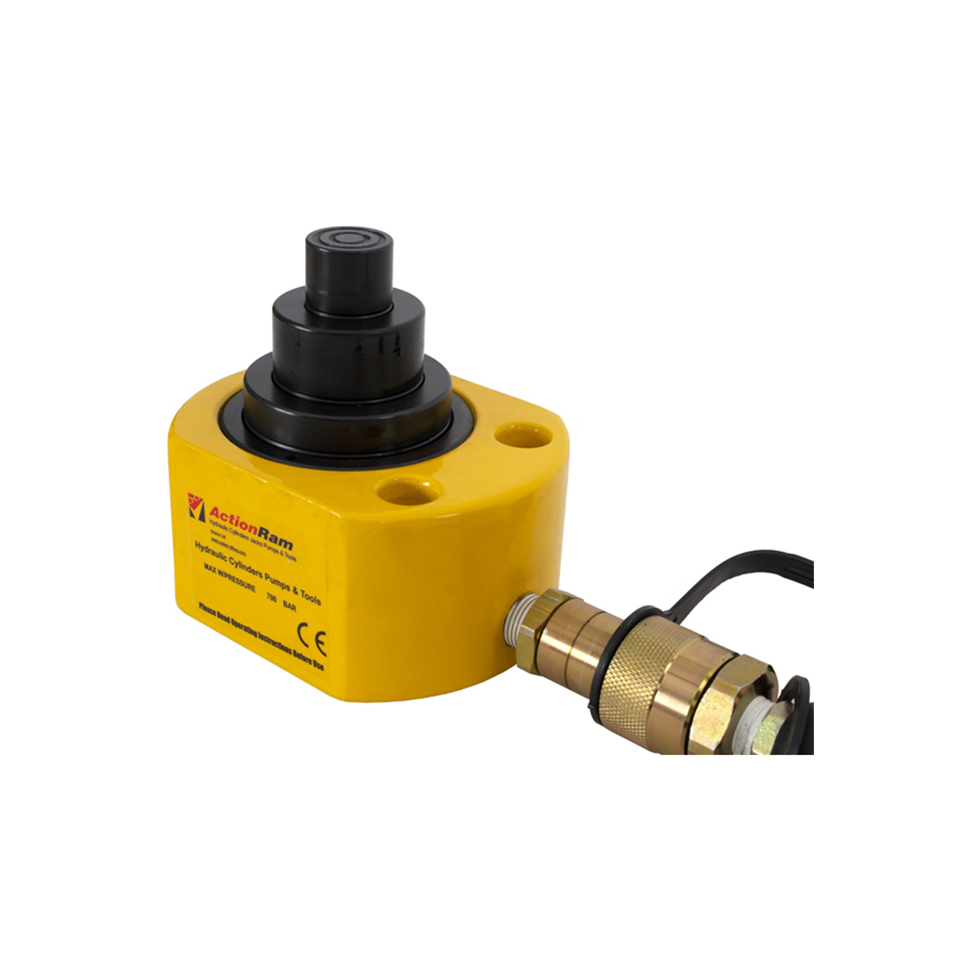

ActionRam Hydraulic Telescopic Low Height Pad Jack 11.1-100tonne

For use in confined spaces such as machinery positioning, tool fastening etc....

Three stage lift

Single acting, load return

High strength alloy steel for durability

Chrome plated piston resists wear and corrosion

Female coupling

Mounting holes permit easy fixturing

Maximum pressure 700 Bar

Recommended Hand Pump to operate this is HHB-700

Model: HHYG-100D

Capacity: 100.2tonne (Stage 1), 30.9tonne (Stage 2), 11.1tonne (Stage 3)

Total stroke: 69mm (15mm Stage 1, 30mm Stage 2, 24mm Stage 3)

Closed height: 93mm

Extended height: 162mm

Outside diameter: 188mm x 160mm (D x L)

Oil capacity: 418cm³

Weight: 16.9kg
