Abtech Safety CST2KIT Confined Space Tripod Kit

Abtech Safety CST2KIT Confined Space Tripod Kit

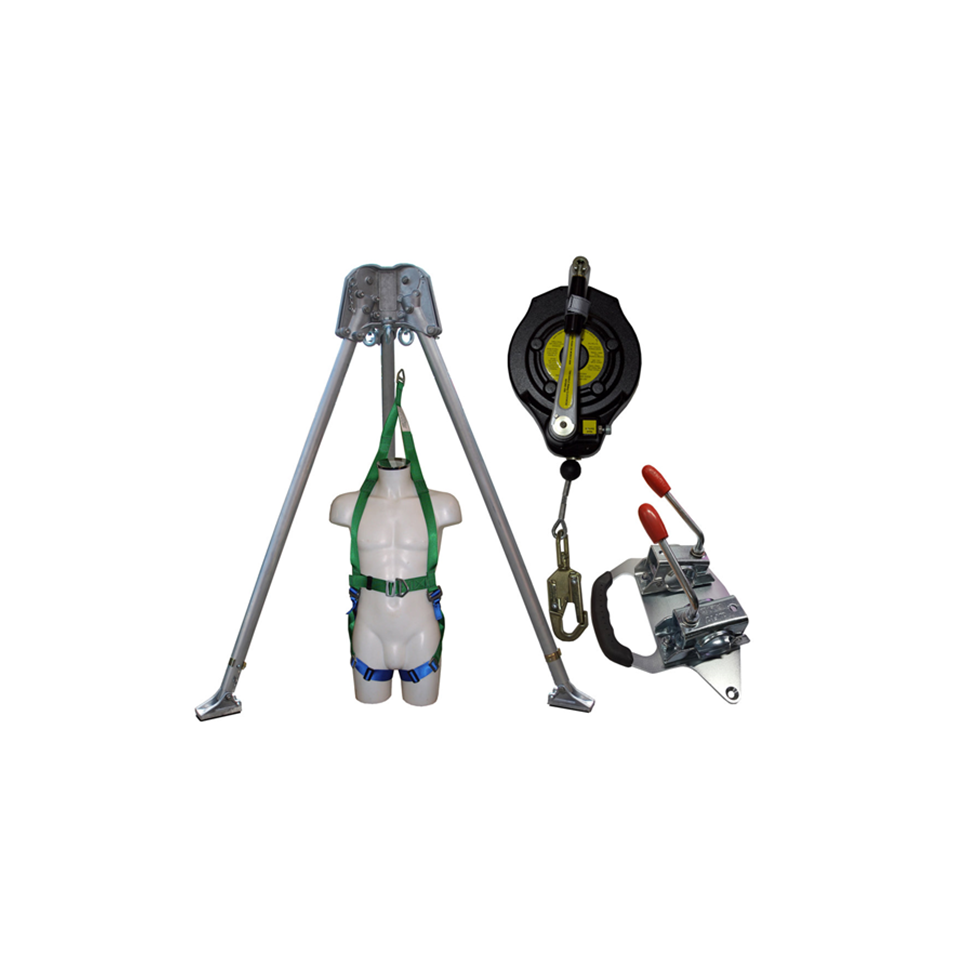

This Confined Space Tripod Kit comprises of the following:-

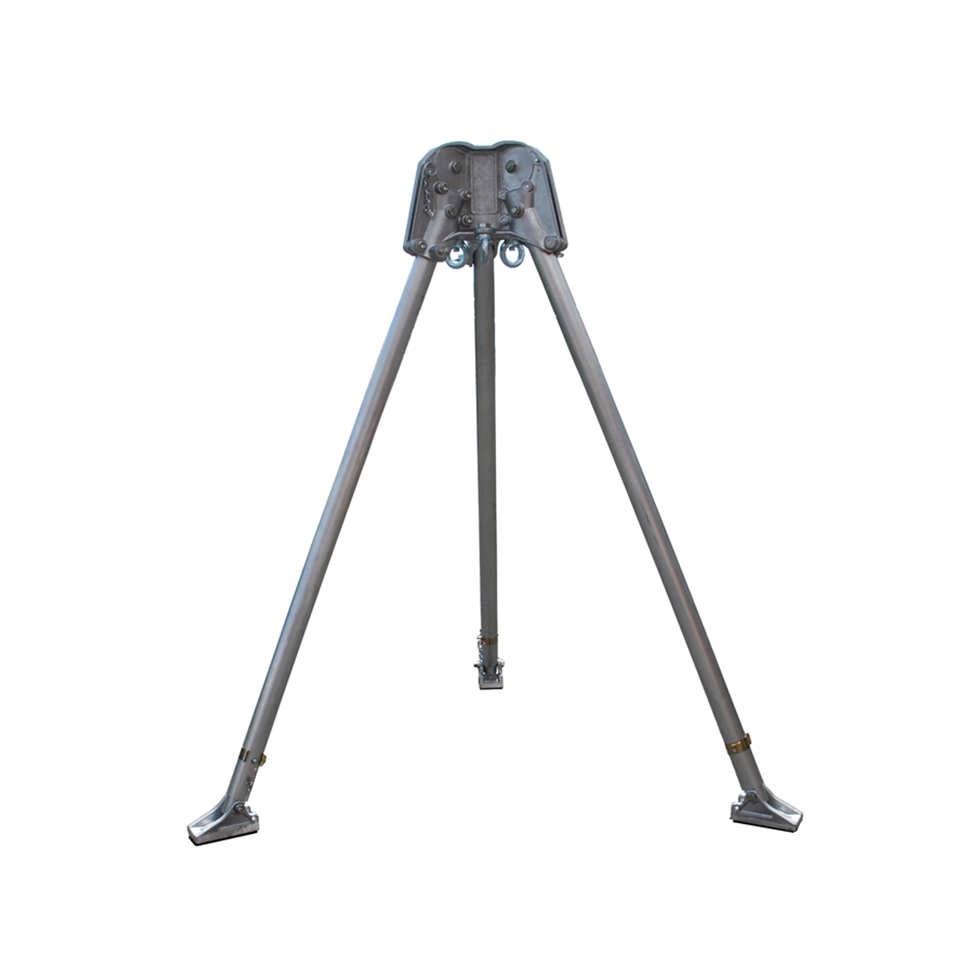

T3 Tripod

The tripod is the basis of a confined space entry and rescue system giving a strong, stable and portable anchorage point for fall arrest and recovery systems. One worker can carry and erect the sturdy but lightweight aluminium alloy tripod

For stability, the tripod legs may be individually adjusted

The T3 has 6 anchor points tested to EN795. The 3 overhead pulleys hold up to 11mm rope. The extra anchor points may be used with pulleys for a double roped rescuer, back-up system, airlines, communication lines, medical kits, tools etc

Features:-

Designed for 2 persons, SWL 250Kg 6:1 safety ratio
3x Overhead Pulleys
3x Underslung Eyes
Adjustable from 140cm - 240cm
Leg span: 110cm - 170cm
Certified to EN795 Type B
Weight: 19.4kg

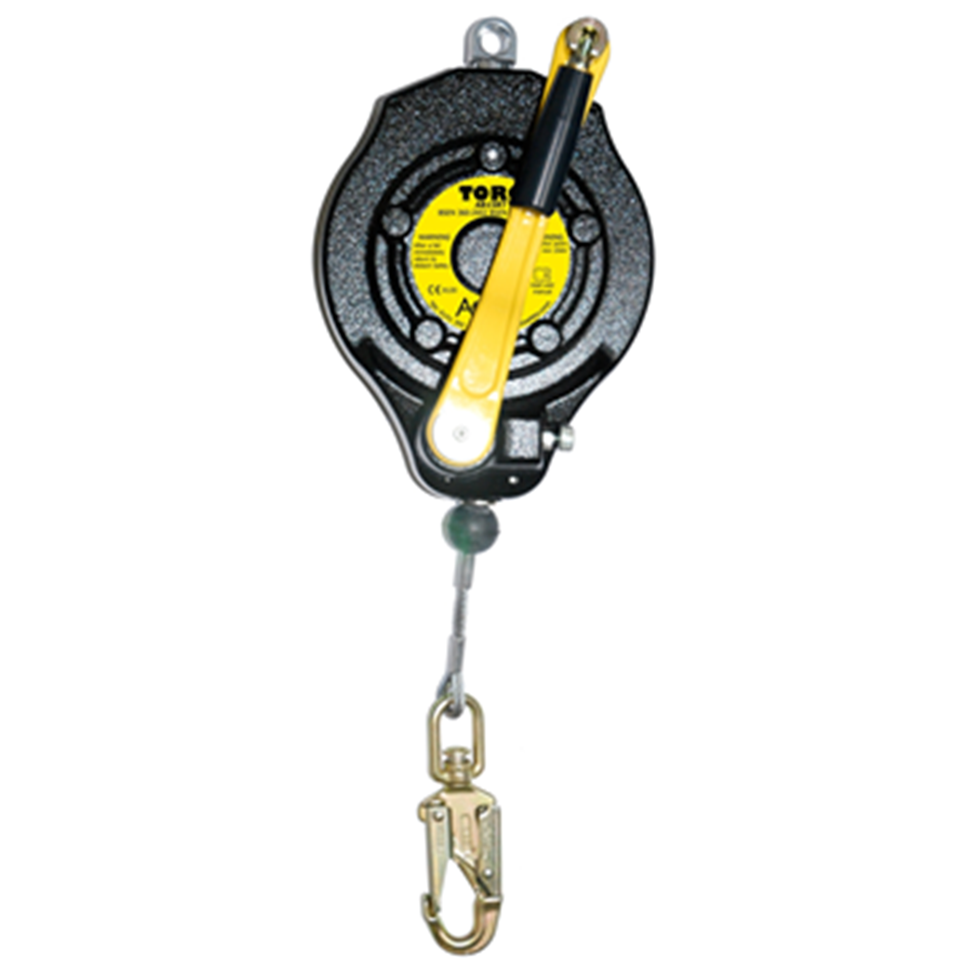

AB15RT 15mtr Fall Arrest Winch

The TORQ 15m Fall Arrest Recovery Device is designed to provide fall protection from falls from height

Anchored above the user, it gives the user a safe area of work

The retracting line pays in and out of the device as the user moves

In the event of a fall, a brake engages, arresting the fall of the user with a controlled deceleration force

The AB15RT has an integral winch mechanism, so in the event of a fall, the top man will be able to raise or lower the user to a safe area

Swivel anchor eye on top

Cable: 15mtr x 5mm Galvanised Steel

Maximum user weight: 150kg

Weight: 10.4kg

Conforms to EN360, EN1496

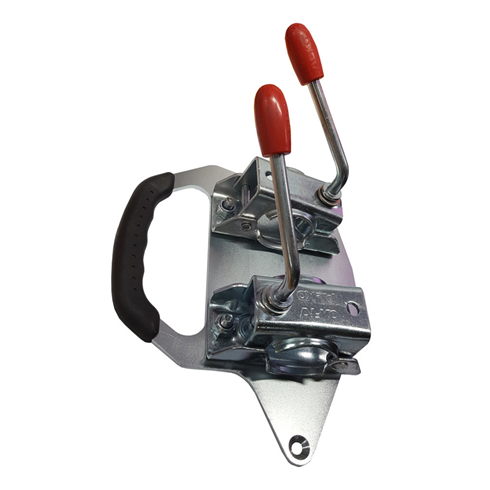

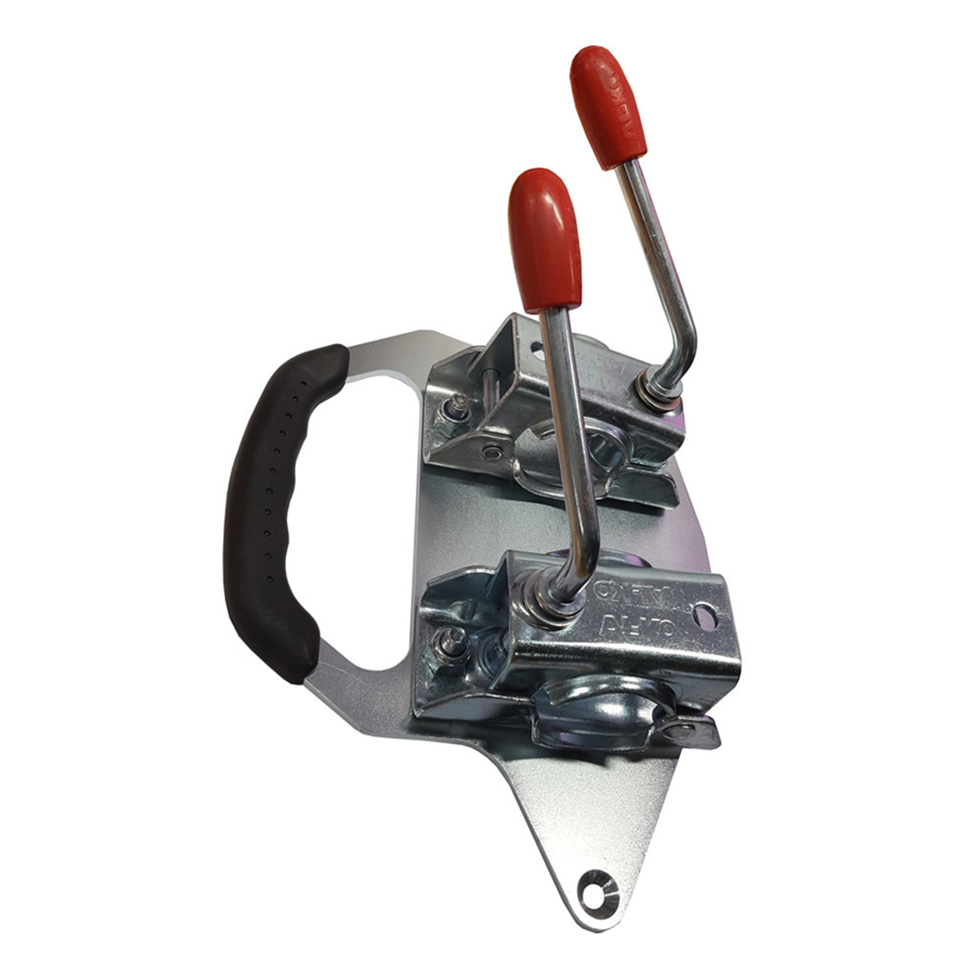

T05T Bracket

The T05T Bracket attaches the AB15RT Winch to the T3 Tripod

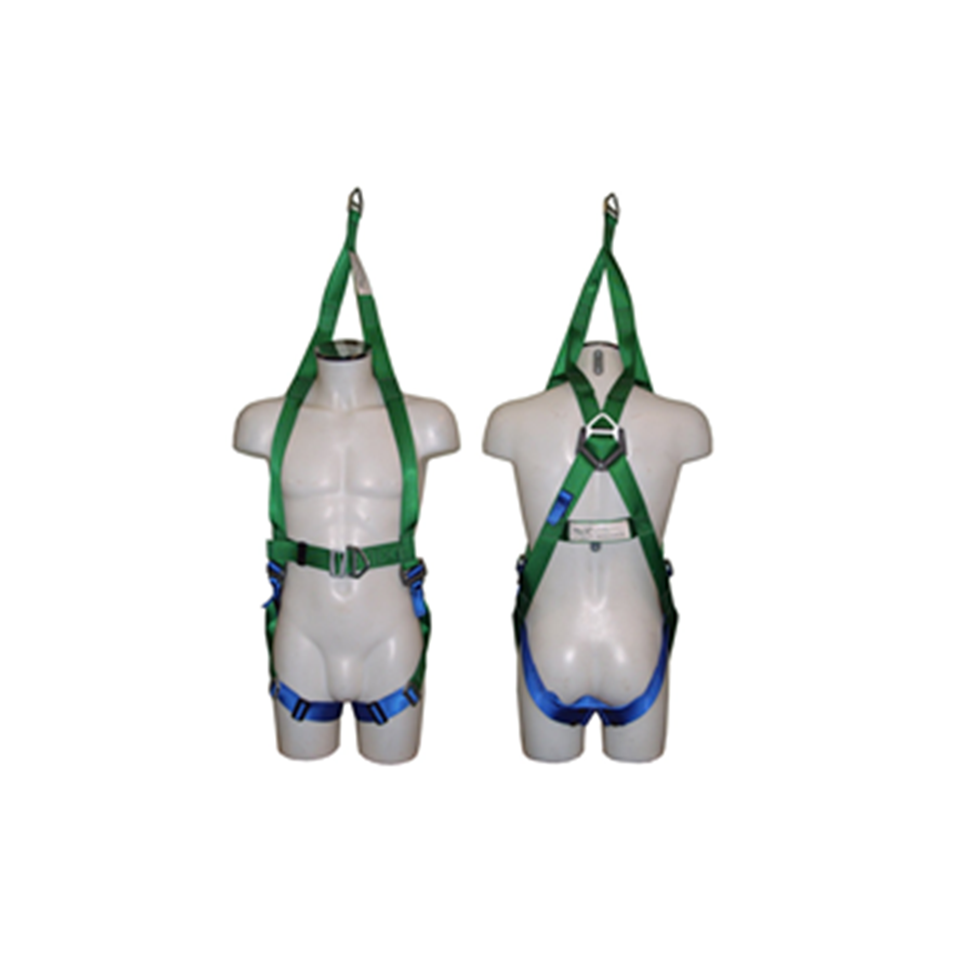

ABRES Rescue Harness

The Abtech ABRES is a full body harness with three attachment points, a dorsal (rear) and chest attachment points both suitable for fall arrest and an extended attachment point, which maintains the user at a near vertical suspension when being lifted or lowered in a work or rescue situation with limited access

Suitable for general work applications where there is a risk of falling and working in confined spaces

Maximum user weight: 150kg

Conforms to EN361, EN1497
