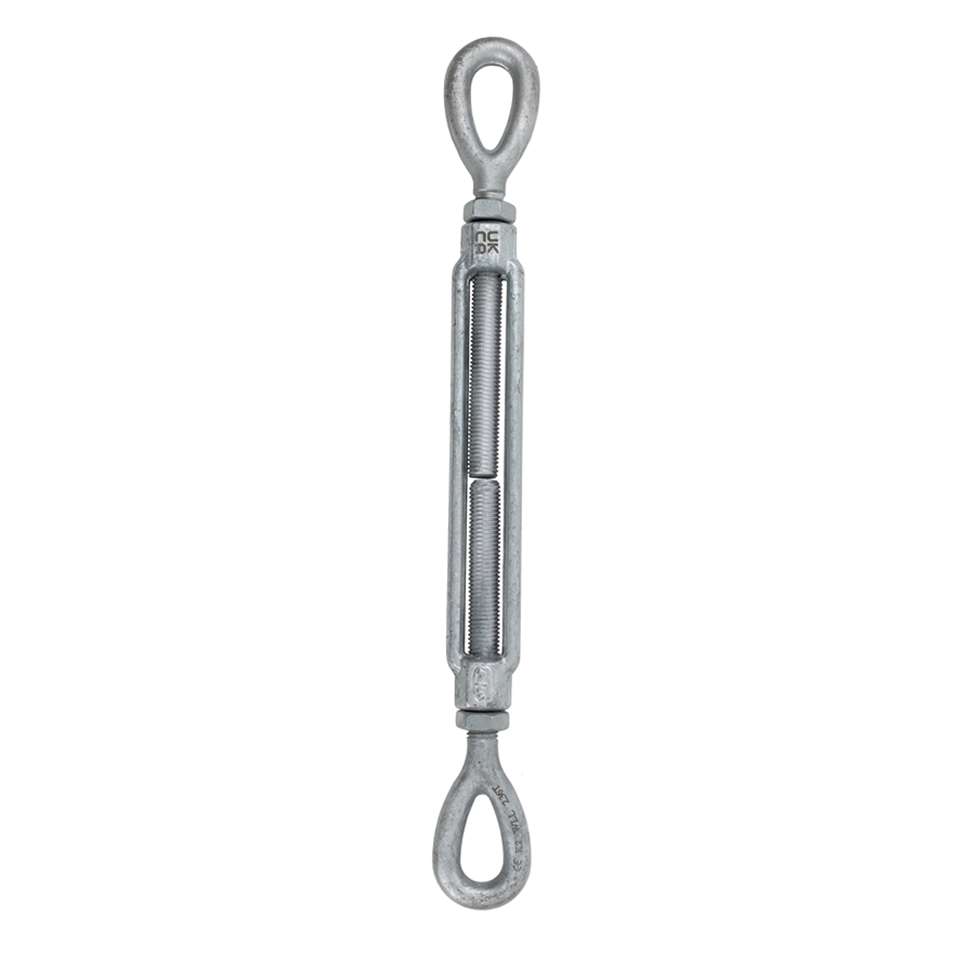

5/8" x 6" Galvanised Eye/Eye Turnbuckle WLL:1.59tonne

5/8" x 6" Galvanised Eye/Eye Turnbuckle WLL:1.59tonne

Drop forged, high tensile 1045 steel

Hot dipped galvanised finish

Meets the performance requirements of ASTM F1145-92 (formally US Fed.Spec.FF-T-791b)

Proof load tested to 2.5 times the WLL

Minimum breaking load is 5 times the WLL

Eye/Eye end fittings

Supplied with lock nuts

• WLL: 1.59tonne
• Size: 5/8"
• Take up: 6"
• Open length: 550mm
• Closed length: 398mm
• Body length: 203mm
• Internal eye dimensions: 45mm (L) x 22.5mm (W)
• Weight: 1.17kg
