2000kg Aluminium Gantry, 6mtr beam, 2200-3600mm
Product Code: ALU-GAN-M-6MNet Weight (Per Item): 180.5kg

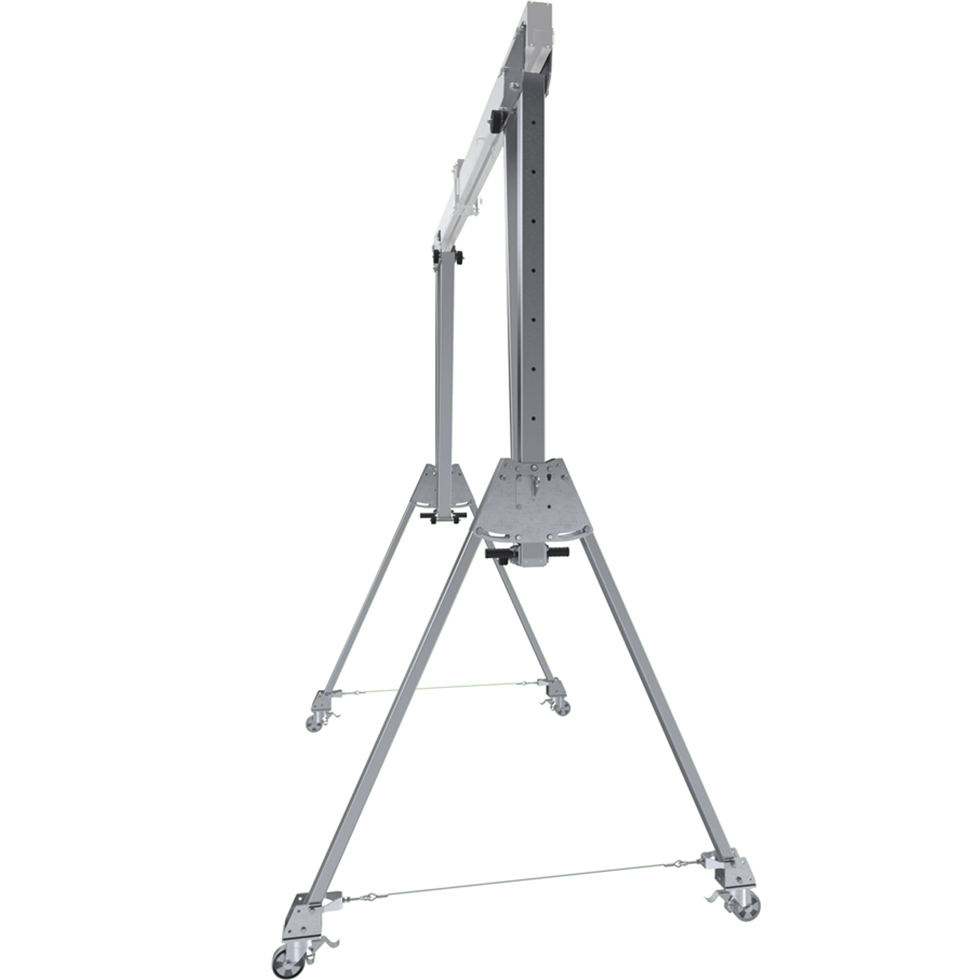

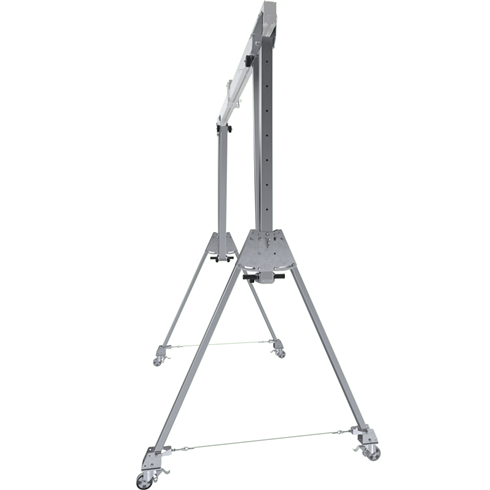

The Easy-Rig Aluminium Gantry is a complete, lightweight, fully customizable portable device designed for lifting loads
This Gantry is ideal for lifting applications such as confined spaces, silos, rooftops, lift-shafts, water treatment works, clean environments and many more
Supplied as two A-Frames and one Beam, this Gantry is lightweight and easy to transport

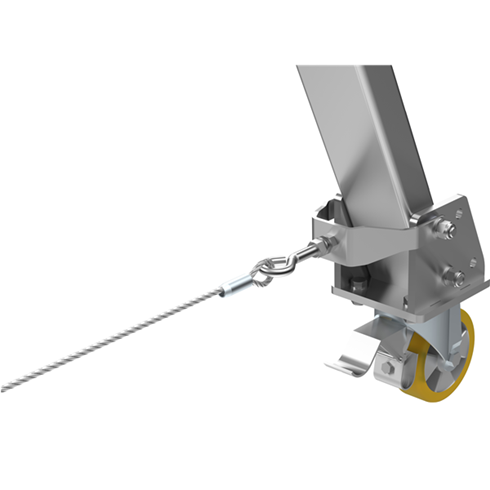

A-Frames are supplied with 160mm diameter 360° castors wih brake
Beam is supplied with External Trolley for lifting applications and hitch for raising the support
Beams are interchangeable which means longer or shorted beams can be added (always check the Instruction manual for WLL if the beam is changed over)
Can be used with manual Chainblock, Leverhoist, Electric Hoist or RUP502-T Lifting Winch
SWL: 2000kg
Support height: 2200-3600mm
Support height increment: 200mm
Beam length: 6mtrs
Working span: 4770mm
Bottom span:5496mm
Total weight of Gantry: 180.5kg
Fully certified and tested
Full range of additional products available such as Parking Jacks, extra Trolleys - please contact us for more details
